Date: 19.06.2020
Software used: Rhinoceros 6, Grasshopper
Task 1
Tools Used: Construct Point,Line,Divide Curve,Shortest list,Graft Tree.
This exercise was to understand the fundamentals of lists and graft tree in grasshopper. For this two lines were created and divided into two different segments. Then,the lines were created by joining points generated from segments.
Task 2
Tools Used: Rectangular Array,Area,Sphere,Volume,Move,Random,Integer,List Length,Sort item,List item.
The exercise was to understand the components Sort list and Random in grasshopper. For which spheres where created on points created using the Rectangular array. Then volume of spheres were resized using list length and random.

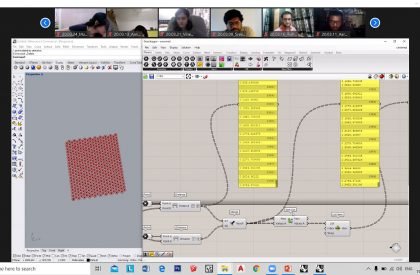

Task 3
Tools Used: Hexagonal,Point,Area, Flatten Tree,Pull point,Bounds,Remap numbers,Offset curves.
The exercise was continuation of previous day exercise on point attractor.In these two points were created unlike in previous case where it was done using one point.A hexagonal grid was created and offset was done.The outcome was the hexagon nearer to the points had less offset, wherein the offset of the hexagon was more if the distance between the points and the hexagon was more.
