Information

  • Project Name: Beton Brut
  • Practice: tHE gRID Architects
  • Products: Saint Globin , Tata Steel , Astral Pipes , Greenhouse Kitchen , L&T , Mitsubishi , Shailja , Techtona Grandis
  • Completion year: 2022
  • Gross Built up Area: 11559 sqft
  • Project Location: Ahmedabad
  • Country: India
  • Photo Credits: Photographix | Sebastian
More Info Less Info

Excerpt: Beton Brut is a residence designed by an architectural firm tHE gRID Architects. The idea was to design so that CONCRETE has an impact. The mysterious and alluring visual of an Indian woman protecting her head and face from the sun with the graceful folds of her pallu or odhani became a compelling inspiration for creating a home sheltered from harsh climatic elements. The beauty of this approach was its unification of two very different concepts: a brutalist expression seeded in an emotive inspiration.

Project Description

[Text as submitted by architect]

A JOURNEY OF BRUTALISM IN CONGRUENCE WITH INDIANNESS.

The idea was to design so that CONCRETE has an impact. This project involved creating a simple, functional home for a small entrepreneurial family with an appreciable creative streak. The client runs a thriving business but is also an enthusiastic poet, while his son is an avid wildlife photographer.

Beton Brut | tHE gRID Architects
© Photographix | Sebastian

The intent
The home had to be built on an approximately 12,000-sq-ft, southwest-facing plot. The primary concern was to ensure a structure protected from the harsh sunlight and heat. This became entwined with the desire to create an abode that revelled in the sense of space — a home that brought the family together but left enough space for the individual personalities to thrive and bloom.

Beton Brut | tHE gRID Architects
© Photographix | Sebastian

This meant we had to ensure places of congregation and places of solitude in the spatial narrative. Additionally, we endeavoured to pair enclosed volumes with open areas to amplify this sense of freedom and luxury. We also proposed that the home would mesh the intangible with the tangible, creating diverse experiences within its physical form.

Beton Brut | tHE gRID Architects
© Photographix | Sebastian

The central idea

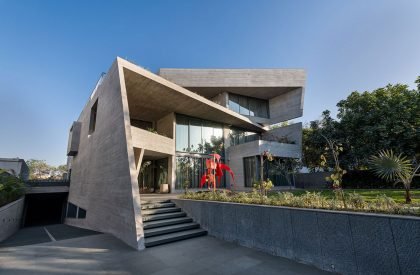

The mysterious and alluring visual of an Indian woman protecting her head and face from the sun with the graceful folds of her pallu or odhani became a compelling inspiration for creating a home sheltered from harsh climatic elements. With the decision to create a pure structure that respected the honesty of materiality, the architectural path was determined as a brutalist one, typified by bare concrete, geometric shapes, a monochrome palette and a monolithic appearance.

Beton Brut | tHE gRID Architects
© Photographix | Sebastian

The beauty of this approach was its unification of two very different concepts: a brutalist expression seeded in an emotive inspiration. We decided to continue this abstract of a traditional image by infusing the interiors with Indian elements as soft touches. Incorporating ‘brutal’ in social housing ideals and traditional Indian typologies result in, what we call, neo-brutalism. While raw concrete in French may appear strong and assertive, Beton Brut possesses a soft, emotive heart.

Beton Brut | tHE gRID Architects
© Photographix | Sebastian

The architectural form

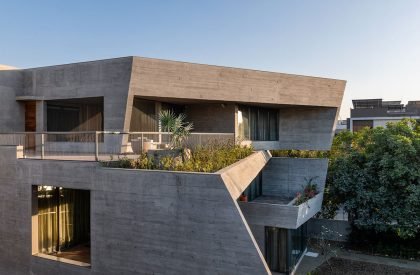

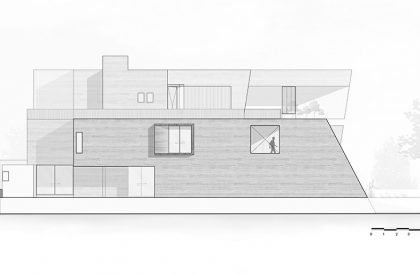

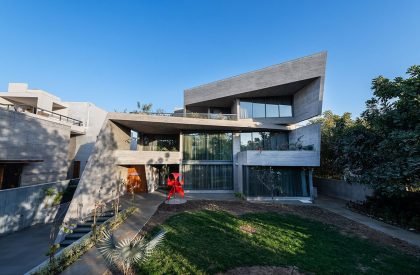

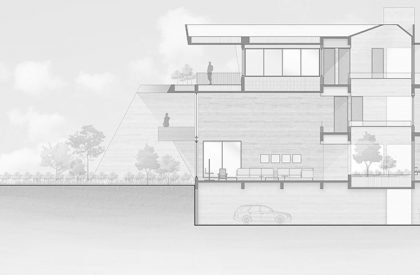

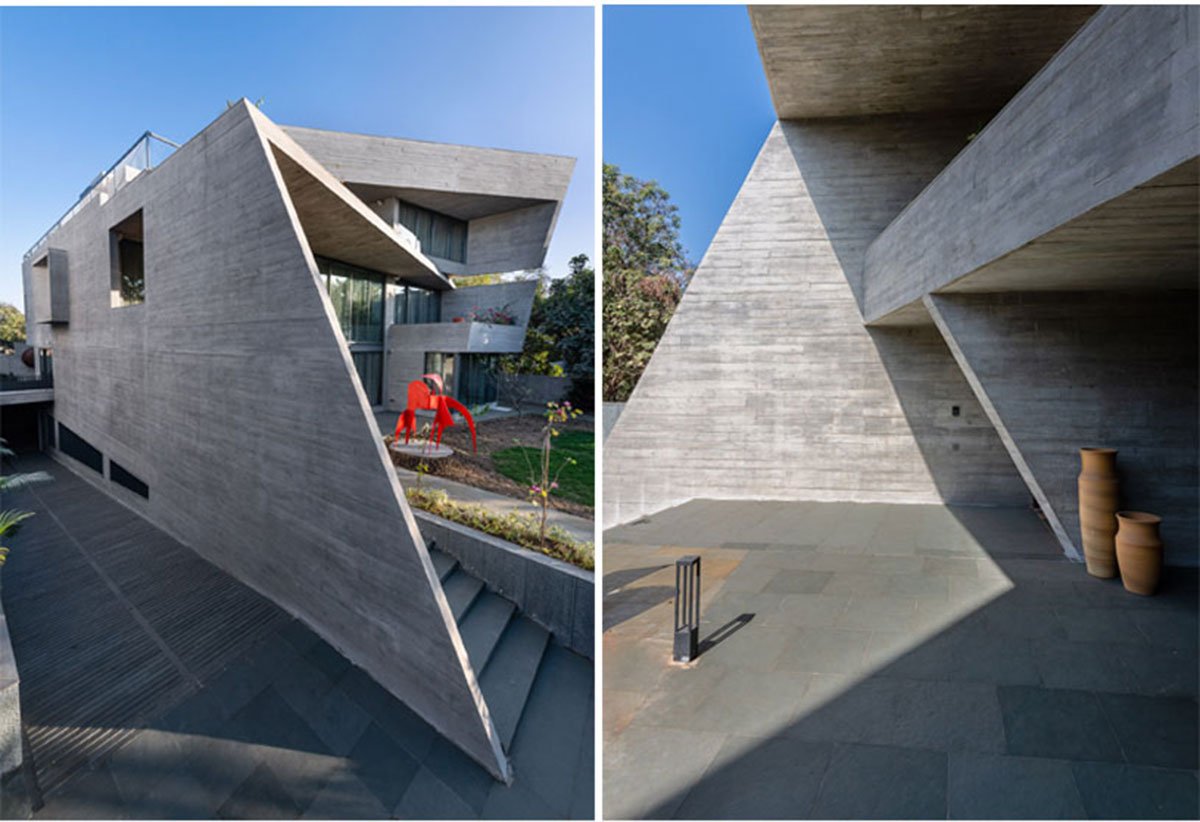

Since the plot faces southwest, the garden was placed on the west. Once the floor plan was frozen, the challenge was to control the sunlight coming in from the southwest. Architecturally, this concept was proven by studying the sun’s path. Additionally, the architectural envelope at this point looked too bulky and disproportionate to the scale of the home. We sliced and staggered the rectangular box and strategically ‘erased’ the bottom portion of the resultant cantilevered portion to derive the canopy.

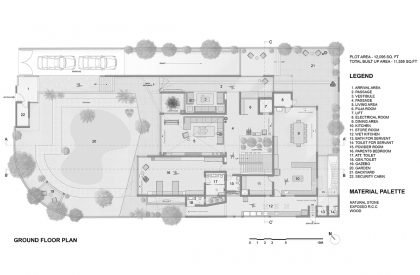

Beton Brut | tHE gRID Architects
© tHE gRID Architects

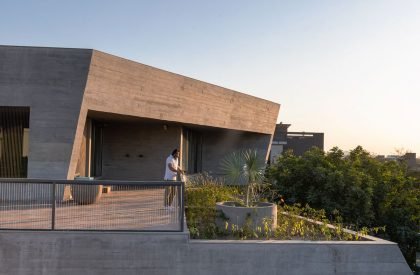

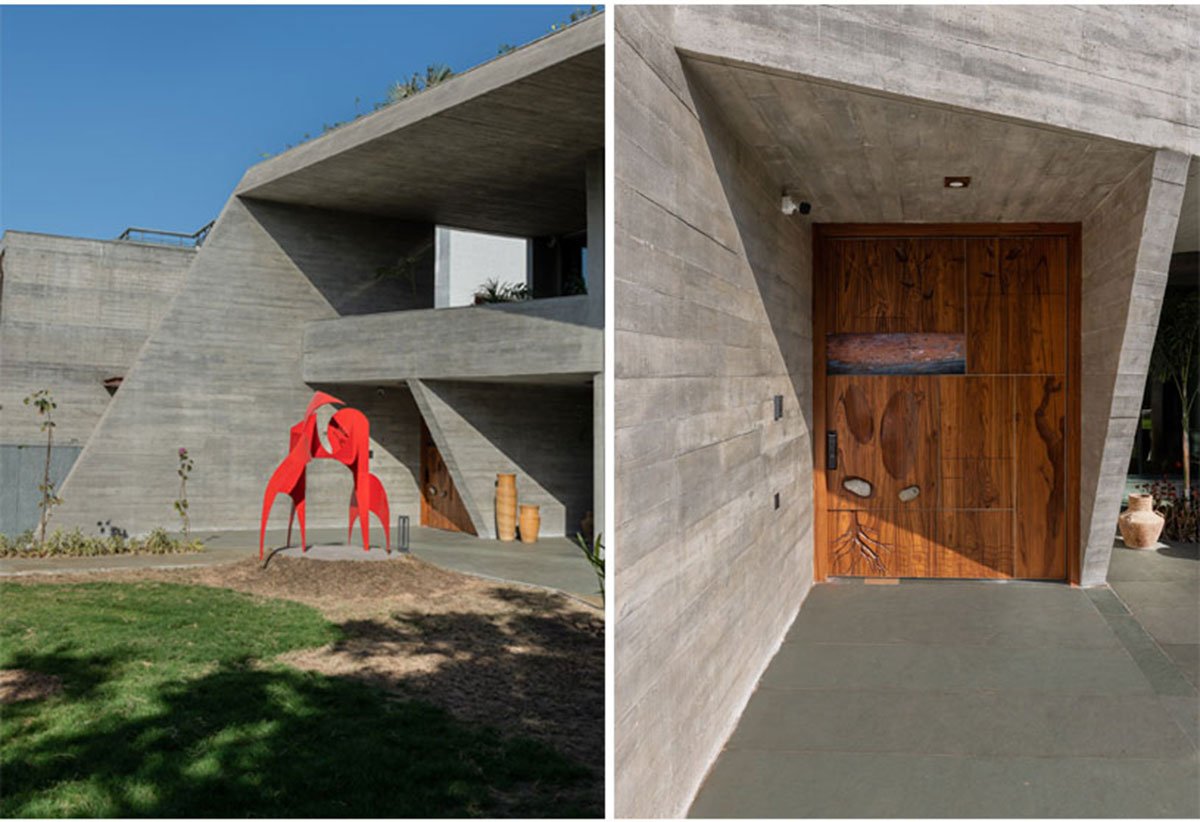

This resulted in a visually light, delicate structure with deep overhangs that protected the fenestration from the sunlight and walls from heat gain. The skewing also gave rise to three layers of cantilevers, with terraces sheltering under the canopy and pockets, big and small, that could be used for plantation. Consequently, now most of the enclosed spaces are attended by lush greenery.

Beton Brut | tHE gRID Architects
© Photographix | Sebastian

The interior narrative

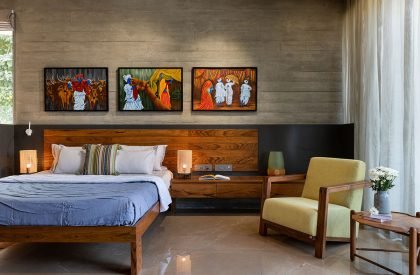

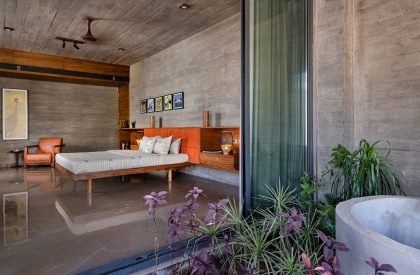

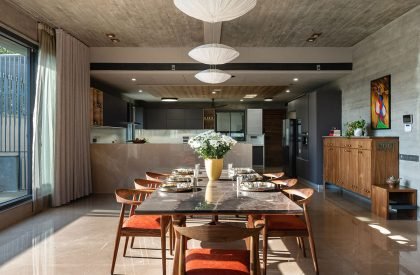

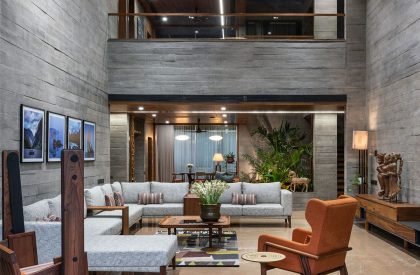

Take a turn, and the whole inner sanctum unfolds within visual distance of the central landscaped court: the formal living room, the dining area, and the bedroom of the senior couple. All living spaces are connected to the staggered terraces or gardens, putting the occupants in constant touch with the outside. The aesthetic articulation is liberally peppered with Indian elements, softening the gravitas of the concrete envelope.

Beton Brut | tHE gRID Architects
© Photographix | Sebastian

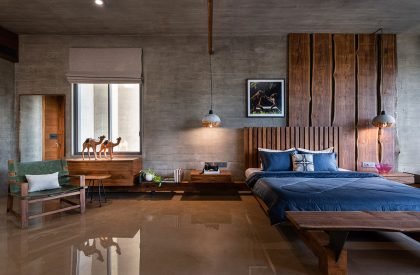

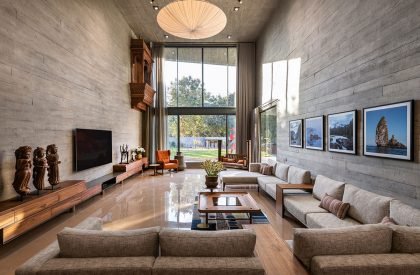

Reclaimed panels and brackets from old Havelis, mandapas, old vessels, and carved panels which depict gods and installations showing hand mudras pour an Indian essence into the home. The most shining example is the jharokha mounted on a soaring living room wall, through which you can glimpse the room from the first floor. The simple, clean-lined furniture does not disturb the architecture yet is very functional and comfortable.

Beton Brut | tHE gRID Architects
© Photographix | Sebastian

The material palette

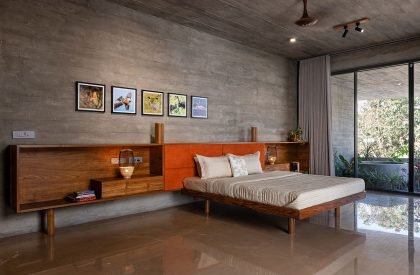

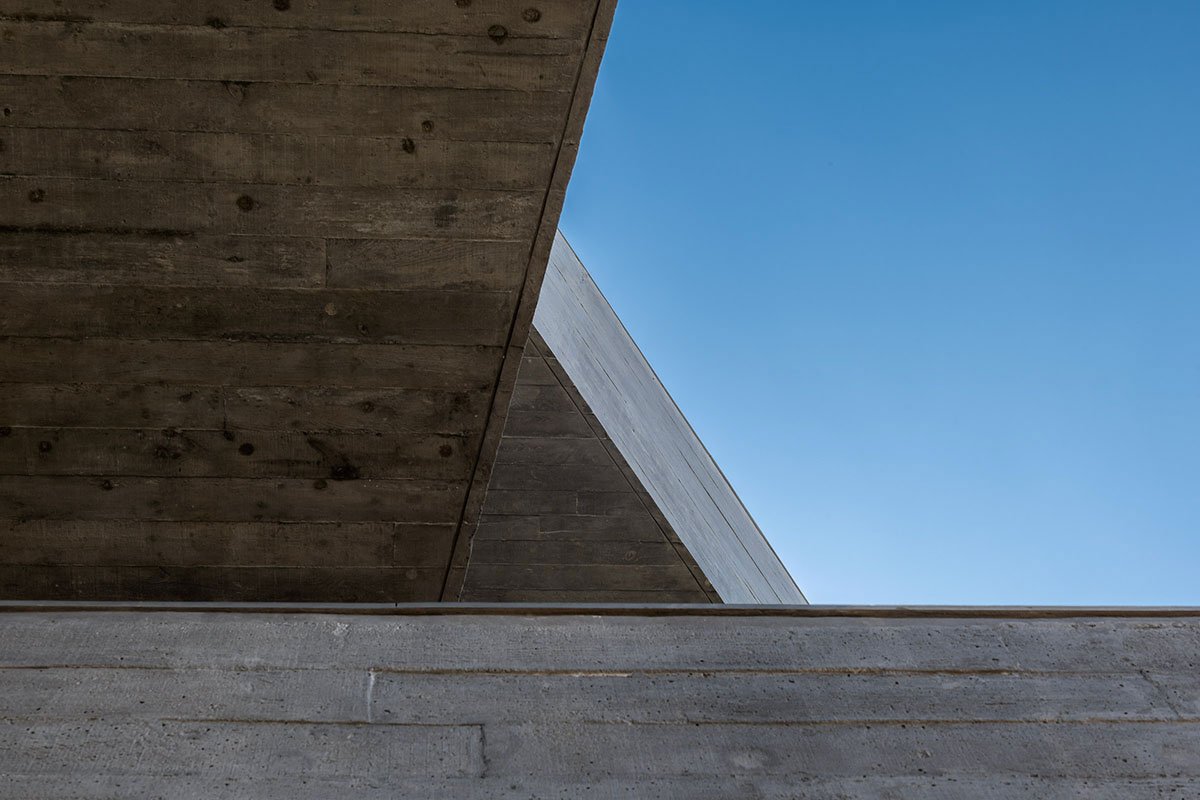

The selection is ruled by the honesty and purity that allows the beauty of each material to shine through, unhindered by decorative overlays. Grey concrete, the singular and central material, stars in the architectural and interior narratives. These grey expanses are beautifully textured by timber imprints of the shuttering used to cast the slabs and walls. In the interiors, the building material is joined by sandstone, Kota stone, sunlight, and teakwood (for furniture) to create a beautifully poised environment between simplicity and richness.

Beton Brut | tHE gRID Architects
© Photographix | Sebastian

Light as a design tool

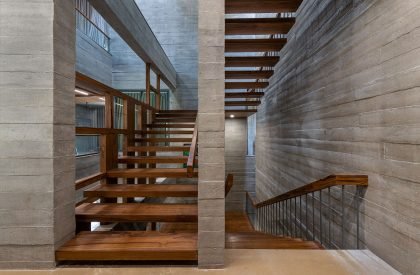

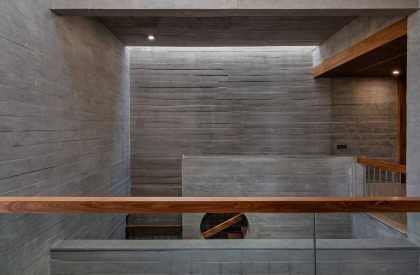

The importance of light to architecture cannot be stressed enough. It also adds a unique aesthetic dimension to a space. In this case, too, we ensured that the home was awash with light by creating a central volume — comprising a landscaped court and the stairwell — crowned by not one skylight but two. The second is a faceted structure with a cut-out that pours glare-free light into the stairwell and the green court below. Besides this, extensively glazed fenestration throughout the house means that the interior spaces are suffused with the beneficence of sunlight throughout the day.

Beton Brut | tHE gRID Architects
© Photographix | Sebastian

The plantation

Beton Brut fully leverages the animating freshness of plants both externally and internally. Keeping in mind the region’s largely arid climate, we have put in drought-friendly plants on the terraces as they face southwest. The indoor plants have been selected to maintain the moisture level in the interiors. Beton Brut makes a definite visual statement depicting purity of form and intent. Its narrative builds a relationship between the house and the city, man, and nature — without which architecture is meaningless.

Beton Brut | tHE gRID Architects
© Photographix | Sebastian
Beton Brut | tHE gRID Architects
© Photographix | Sebastian
