Guha | Realrich Architecture Workshop

Save

Information

  • Project Name: Guha
  • Completion year: 2020
  • Gross Built up Area: 600 sqm
  • Project Location: Taman Villa Meruya, Tangerang, Indonesia
  • Country: Indonesia
  • Lead Architects/Designer: Realrich Sjarief
  • Design Team: Amud, Mohammad Enoh, Alifian Kharisma, Miftahuddin Nurdayat, Septrio Effendi, Fakhriyah Khairunnida, Vivi Yani Santosa, Tirta Budiman, Aqidon Noor Khafid, Amirul Farras , Others (if it’s has not been mentioned).
  • Clients: Realrich Sjarief + Laurensia Yudith
  • Engineering: Singgih Suryanto, Sudjatmiko, Endang Syamsuddin, Eddy Bahtiar, Yudi Atang, Sakum,
  • Landscape Consultants: Realrich Architecture Workshop
  • Photo Credits: Eric Dinardi, Ernest Theofilus
More Info Less Info

Project Description

(Text as submitted by the Architect)

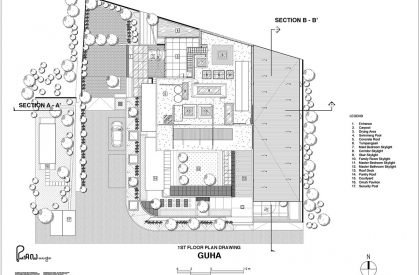

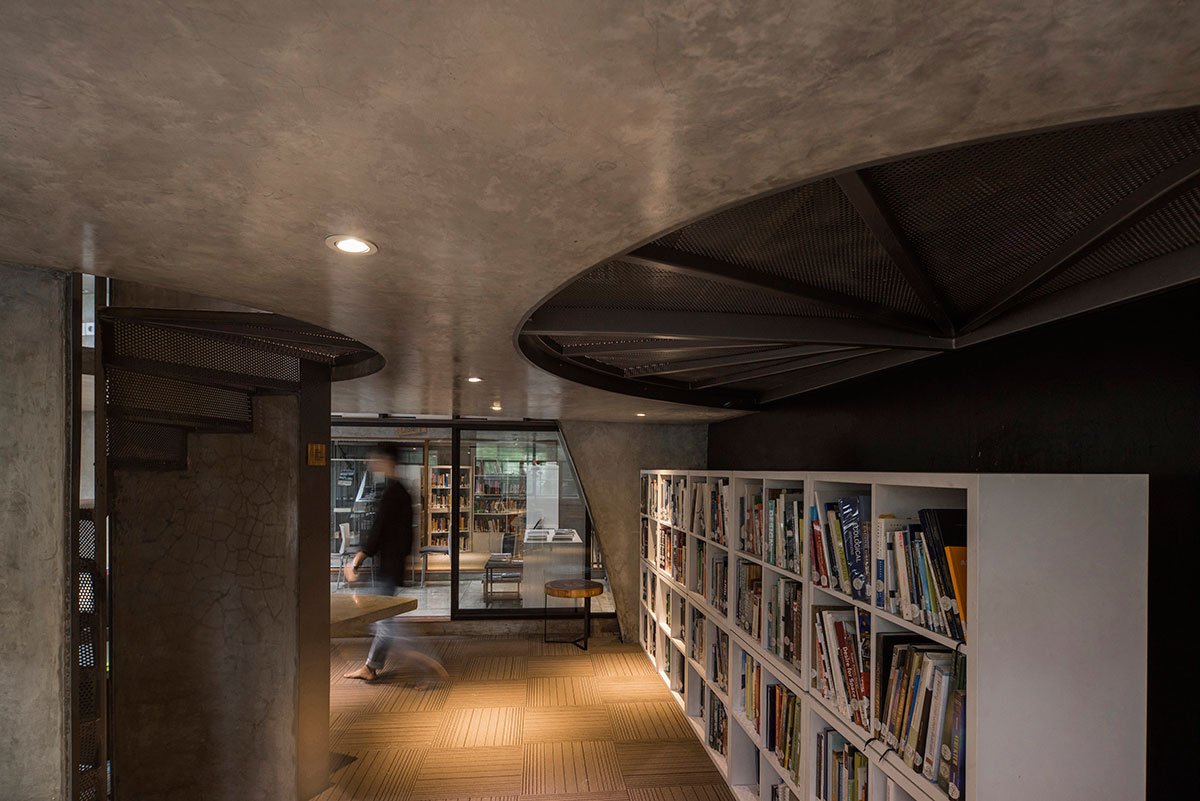

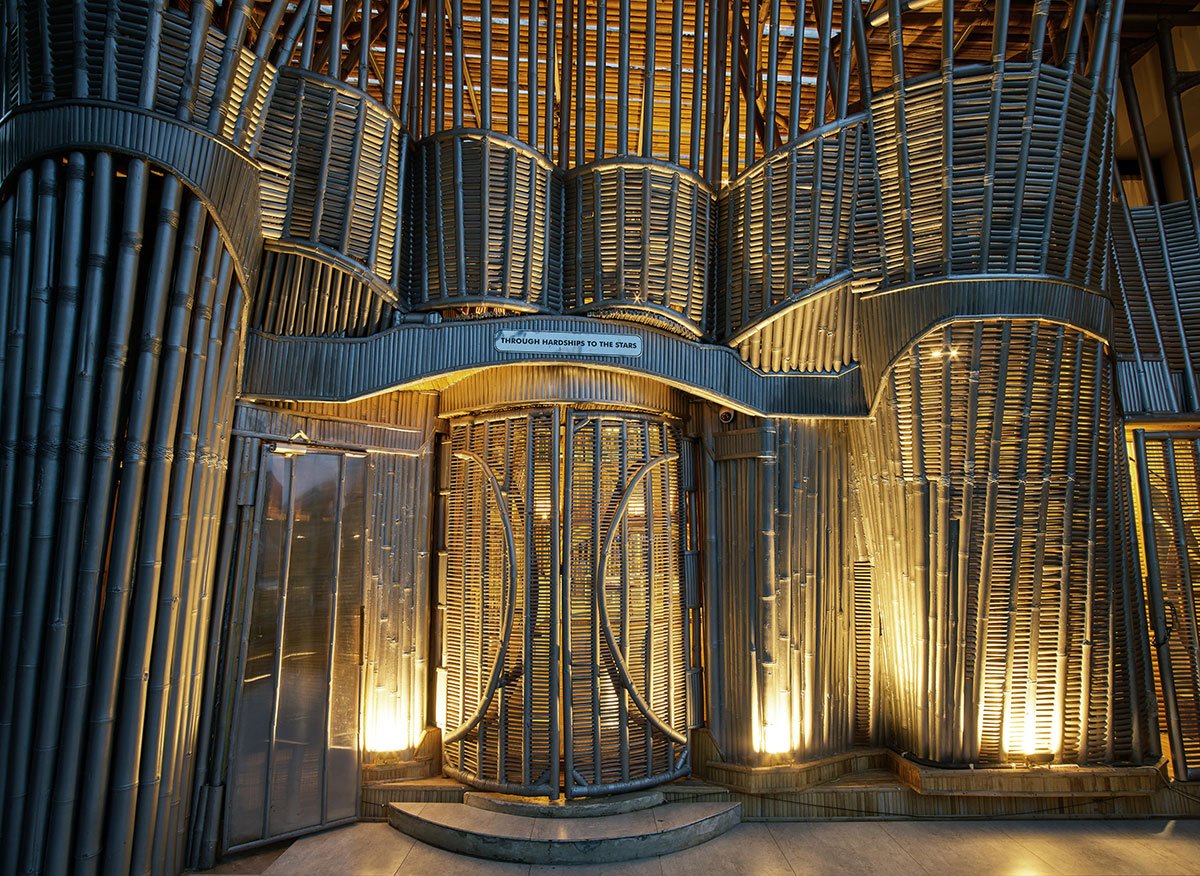

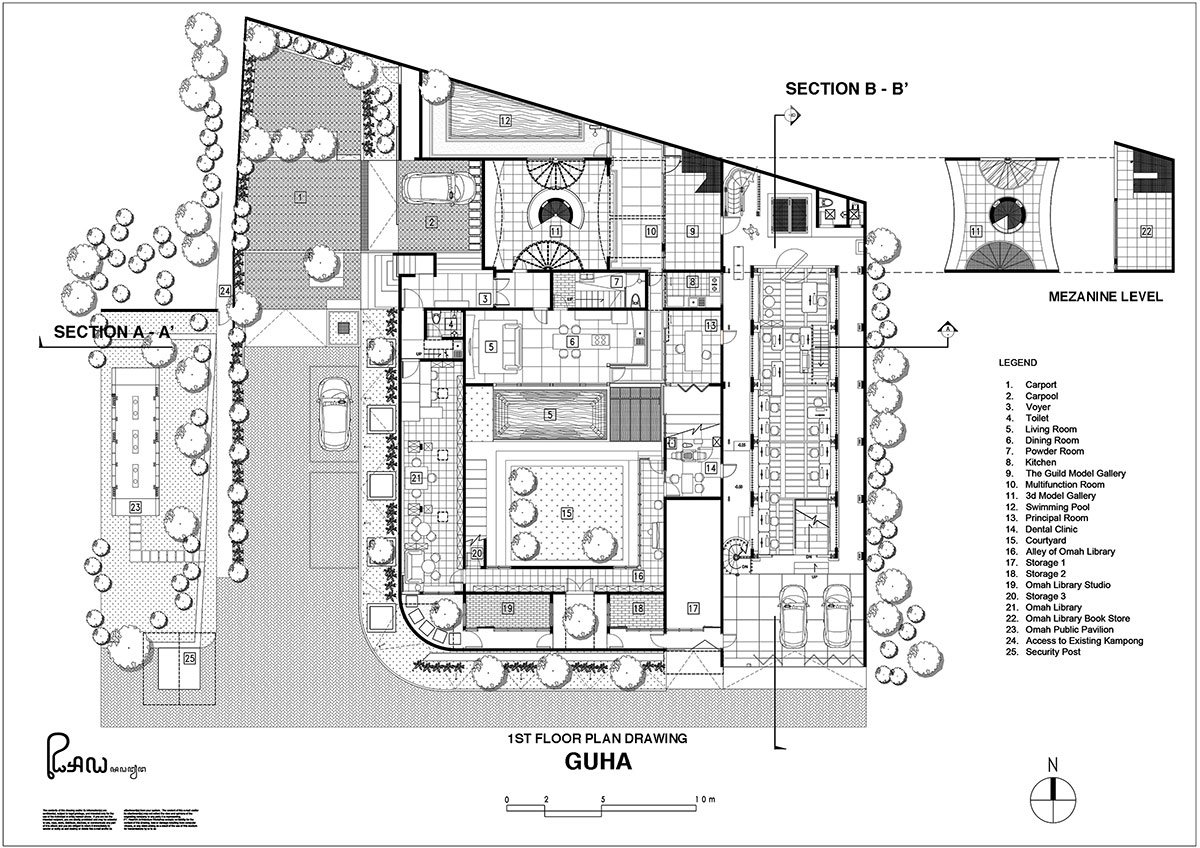

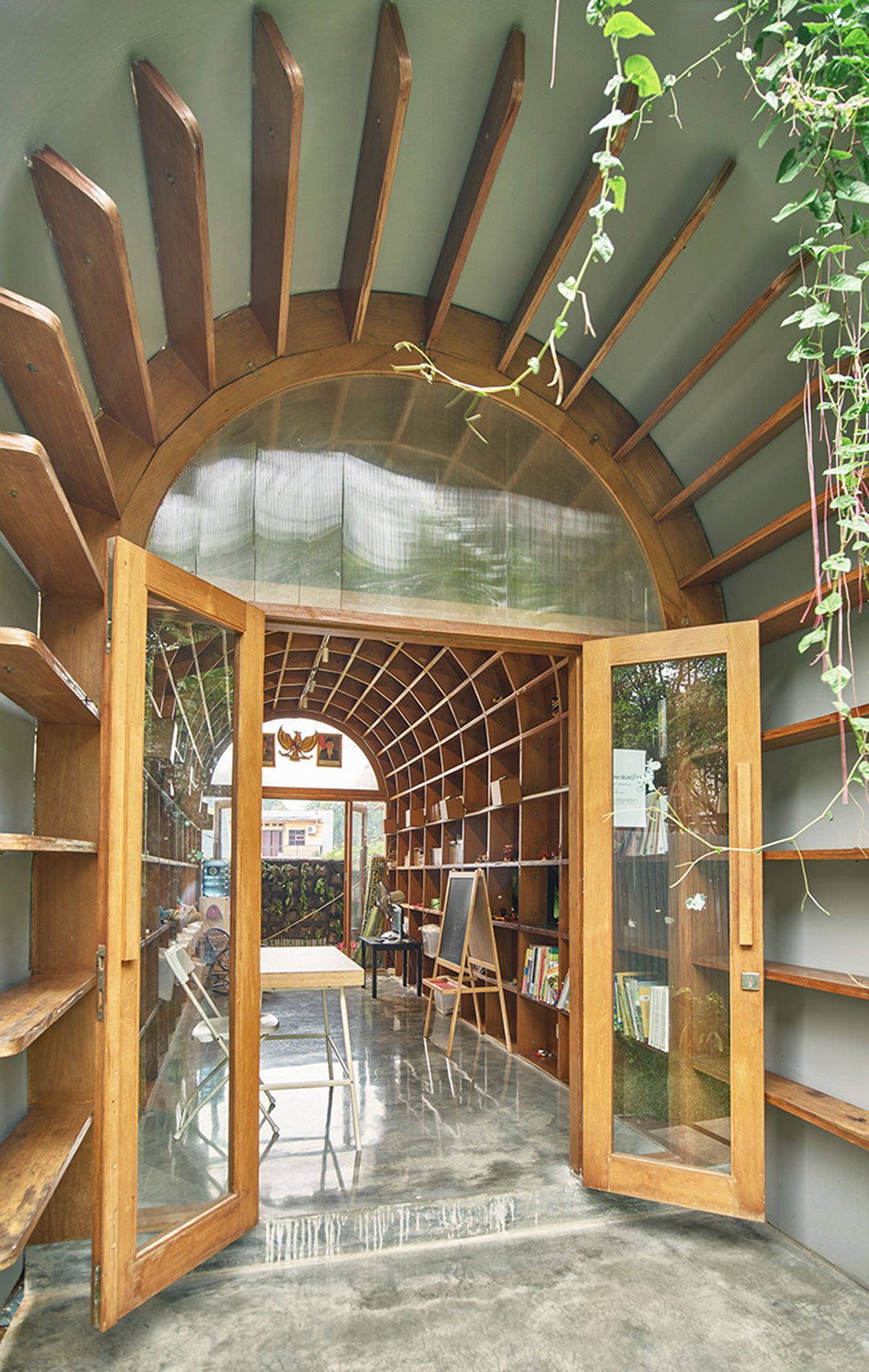

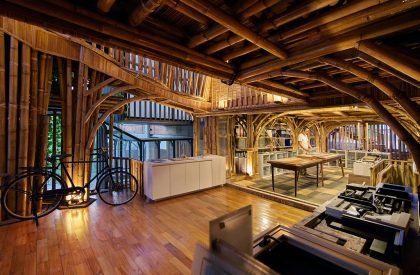

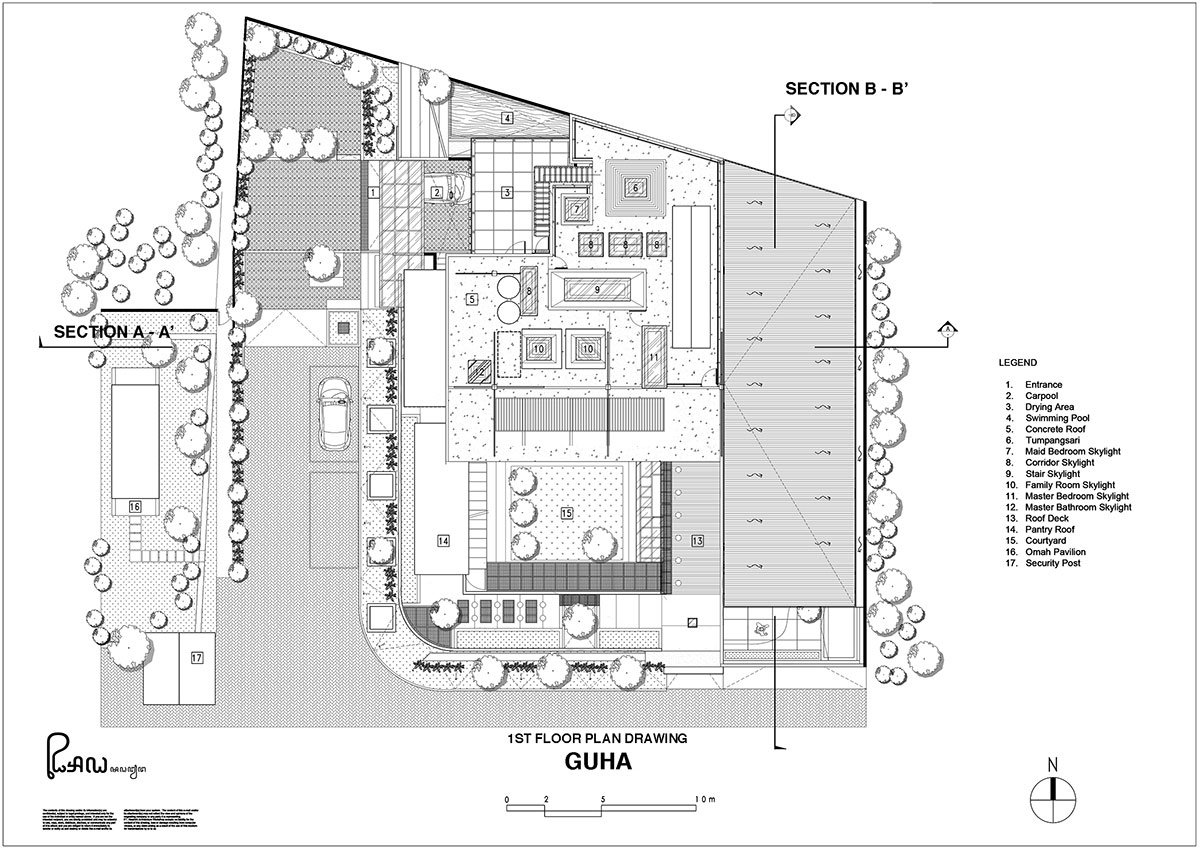

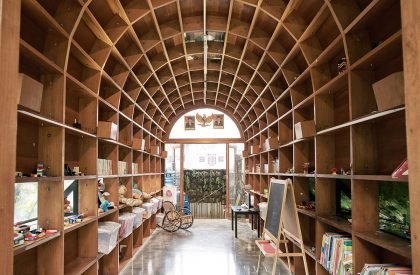

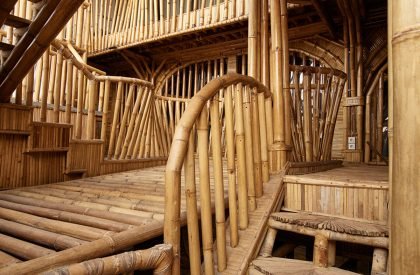

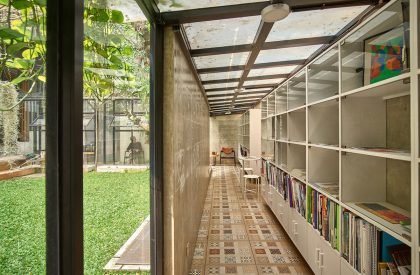

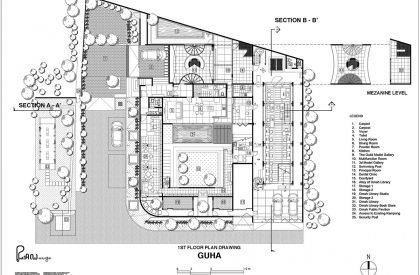

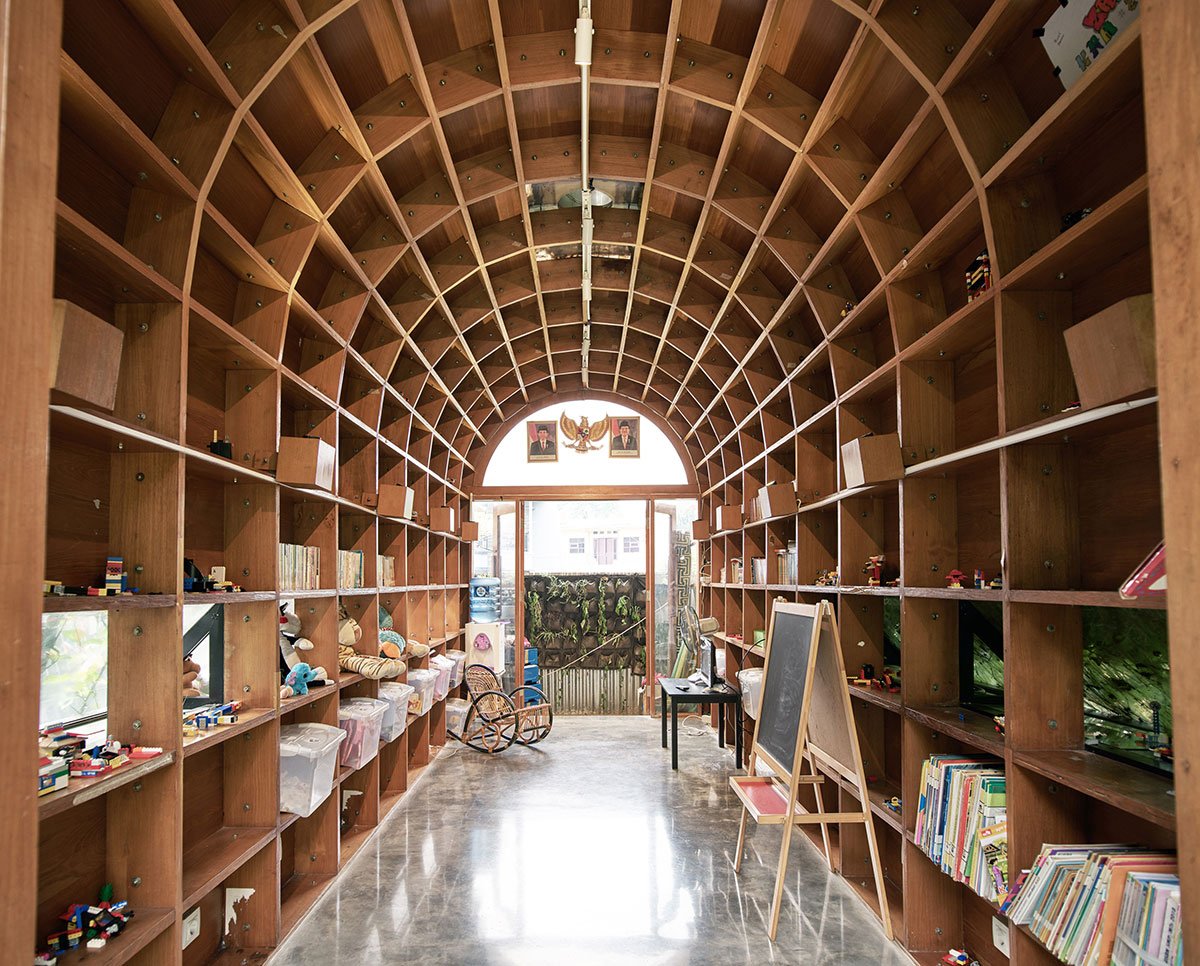

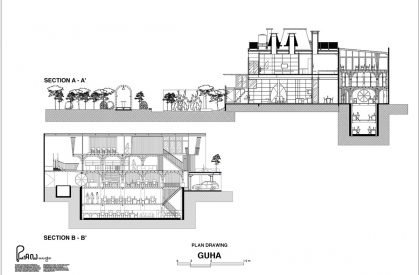

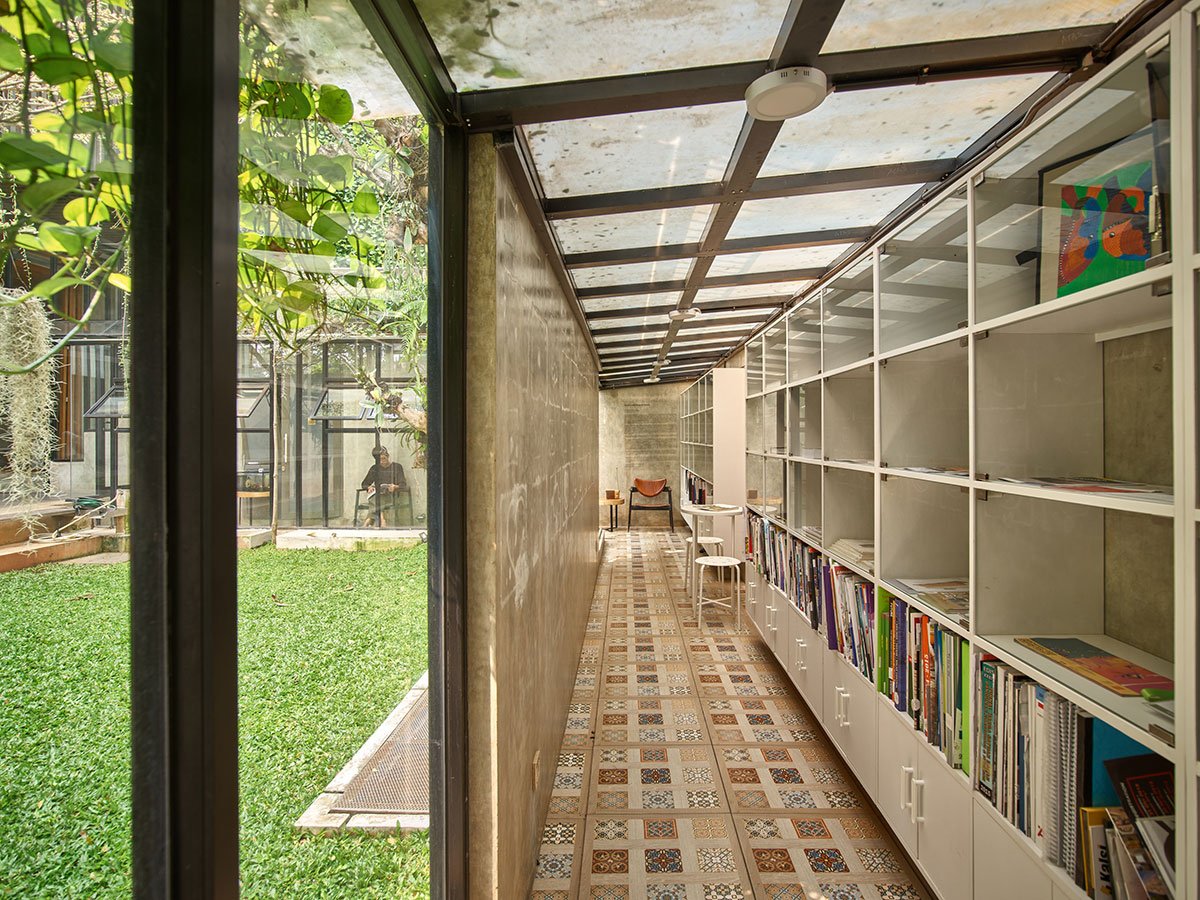

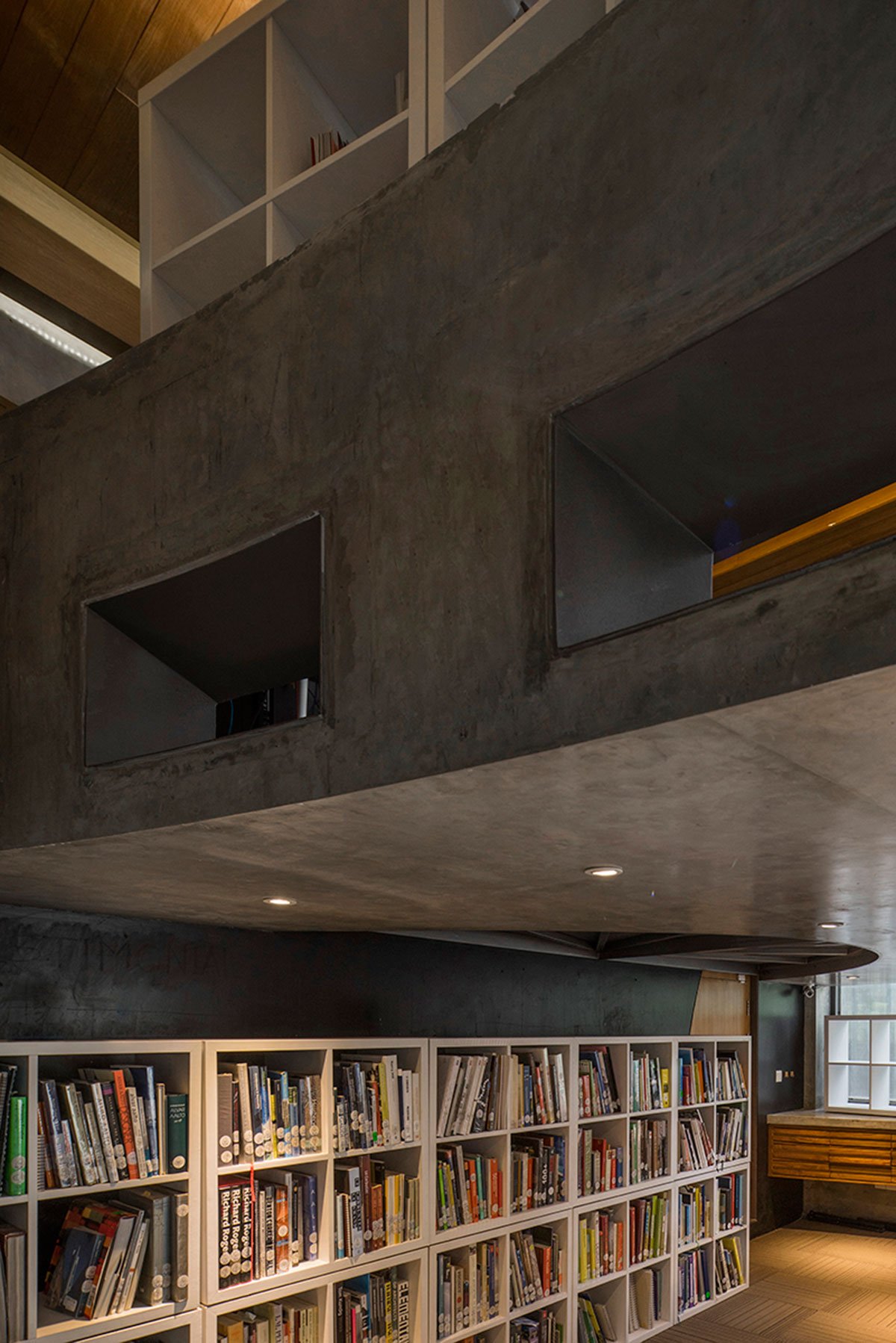

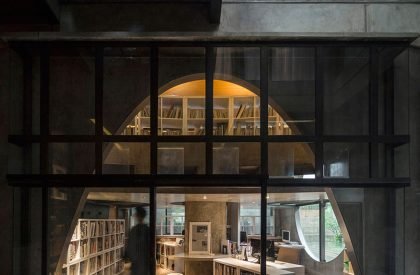

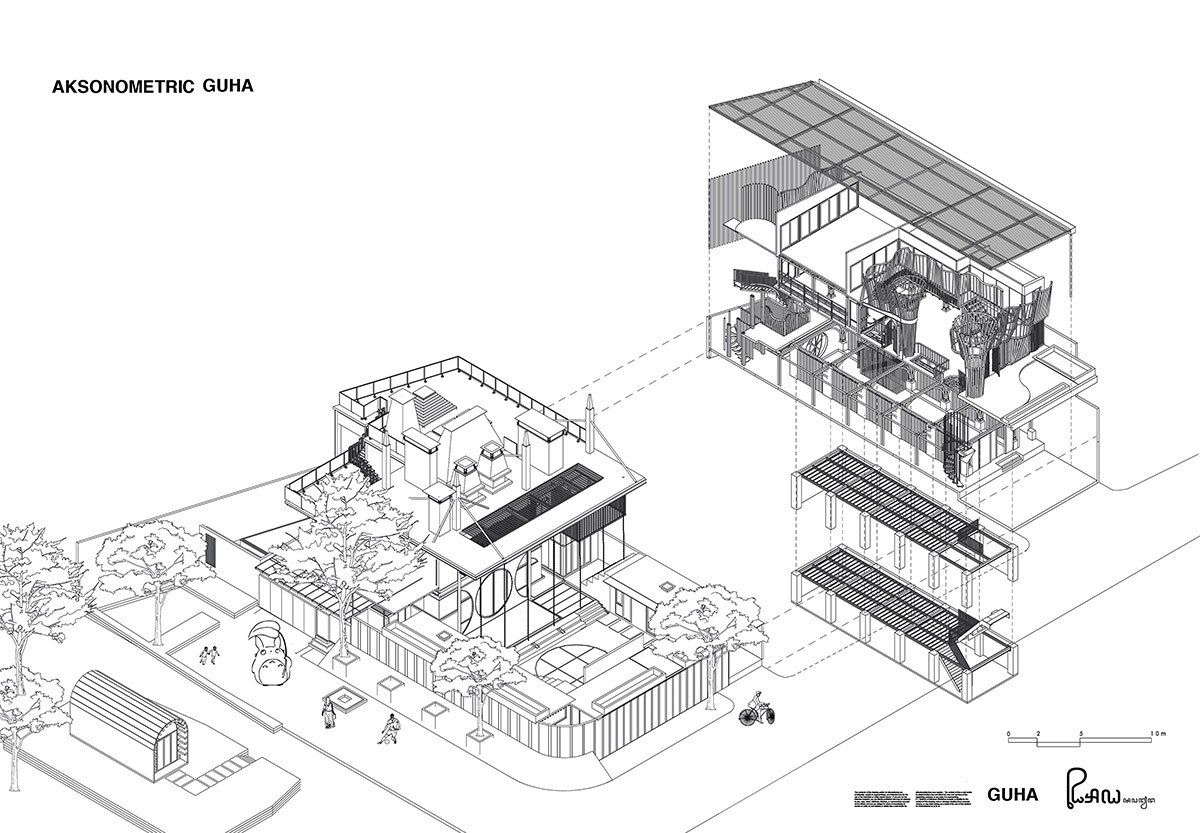

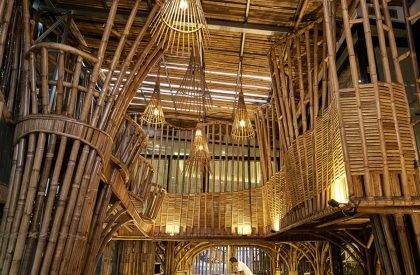

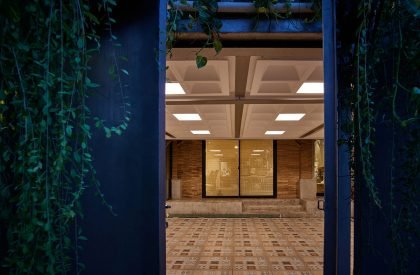

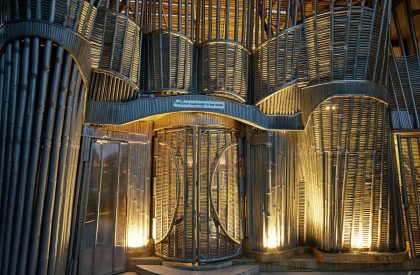

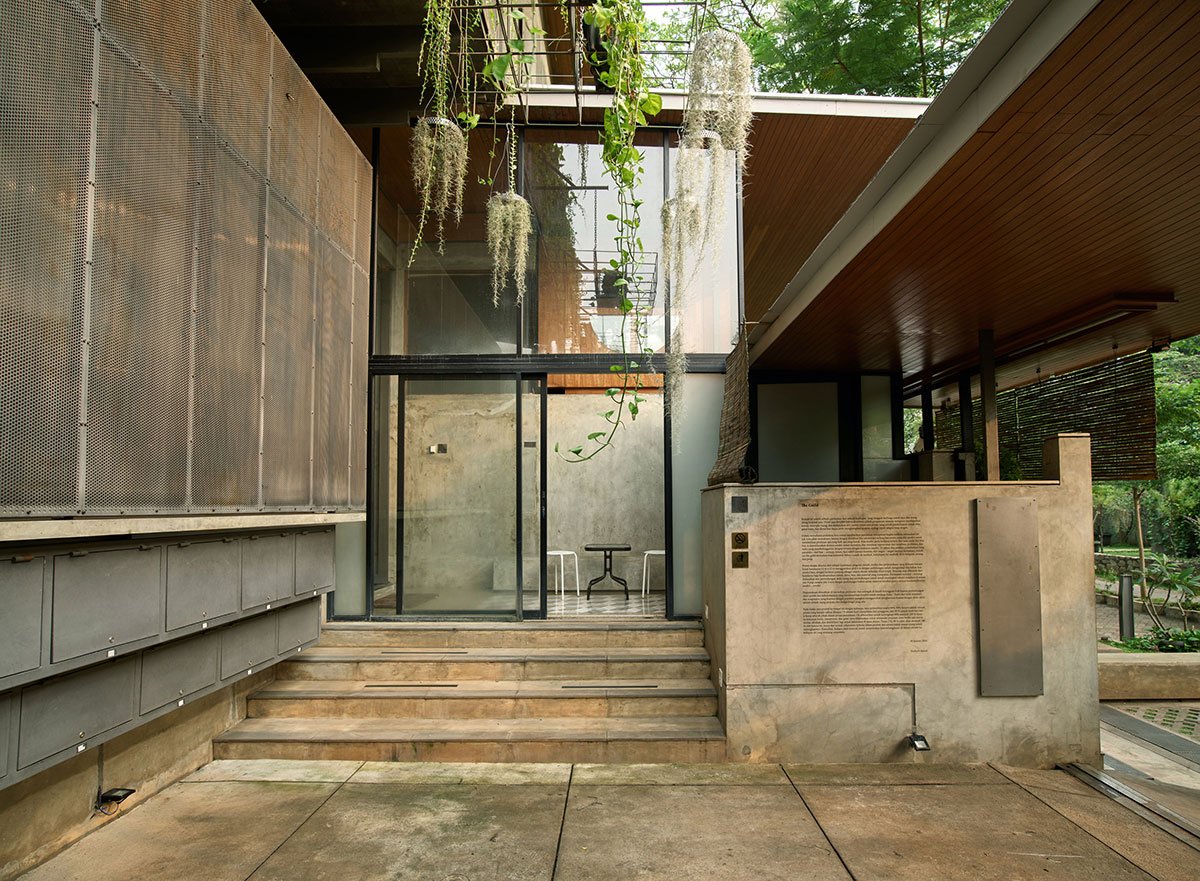

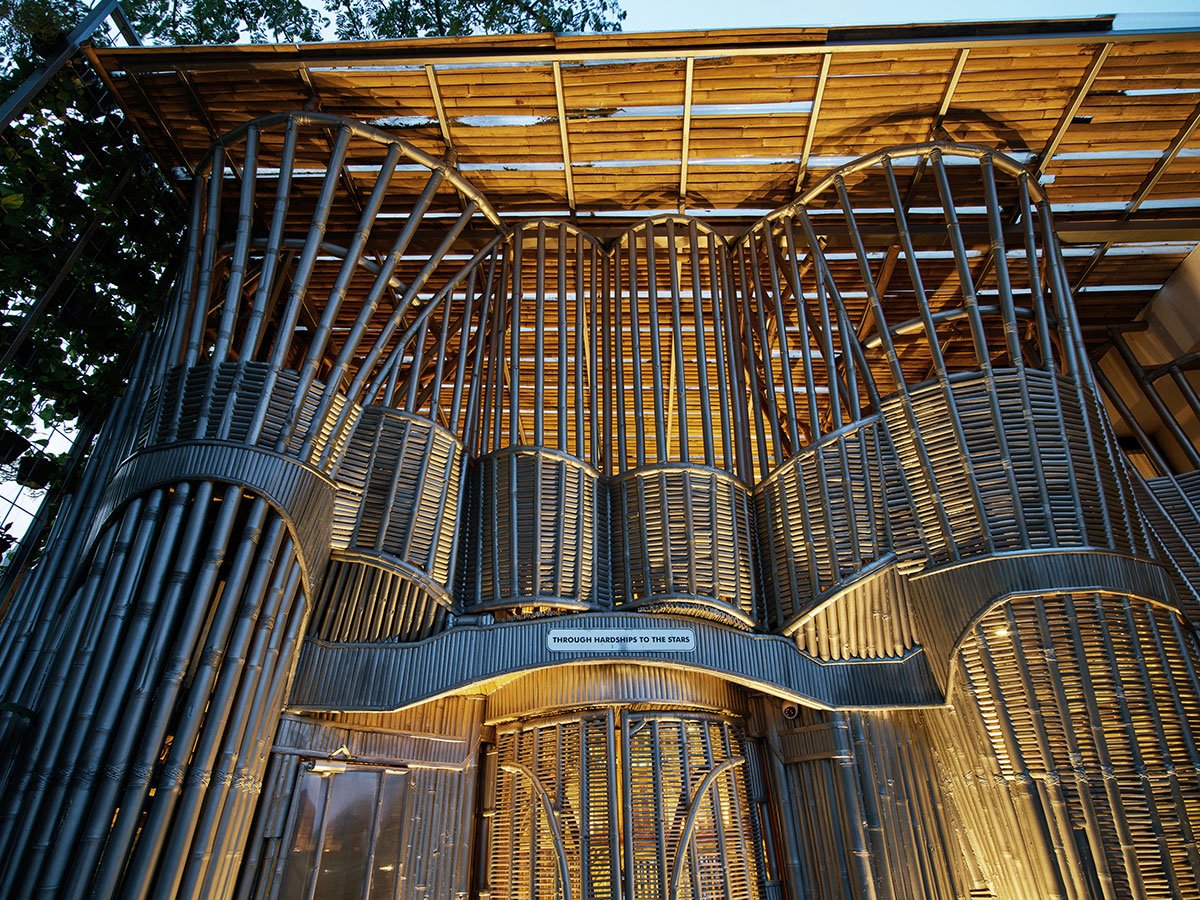

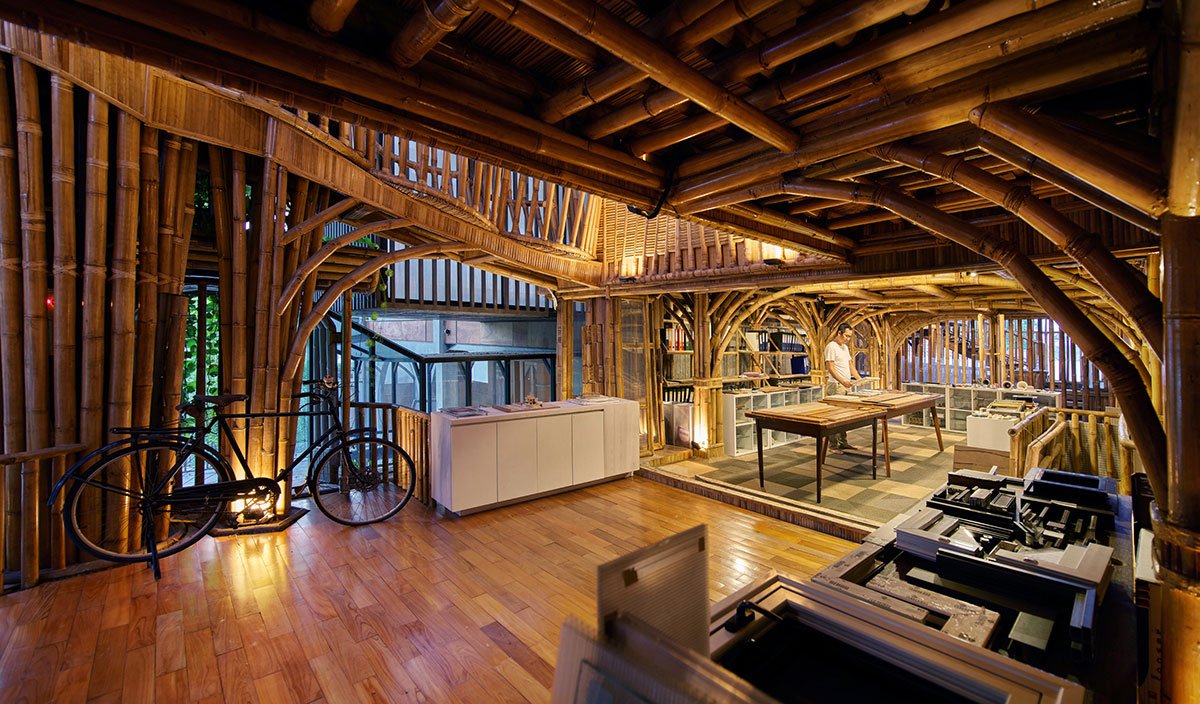

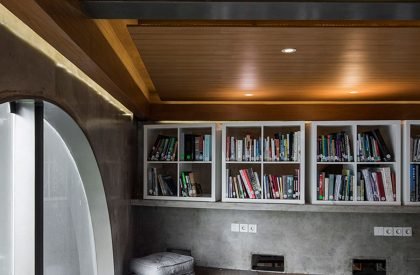

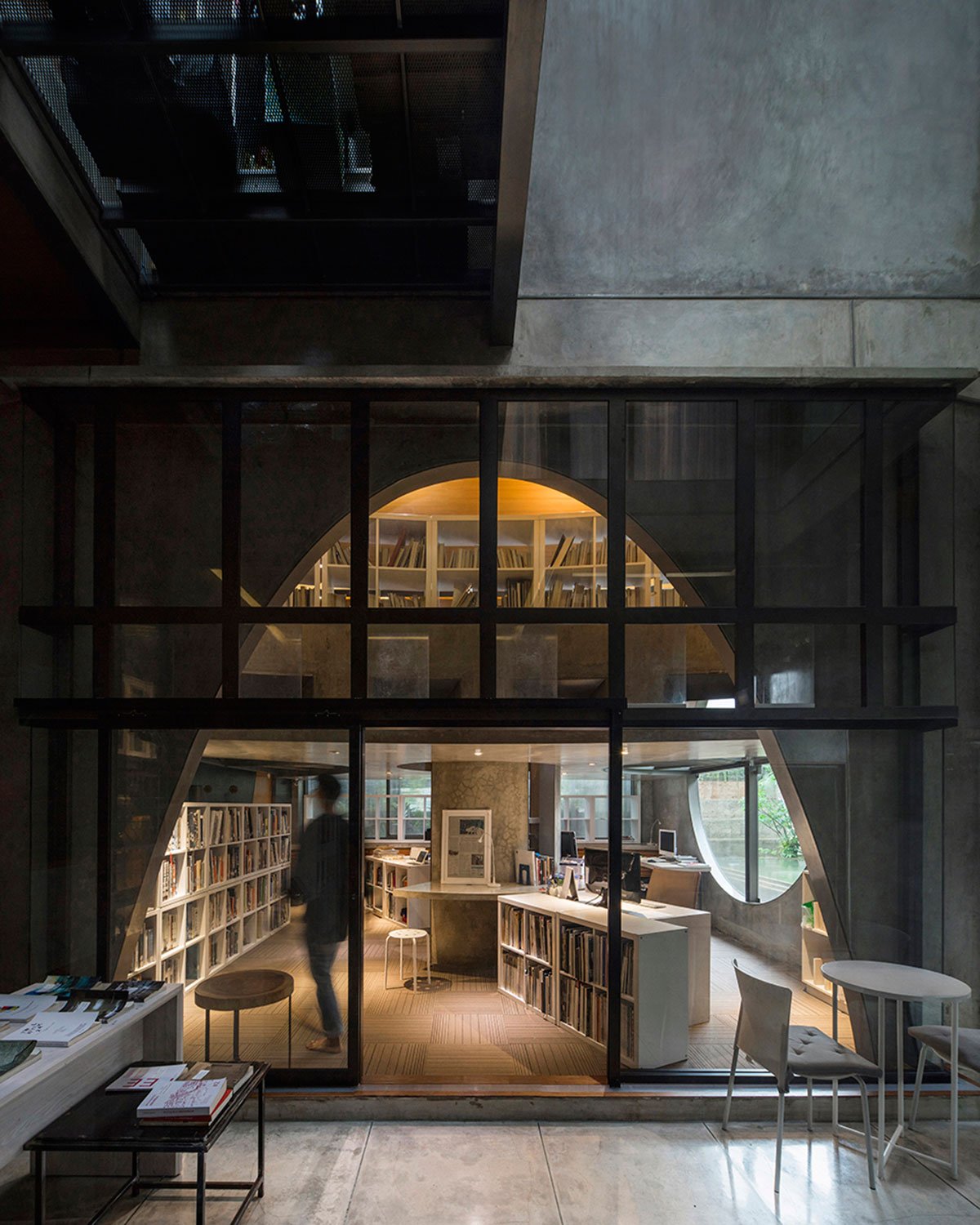

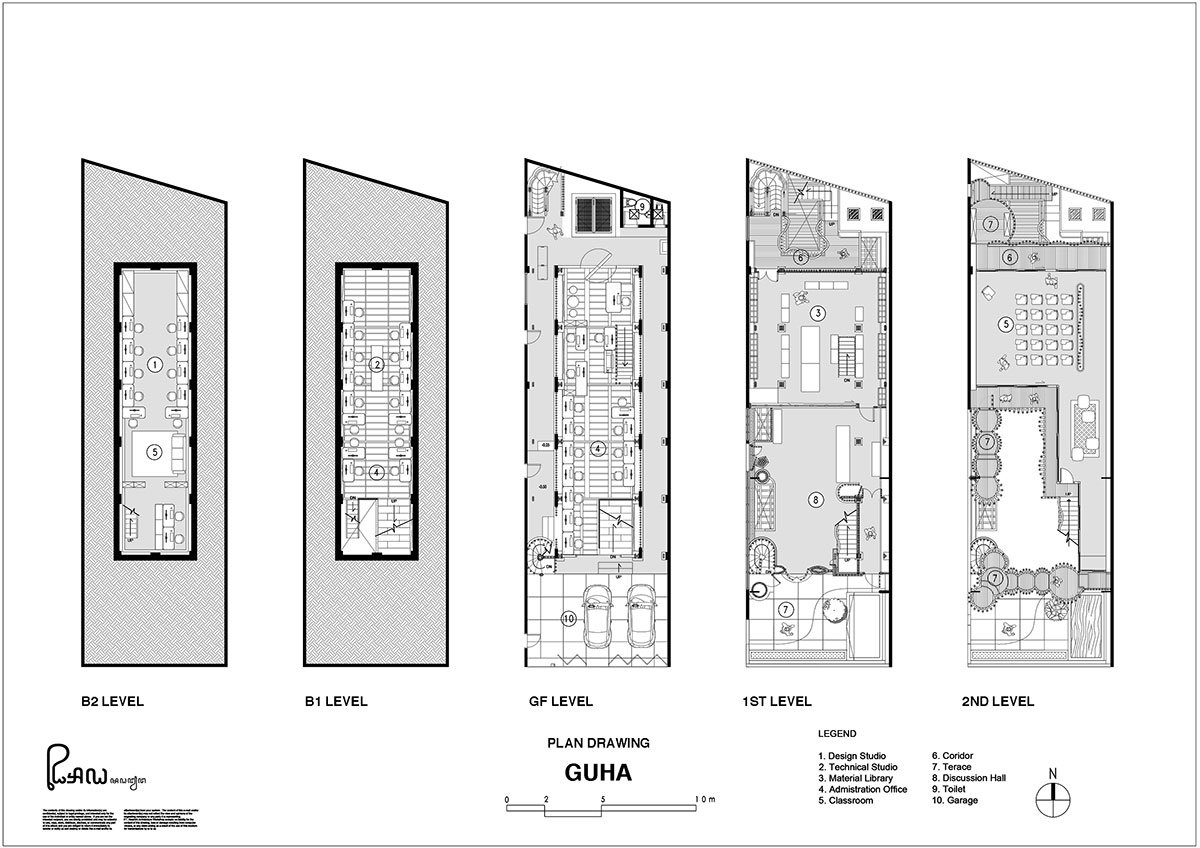

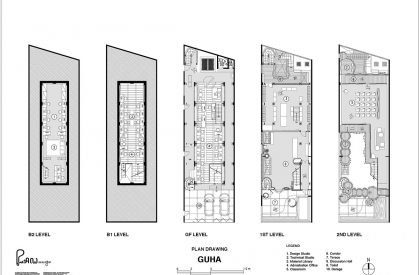

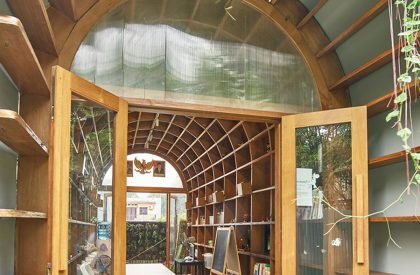

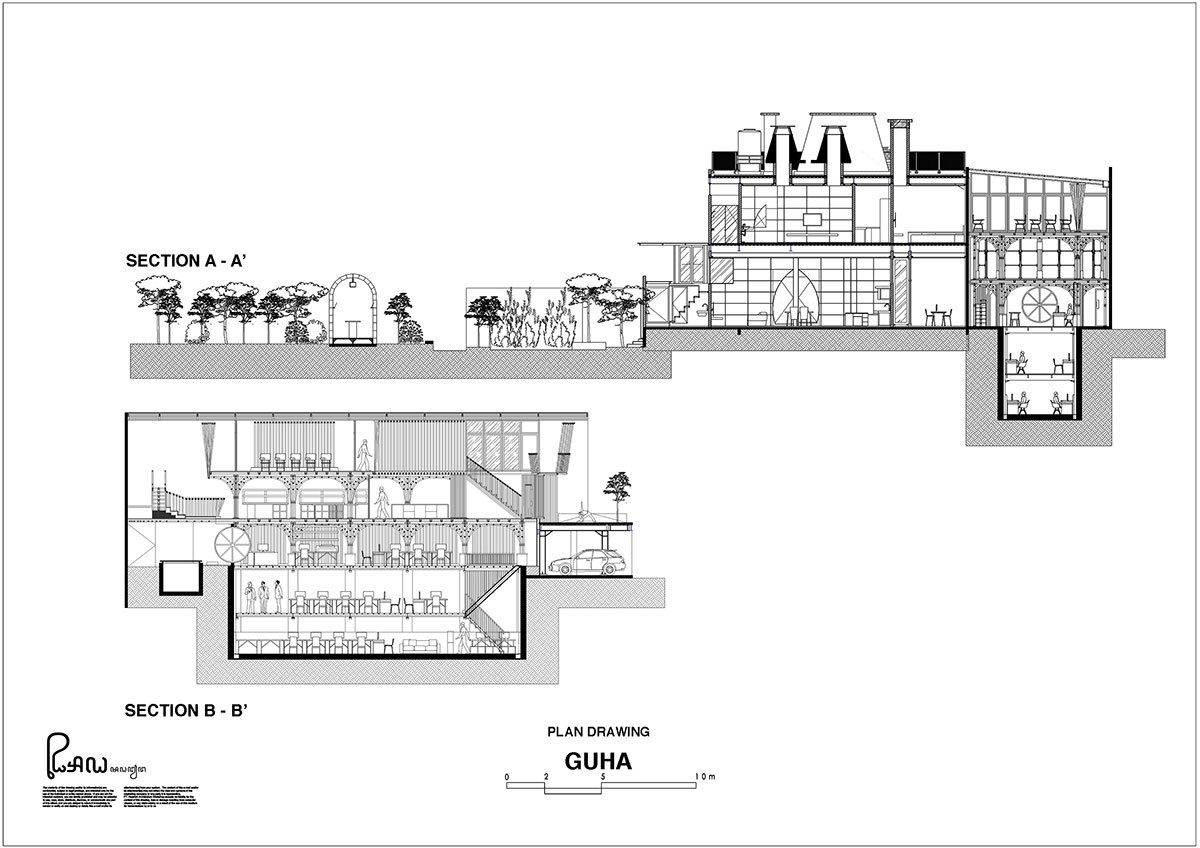

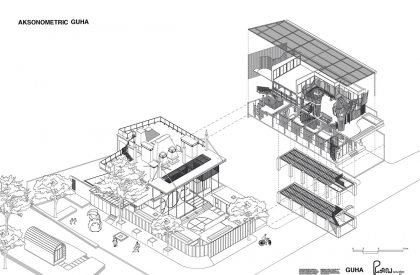

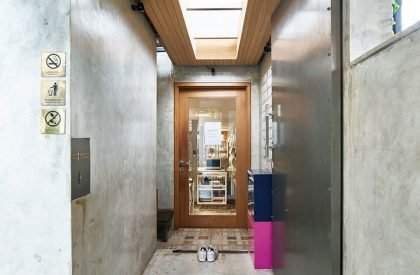

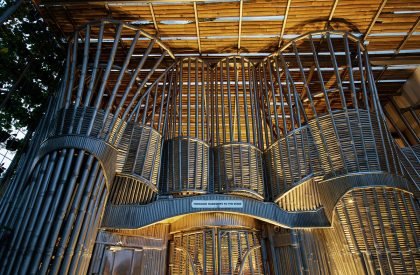

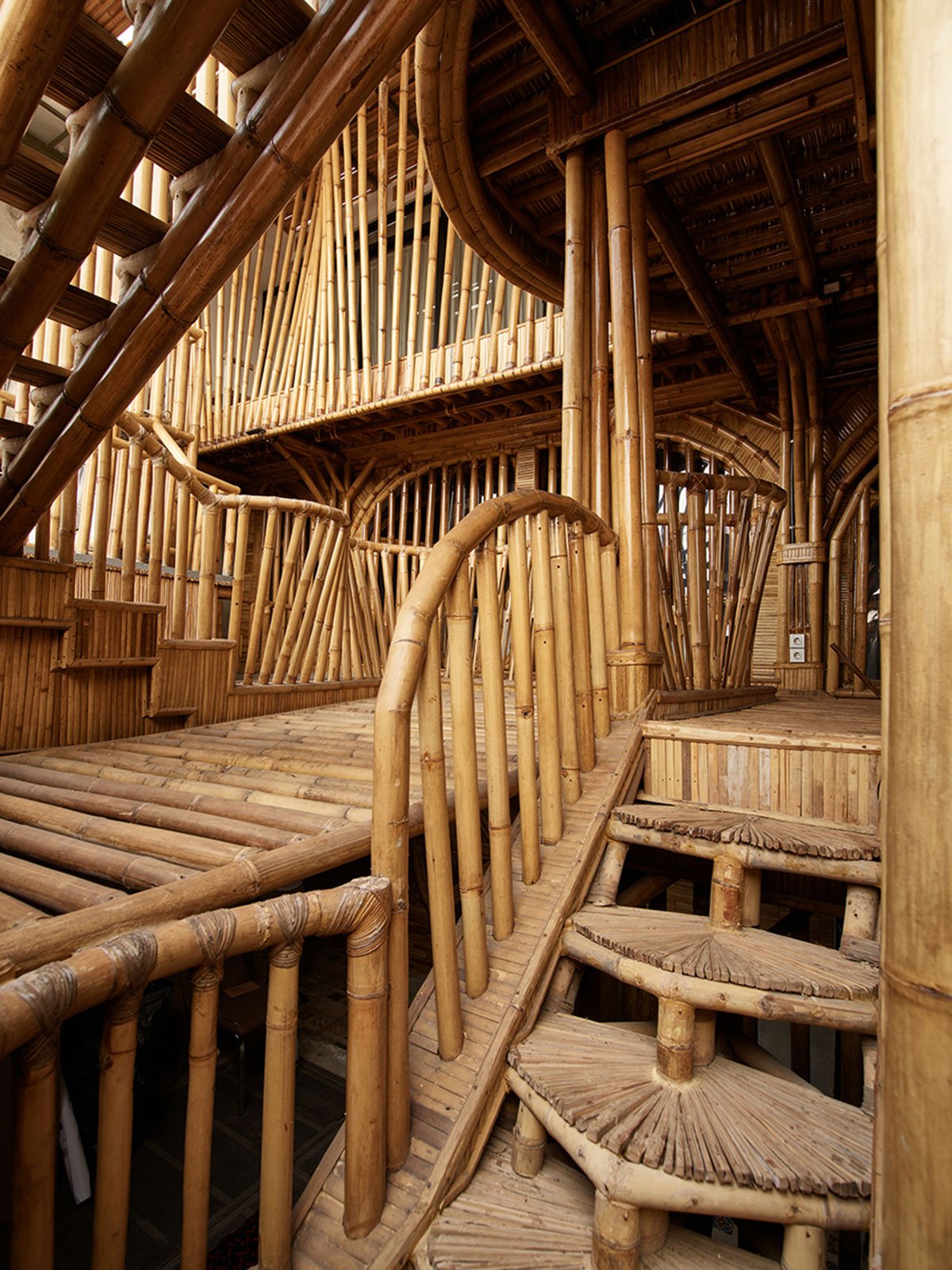

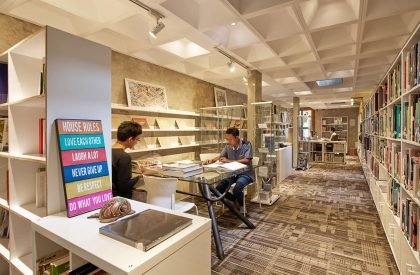

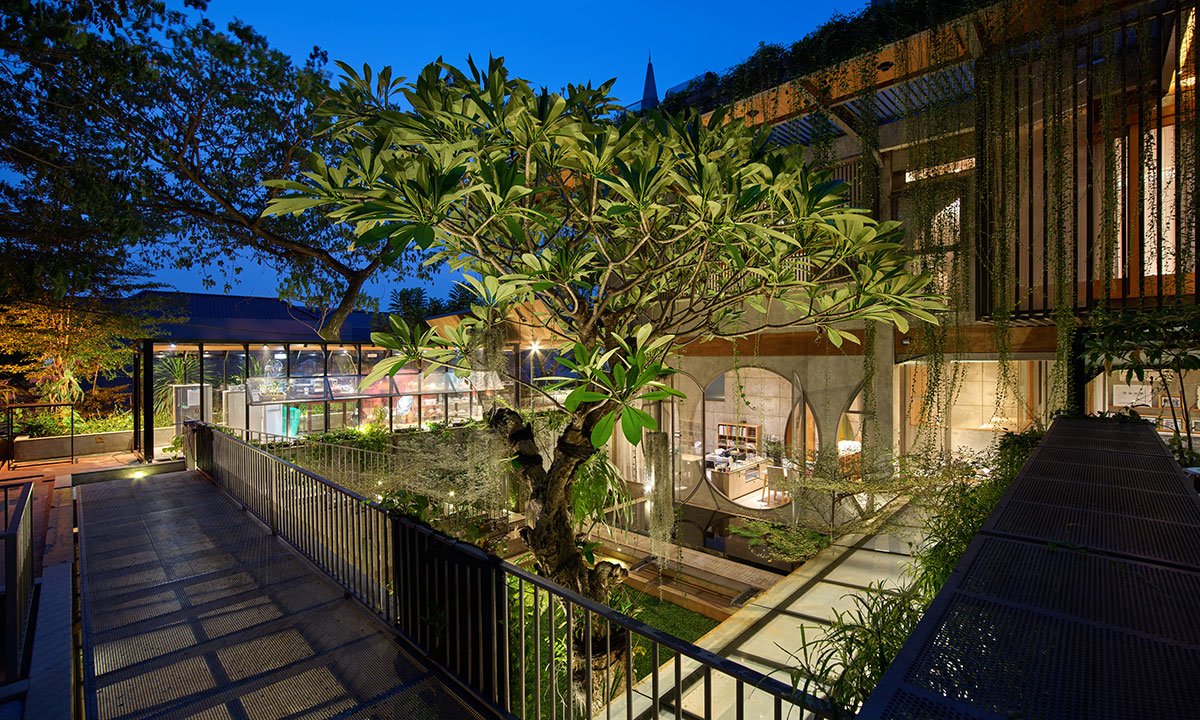

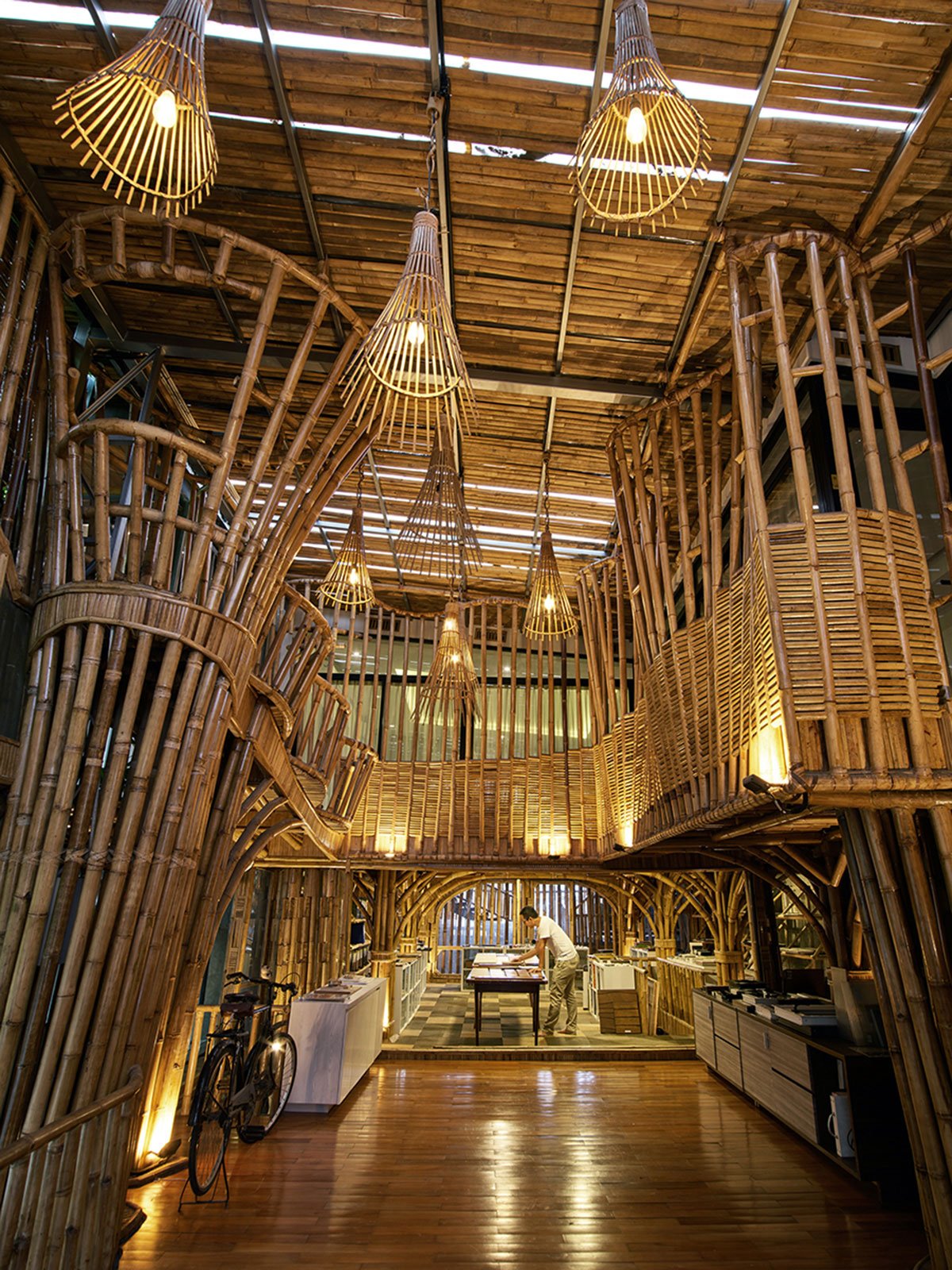

Guha is an combination of new and renovation project based on previously “The Guild” located in Taman Villa Meruya. The Project consist of Omah Library, Dental Clinic, residence and Realrich Sjarief’s studio named Guha Bambu, The studio is Realrich Architecture Workshop (well known by name of RAW Architecture). The renovation section is consisted on adding sequence for adding elaborated programs for Omah Library such as, more storage for book shelves, bookstore and gallery. The circulation is designed to separate the public and private which is solved by separating the access at the entrance. The new project, named Guha Bambu is at the east side. This building stands in the lot of 7.5 x 26 m size consisted new 3 storey Bamboo structure, 2 storey of basement. The technique to build the structure is elaborated from experimental school of alfa omega project. The technique separates the steel plane truss structure  as a roof and bamboo structure to hold the 3 floor plate under steel structure roof.

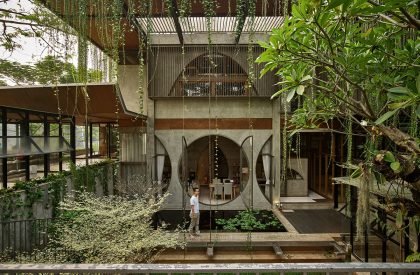

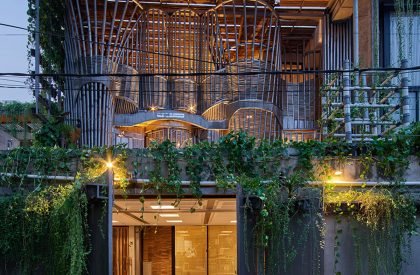

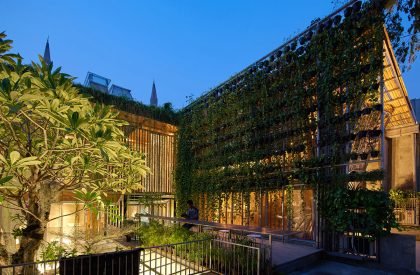

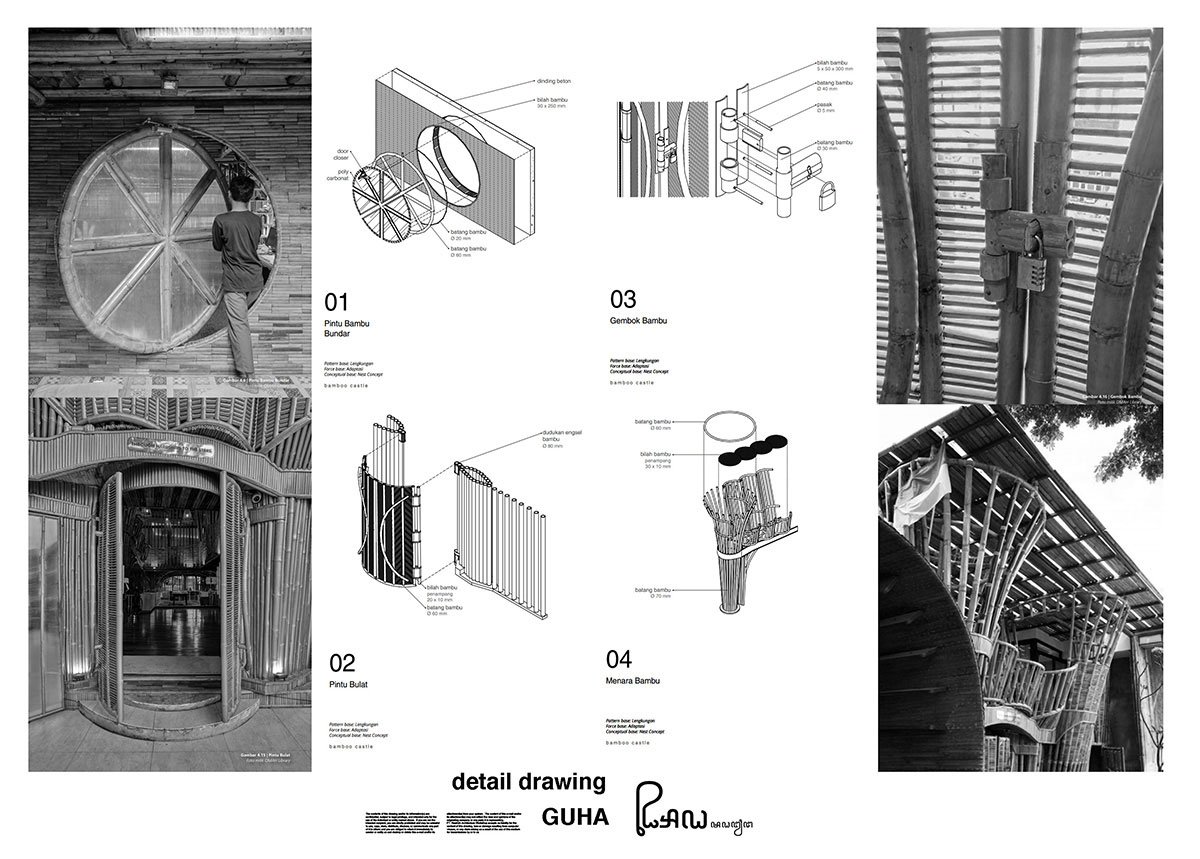

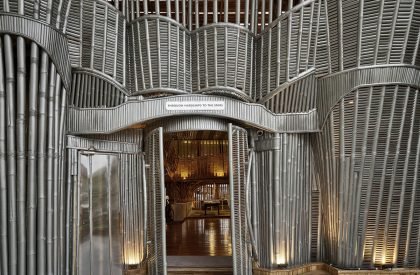

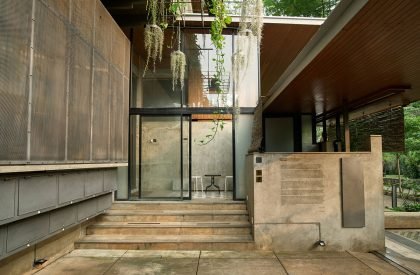

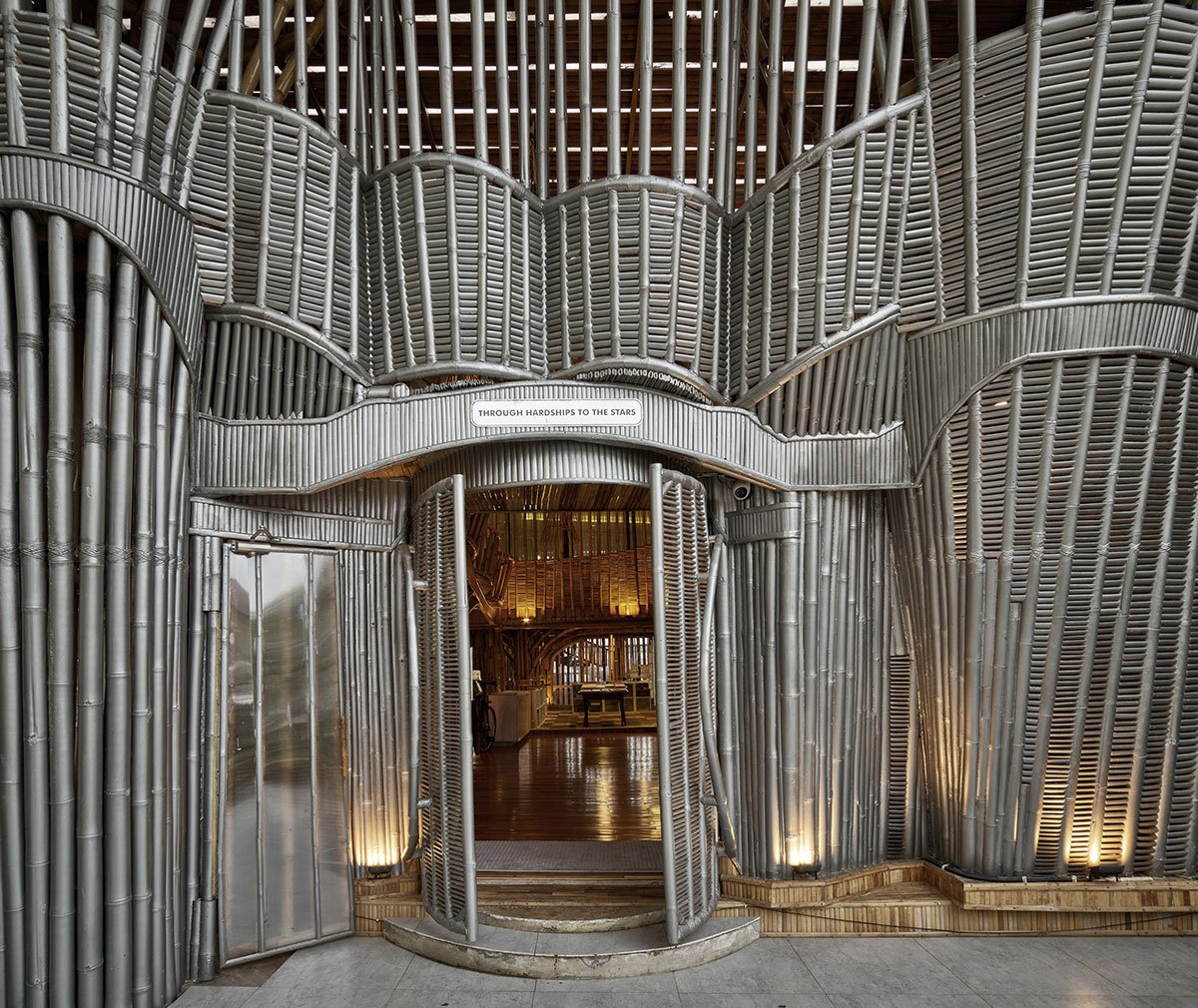

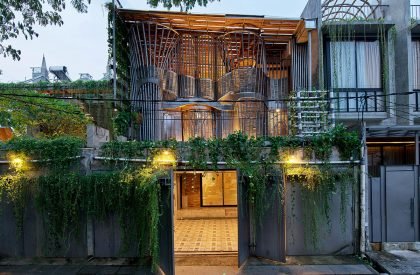

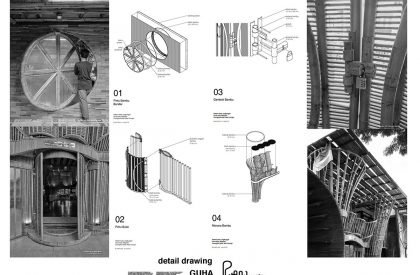

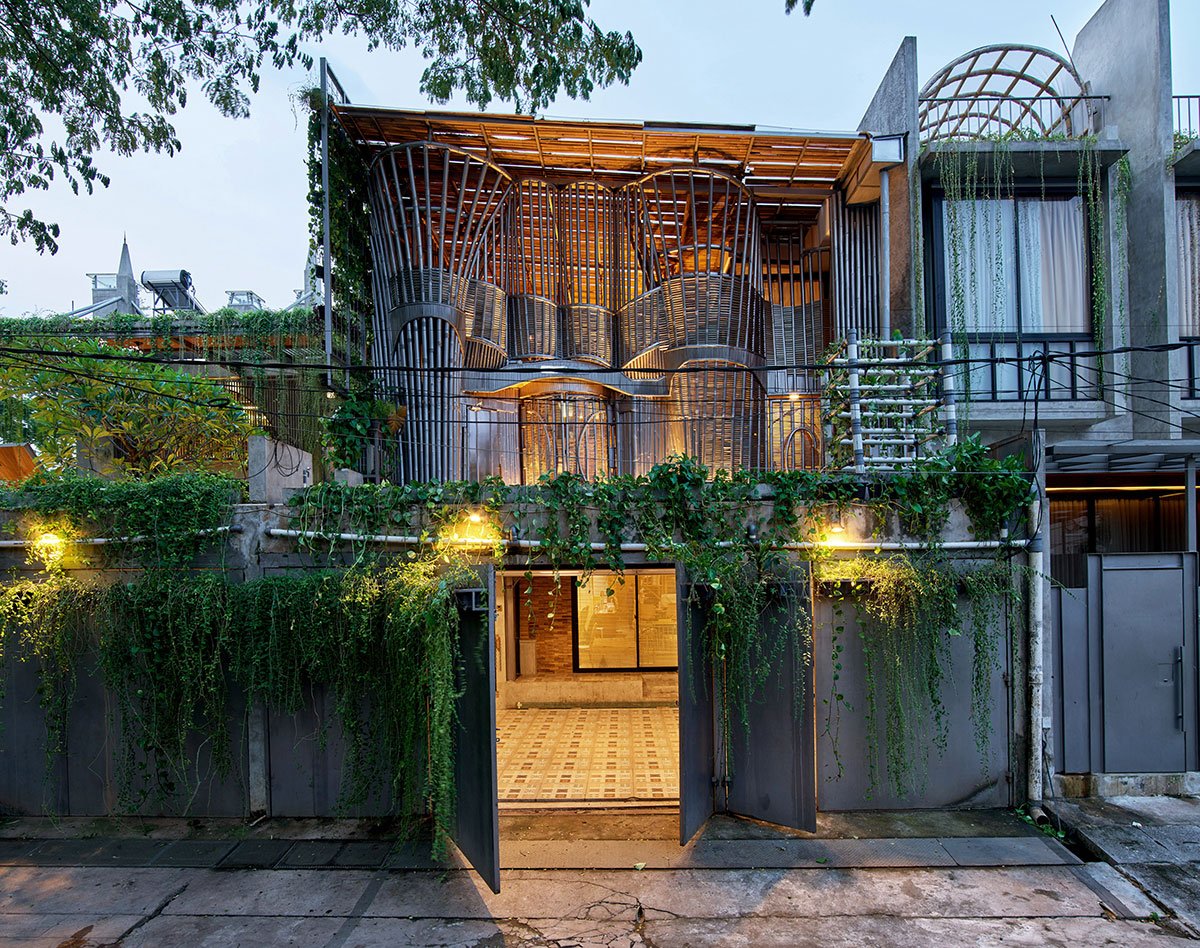

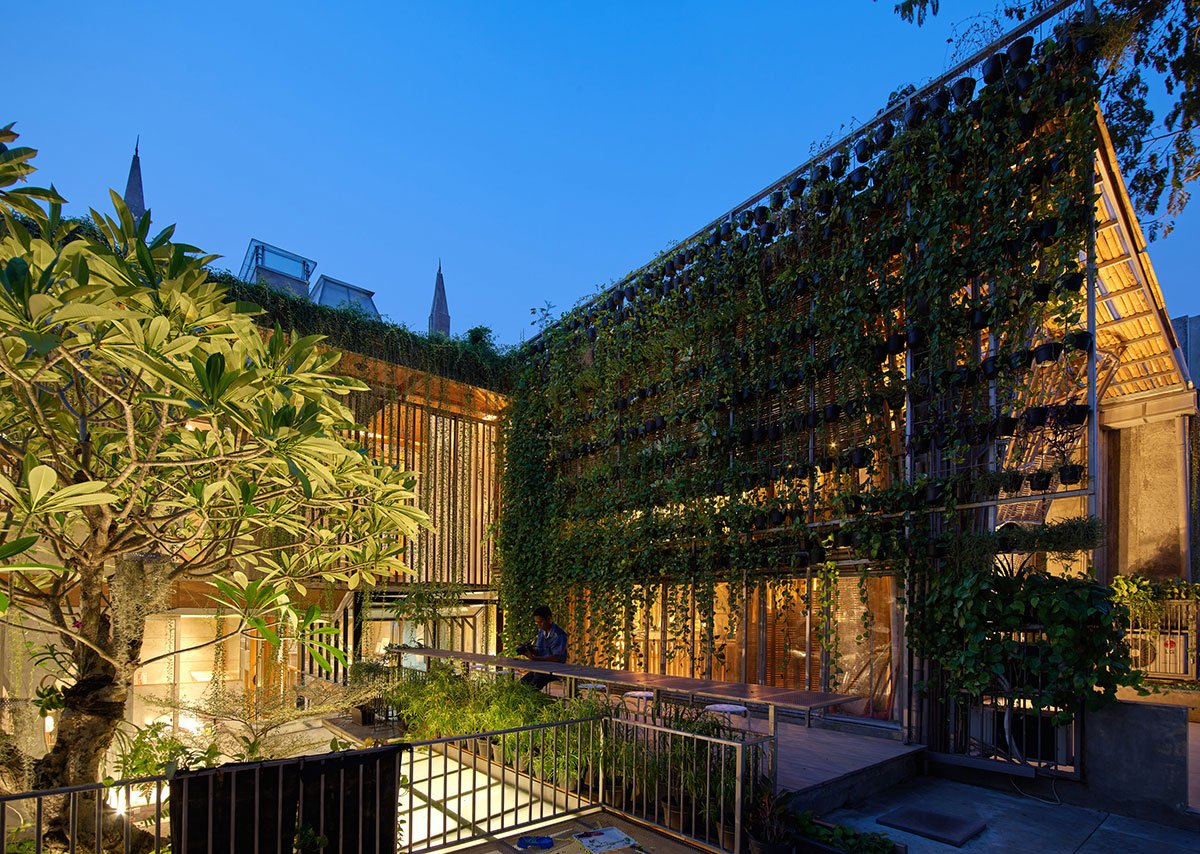

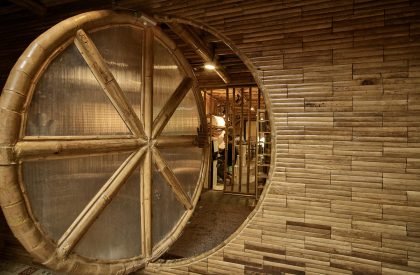

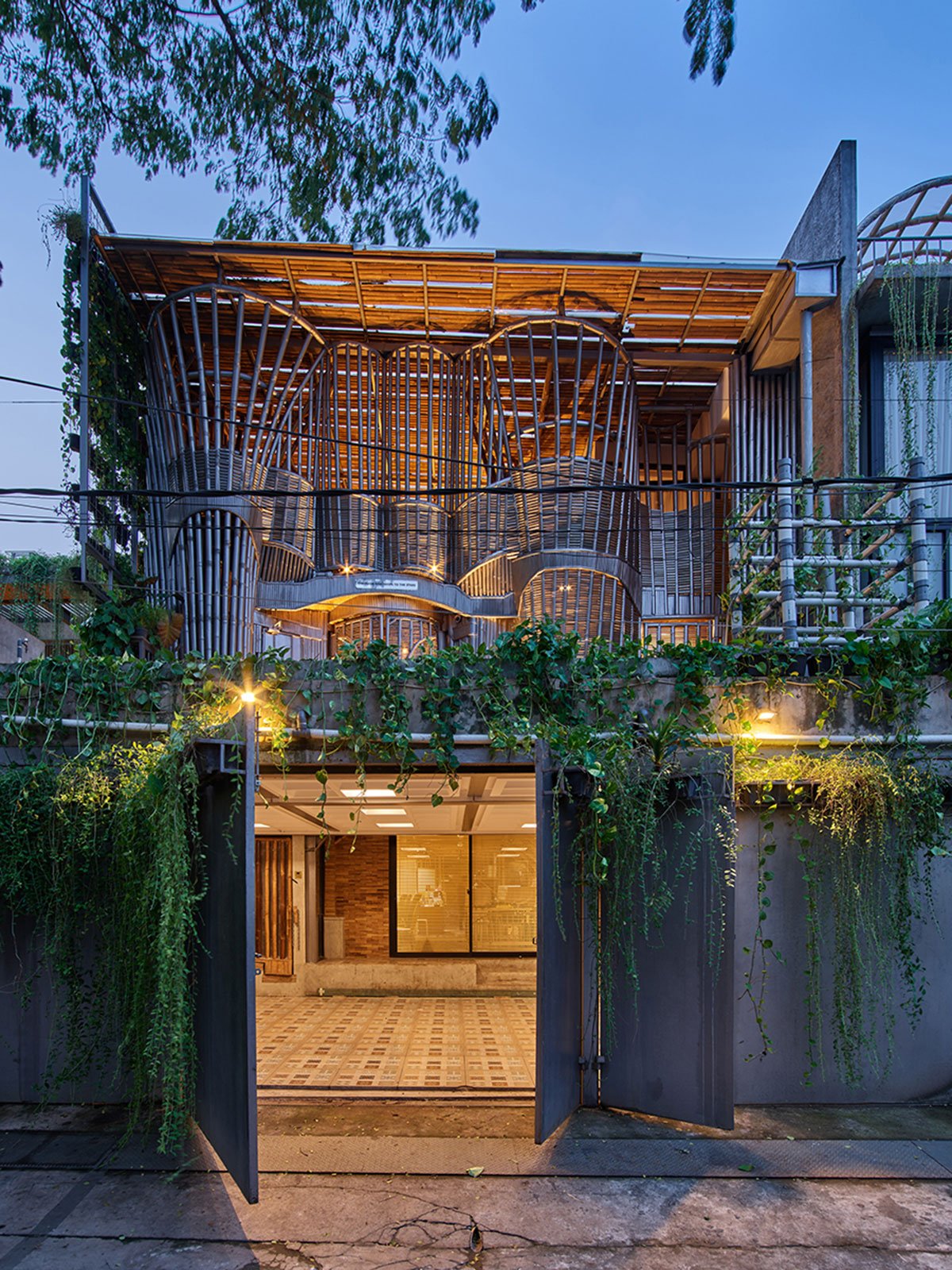

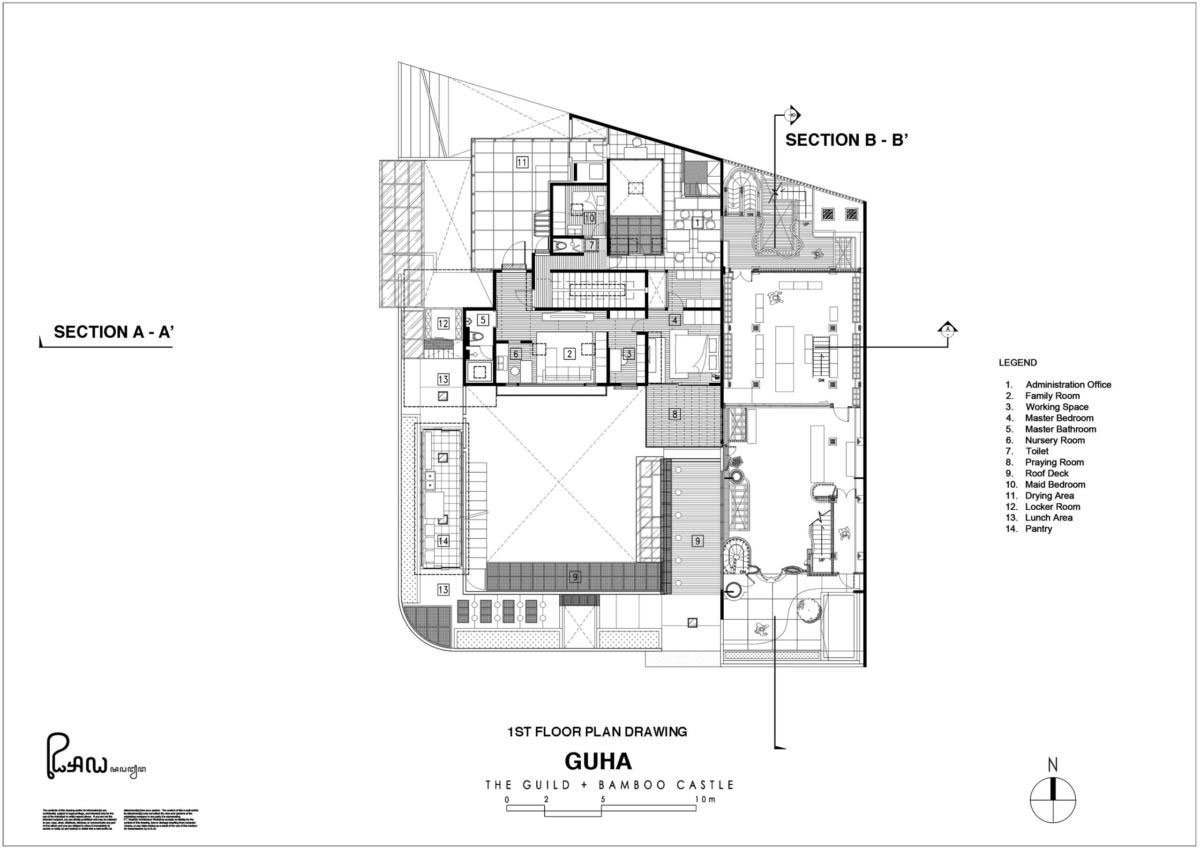

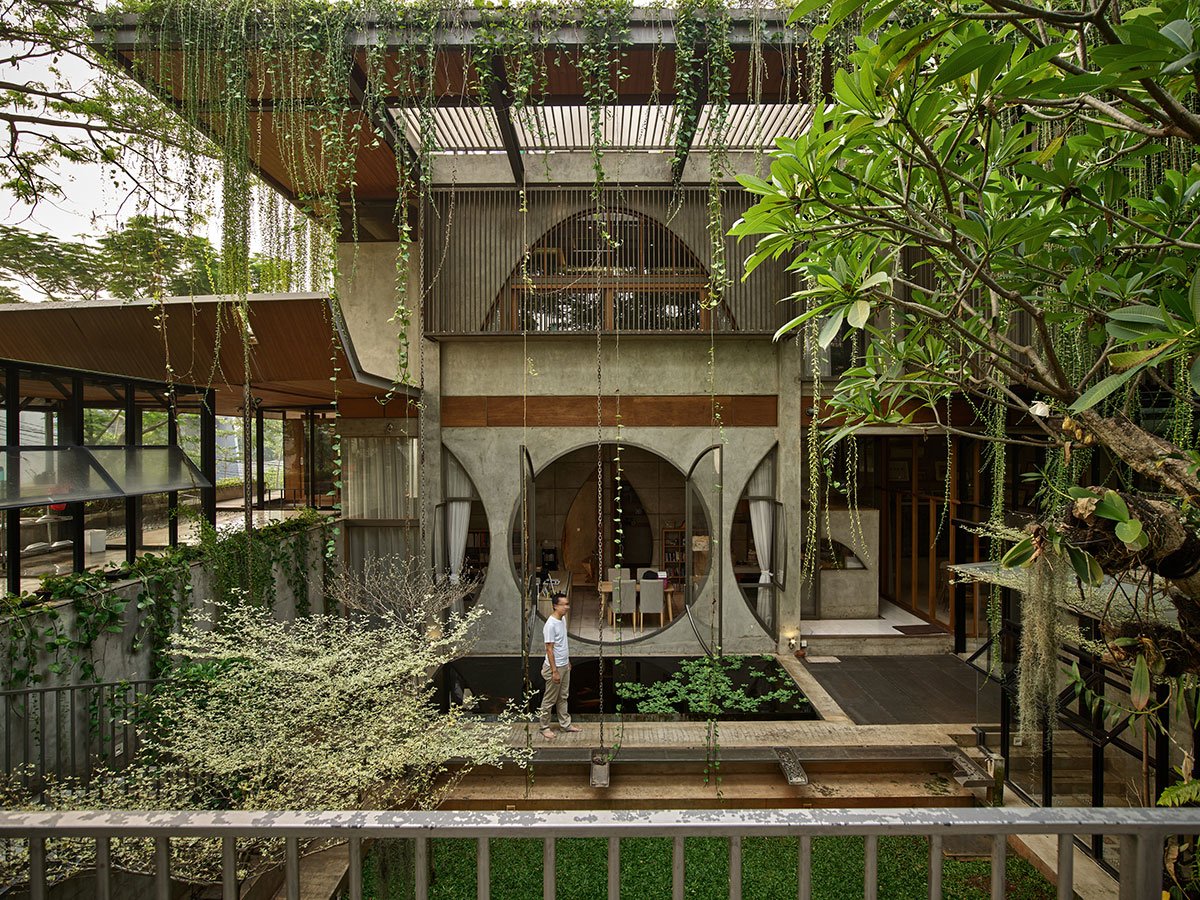

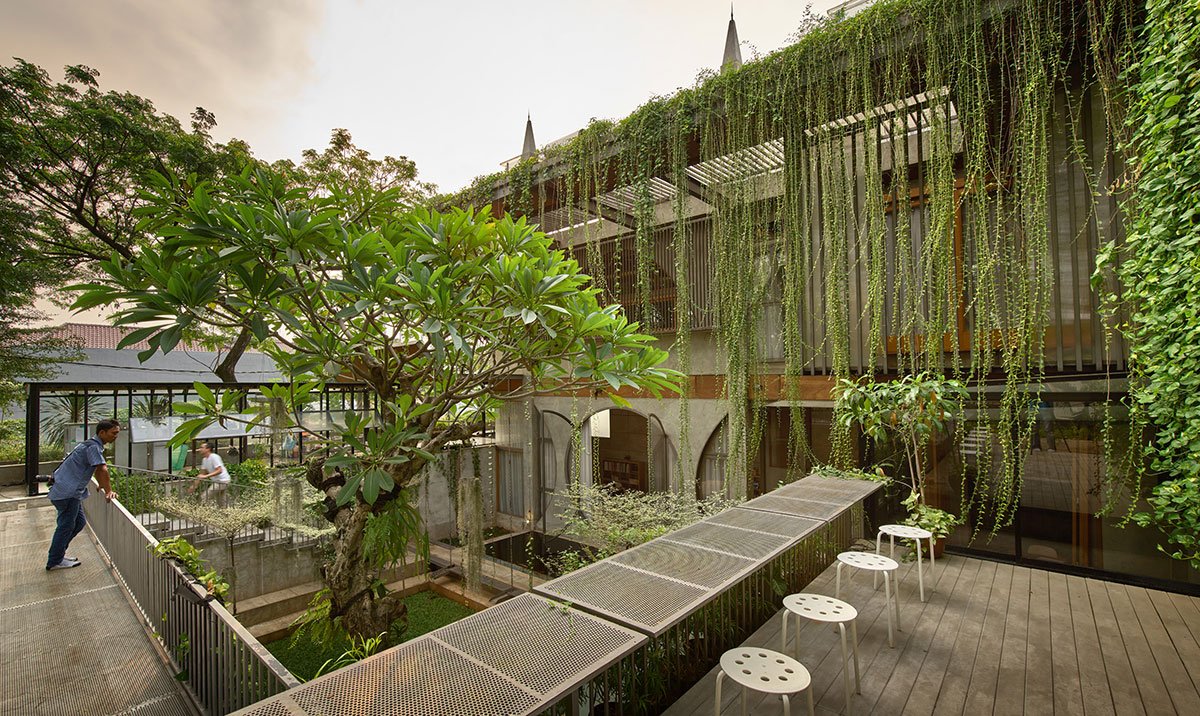

Construction of Guha is elaborated into 9 materials to sum up craftmanship experimentation in Realrich Architecture Workshop such as : steel, wood, glass, metal, gypsum, bamboo, plastic, stone and concrete. The layout is flexible, and open while some of the rooms is opened by minimum 2 doors allowing the furthern scenarion while the program can be changed. The idea is basicaly addresing the tropical climate to open north south and close the facade at west side.The Facade is basicaly basic material, concrete, vertikal louvre by steel and bamboo. The program it self challenge the typical housing in Indonesia to be mixed with more micro business programs such as education, even coffee shop in the future by maintaining privacy and opening itself to the public. The construction is done by generations of craftman from west java which integrate some of traditional fish mouth joint in bamboo constructions and more modern construction method such as steel and construction.
