Information

  • Completion year: 2019
  • Gross Built up Area: 80 sq.m.
  • Project Location: Shenzhen
  • Country: China
  • Lead Architects/Designer: Jenchieh Hung and Kulthida Songkittipakdee
  • Design Team: Jenchieh Hung, Kulthida Songkittipakdee, Jiaqi Han
  • Clients: Xichong Resort (Shenzhen Workers' Nursing Home)
  • Contractors: Shenzhen Fengzhiyu Public Art Co., Ltd.
  • Photo Credits: Yu Bai
More Info Less Info

Excerpt: Intangible Sound, designed by HAS design and research, is an installation and is an unconventional manifesto for sea-viewing platforms. The design employs sturdy steel plates, delicate lines, and a unique tensile structure. This miniature architecture is a manifesto and an experiment that changes the short-term life cycle of installations and truly integrates into the life of the local fishing village and perpetually provides fishermen and children opportunities for various activities.

Project Description

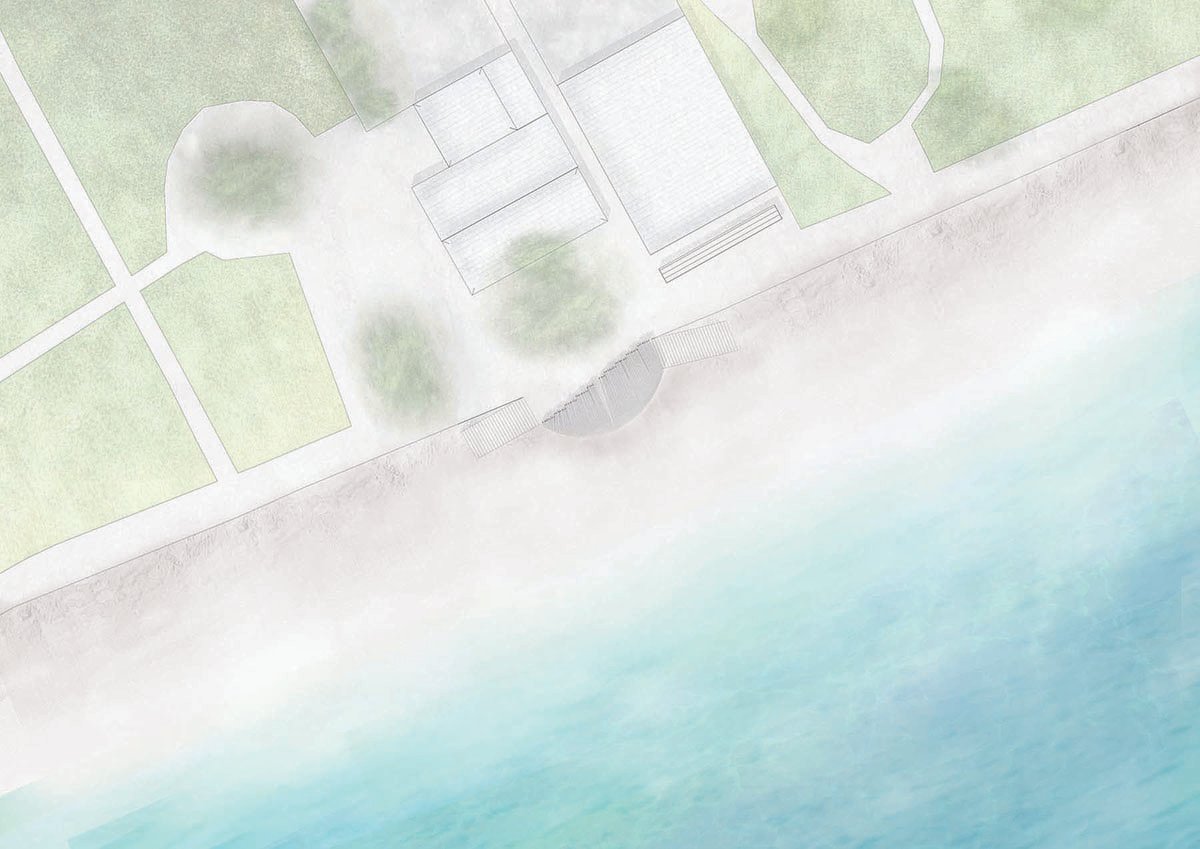

[Text as submitted by architect] This design is an unconventional manifesto for sea-viewing platforms. Why are the conventional sea-viewing platforms filled with numerous fencings and railings blocking the scenery and limiting the possibility of activities? Shenzhen, where the project is located, is a typical city of high-density development in contemporary China. In the past 40 years, it has transformed from a traditional small fishing village into an international city, with the sea-viewing platform located on the last natural coast of Shenzhen, Xichong.

Intangible Sound | HAS design and research
© HAS design and research
Intangible Sound | HAS design and research
© HAS design and research
Intangible Sound | HAS design and research
© HAS design and research

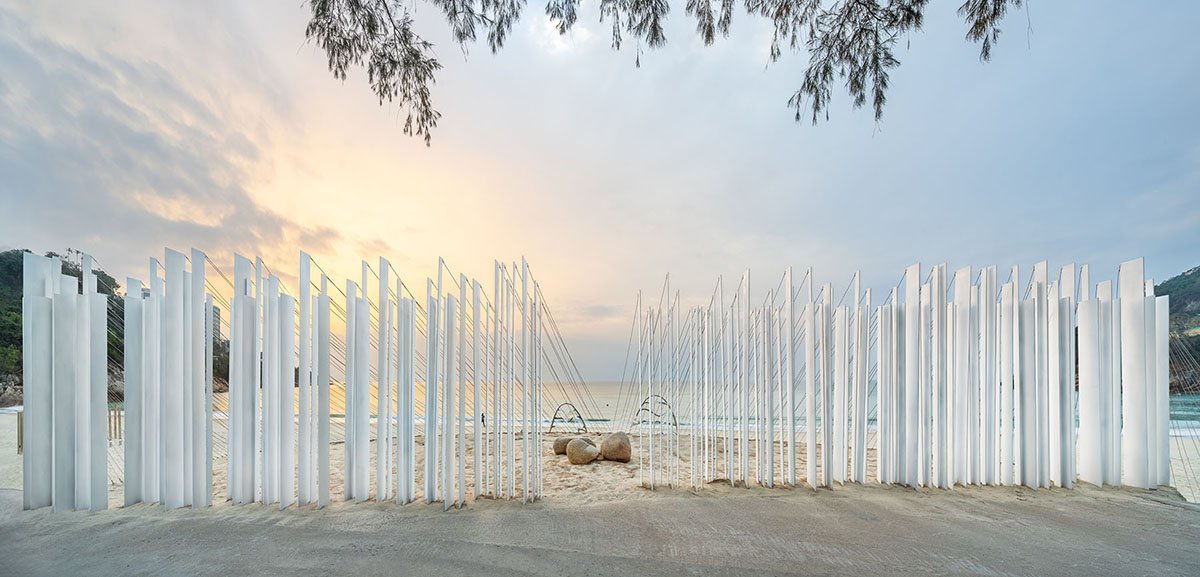

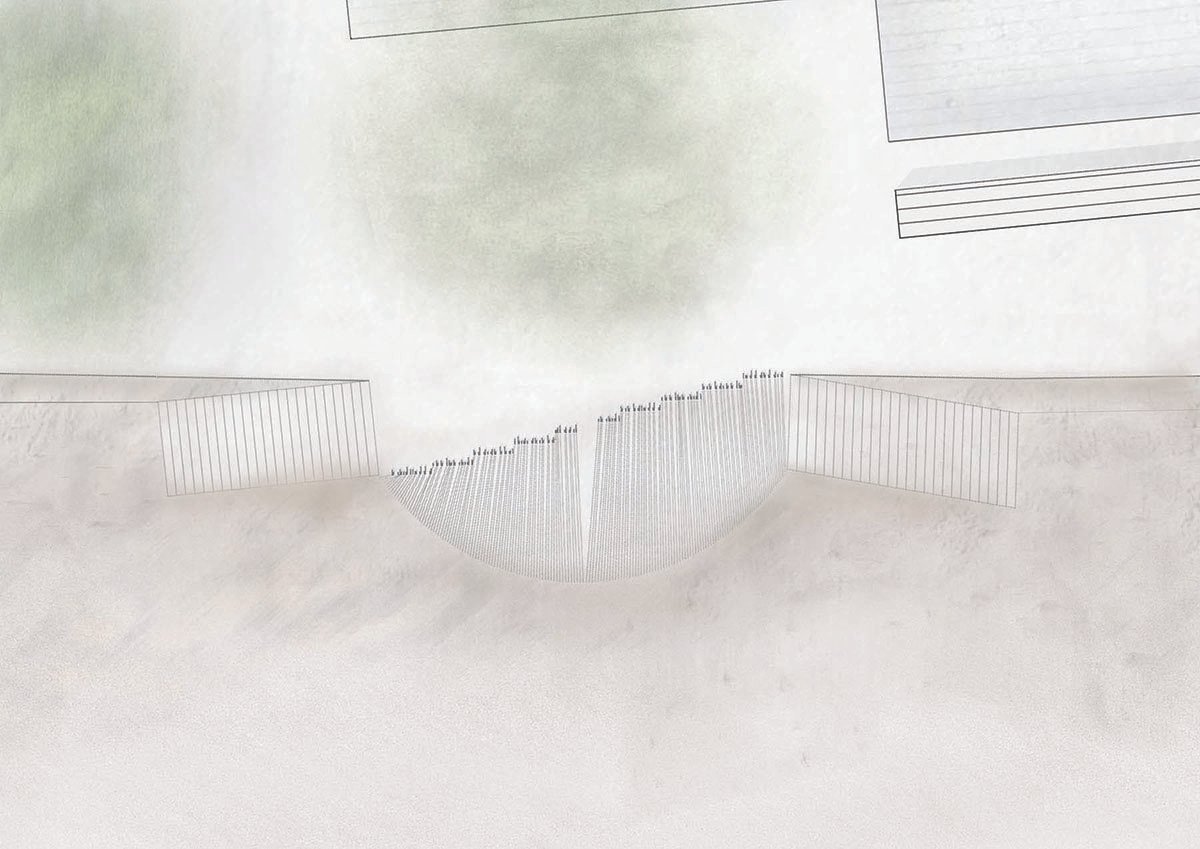

The territory waters of Xichong are famous for the fishery and tourism industries. In an incidental opportunity, fishermen shared with us the local technique of “Gongyu,” a method to decrease the energy consumption of fish and minimize the oxygen loss in the lungs, thus allowing the fish to survive three days without water. This “improvisation” method uses the force and tension of the fishing line to restrains and controls the movement of fish, thus fully illustrates the crystallization of local fishermen’s wisdom. The commissioned plot is a semi-arc sea-viewing platform, constructed with heavy railings and cold concrete ground. Our project employs a low-cost renovation project budget (about 2,500 USD) and uses the locally accessible fishing line as the primary material, creating a smooth, transparent and unique space, a stage for interaction or observation of the sea.

Intangible Sound | HAS design and research
© Yu Bai
Intangible Sound | HAS design and research
© Yu Bai
Intangible Sound | HAS design and research
© Yu Bai

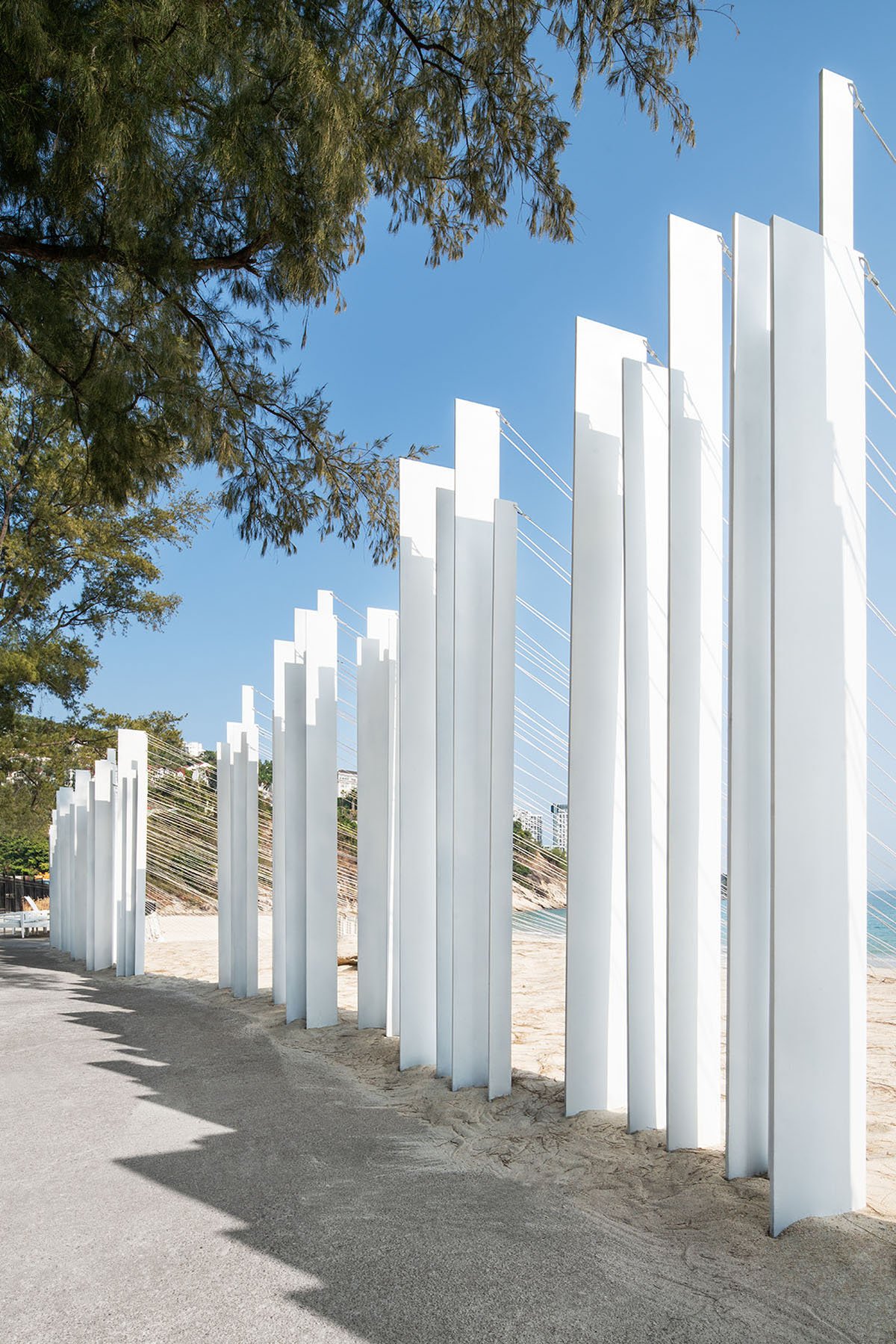

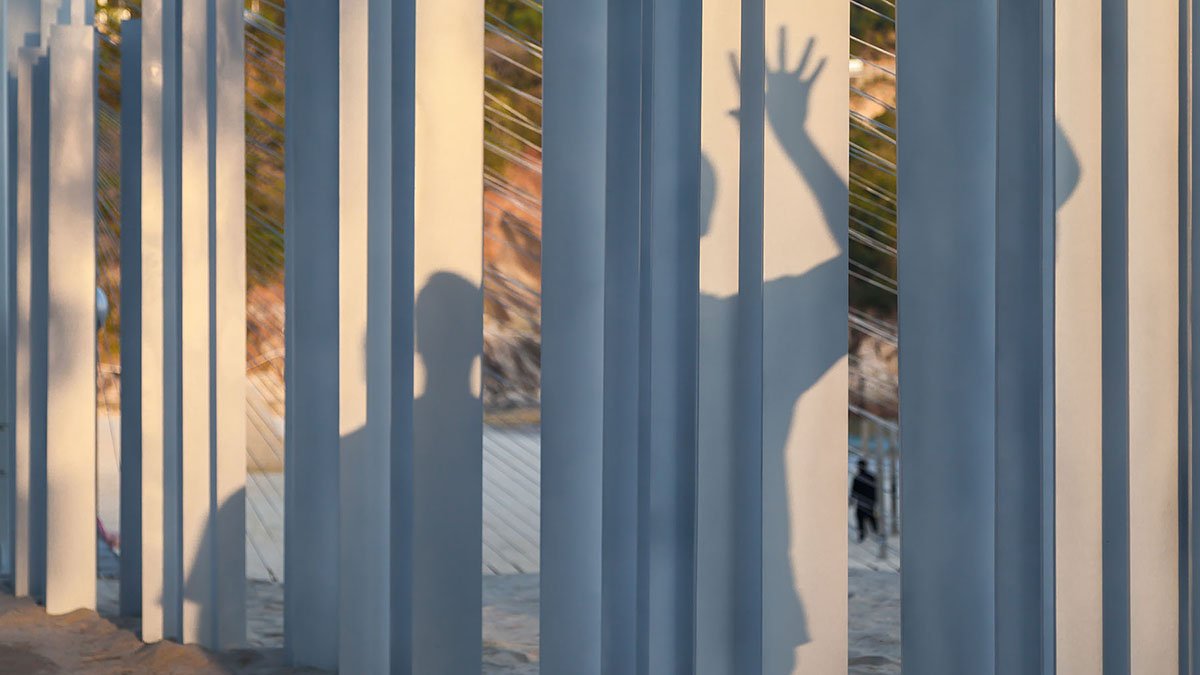

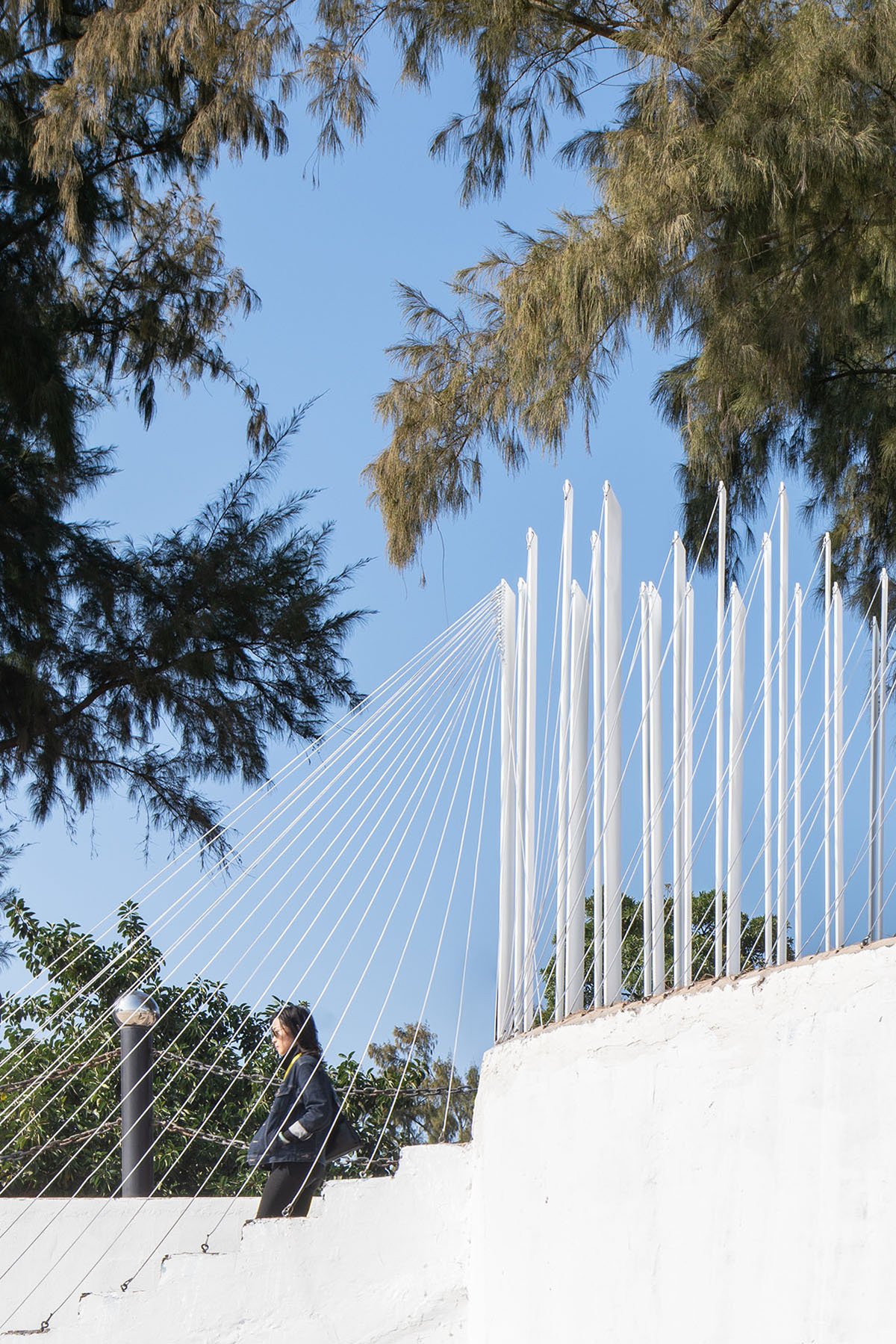

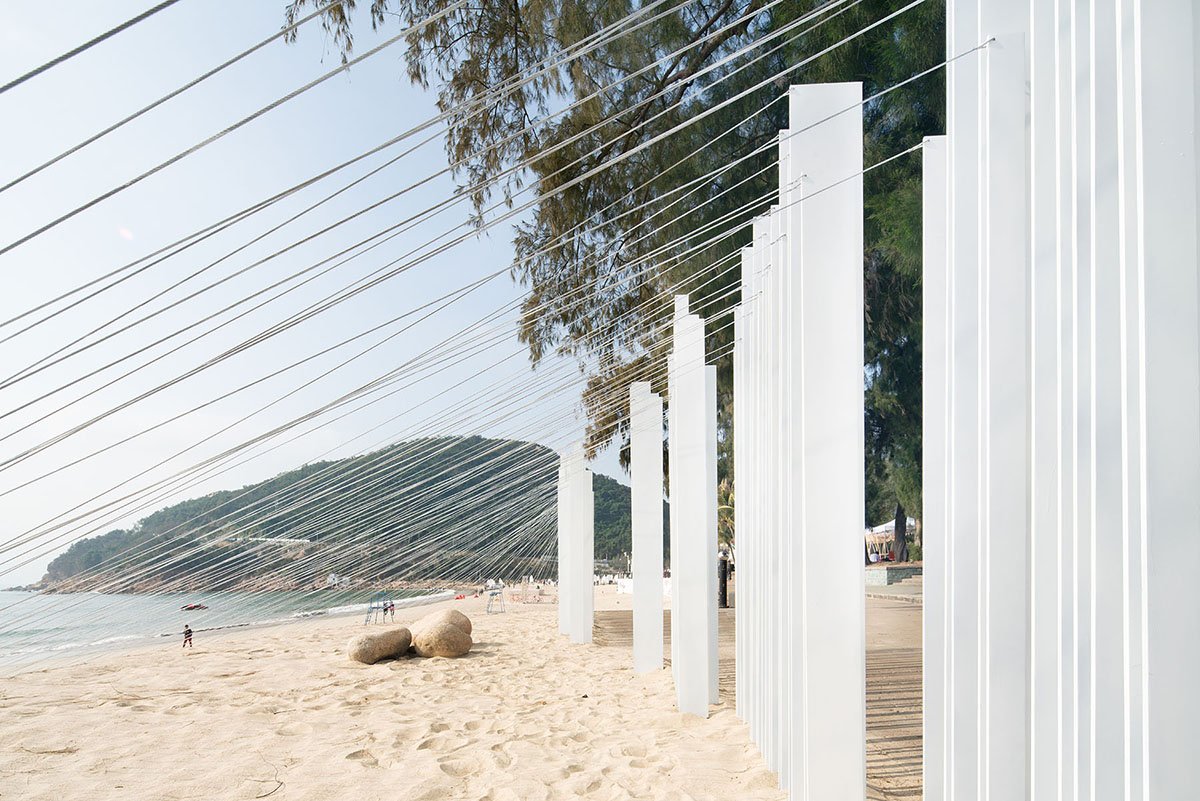

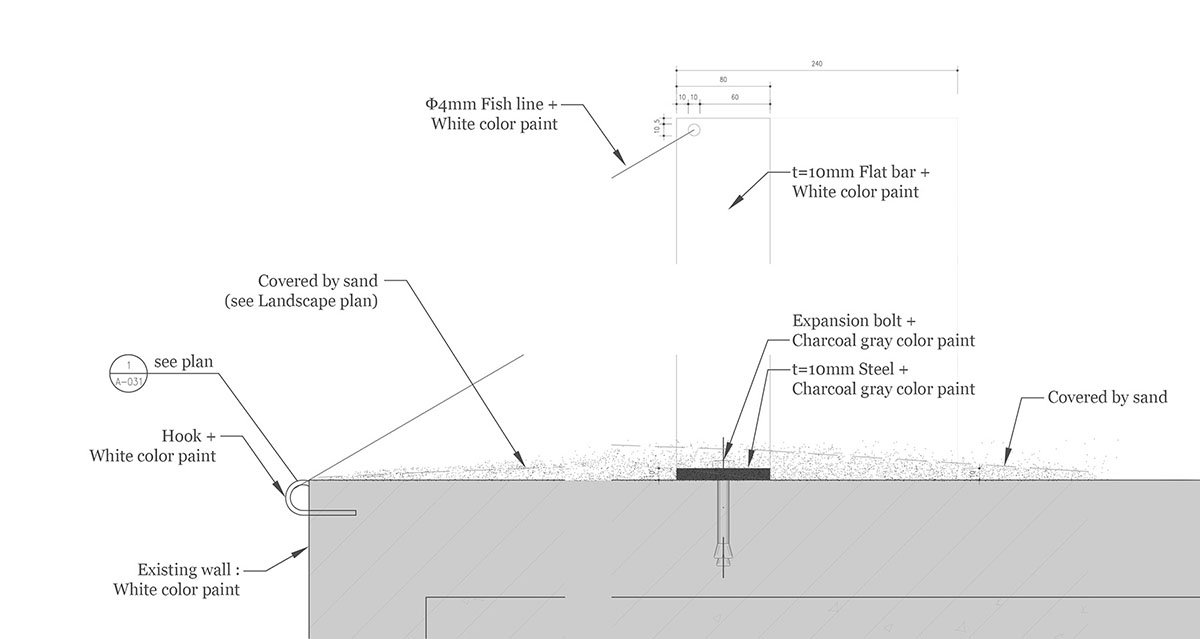

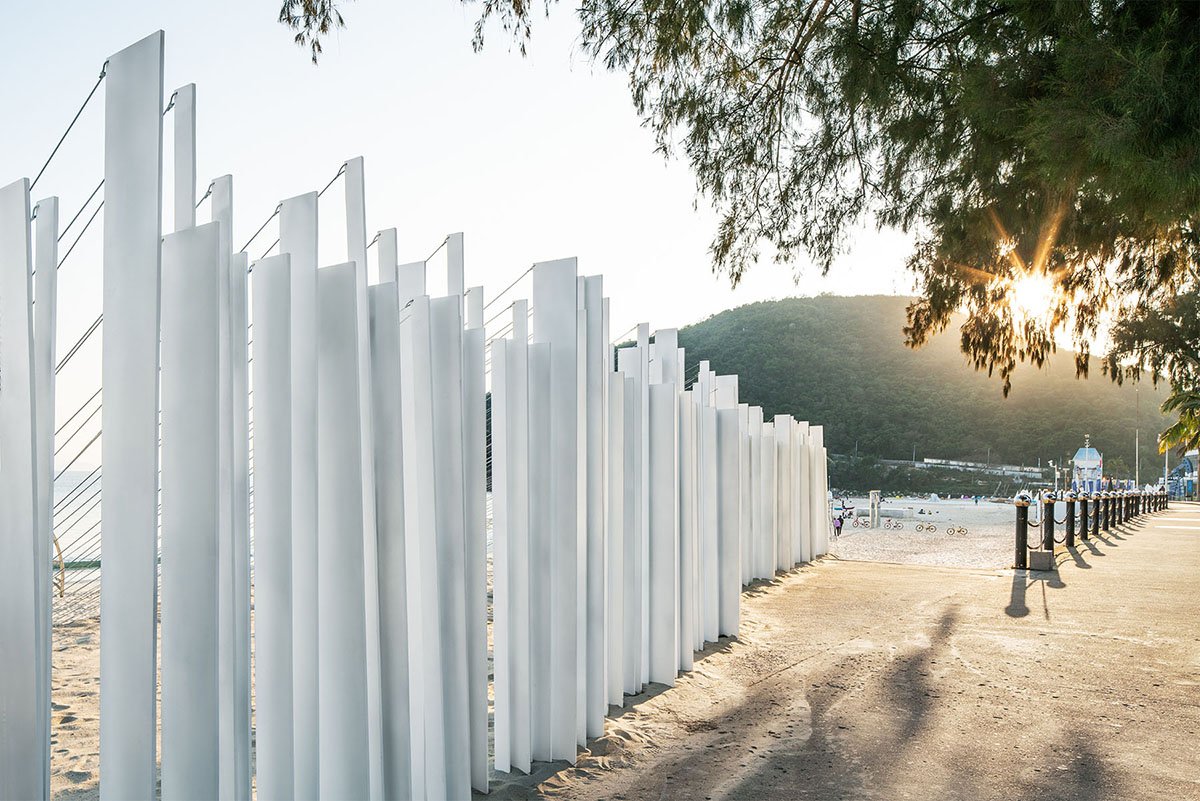

Before entering the pavilion, visitors pass through fences of different heights and spacings, perceiving the distance from the seascape, which cherishes and nurtures the scenery. As they enter the pavilion, the lines form an artistic scene through the curvilinear site. The scattered natural light, shadow, and the sound of wind together present a rhythm, providing an experience of the diversity and richness of the environment. The design employs sturdy steel plates and delicate lines in combination with a unique tensile structure. Moreover, the dunes and stones are used in creating an interior landscape to present the most significant regional characteristics of the Xichong—vast mountain forests and floating coastlines.

Intangible Sound | HAS design and research
© Yu Bai
Intangible Sound | HAS design and research
© Yu Bai
Intangible Sound | HAS design and research
© Yu Bai

Postscript: Intangible Sound was initially installed for the 2019 Bi-City Biennale of Urbanism/Architecture (UABB). After the exhibition period, the client decided to keep Intangible Sound as a permanent public sea-viewing shed. This miniature architecture is a manifesto and an experiment that changes the short-term life cycle of installations and truly integrates into the life of the local fishing village and perpetually provides fishermen and children opportunities for various activities.

Intangible Sound | HAS design and research
© Yu Bai
Intangible Sound | HAS design and research
© Yu Bai
