  • Project Name: Chengdu Xinglong Lake CITIC Bookstore
  • Practice: Muda Architects
  • Completion year: 2021
  • Gross Built up Area: 500 sqm
  • Project Location: Chengdu
  • Country: China
  • Lead Architects/Designer: Lu Yun
  • Design Team: Zhao Guojun, Ni Dan, Li Yue, Le Jia Yi, Liu Xiao Siao, Li Jean, Liu Hanning, Xu Jiandan, Lv Chenyu, Rong Dian, Ni Dan, He Fan, Mei Yixuan, Zhan Ziqi, Liu Bin, Jia Shuran, Liu Jingyi, Fu Yao
  • Clients: CITIC Urban Development & Operation
  • Structural Consultants: iStructure
  • Landscape Consultants: Wanhua Landscape Center, Yu Dao Landscape Design
  • Photo Credits: Arch-Exist, Here Space, Luyun
  • Others: Lighting design consultant: BPI, Curtain wall design consultant: Ji Li Curtain Wall, Building Construction Design: China CSCEC Design Group Co.,Ltd., Soft furnishing procurement cooperation: Vandello, Water ecology management of the Lake area: Wanhua Qingyuan Water Environment
More Info Less Info

Excerpt: Muda Architects designed the bookstore using the architectural language to propose the relationship between man & books, nature and space within the enclosure of building form like a book falling from the sky.

Project Description

Chengdu Xinglong Lake CITIC Bookstore | Muda Architects
Night View © Arch-Exist

[Text as submitted by architect] MUDA-Architects emerged as the winner of the competition he “Xinglong Lake Bookstore Architectural Creative Design Competition” among 20 finalists with design proposals in July-August 2018. the “Xinglong Lake Bookstore Architectural Creative Design Competition” started to be open to public entry.

Chengdu Xinglong Lake CITIC Bookstore | Muda Architects
Back of the Bookstore © Arch-Exist

Chengdu Tianfu New Area has been identified as a crucial node in the development of The Belt and Road Initiative and the development of the Yangtze River Economic Belt. Ecological value in line with the developer to implement the concept of “Park City” was first mentioned on the shore of Xinglong Lake in February 2018. To correspond with the development plan, the competition is prepared for creating a lakeside bookstore as a new landmark of Chengdu, which could leverage the ecological value and the human spirit collectively.

Chengdu Xinglong Lake CITIC Bookstore | Muda Architects
Night View of Main Entrance © Arch-Exist

Taking this as an opportunity to reflect and embody the inimitable temperament and leisurely lifestyle of Chengdu, MUDA-Architects made efforts to convey the esteem of the local natural environment and add a new dimension to the future vision of “landscape integration and urban symbiosis”.

Design Concept

The design concept originates from the idea of “a book falling from the sky”, and the shape of the book is engaged with the architectural form to visualize the metaphor. Visitors are expected to step into the architectural space and get immersed in the tranquility to develop positive self-talk and a journey of self-discovery.

Chengdu Xinglong Lake CITIC Bookstore | Muda Architects
© Muda Architects

Site & Environment

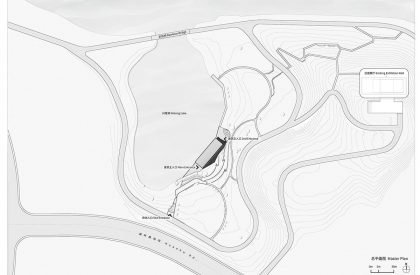

To create an appealing waterfront space, the project starts with a 12m*40m rectangular plane foundation located on the east lake shore of Xinglong Lake Southwest Bay Area. Two ends of the roof ridge are vertically stretched from 3 meters to different heights where the southwest end is elevated to 16 meters and the northeast end stops at 7.5 meters. The curved roof surface is formed according to the height of four supporting corners as a flipped page, which reinterprets the pitched roof of traditional Sichuan folk dwellings. Meanwhile, the roof also cooperates with the water ripples to extend the wavy feature of the architecture and blend in with the natural environment.

Chengdu Xinglong Lake CITIC Bookstore | Muda Architects

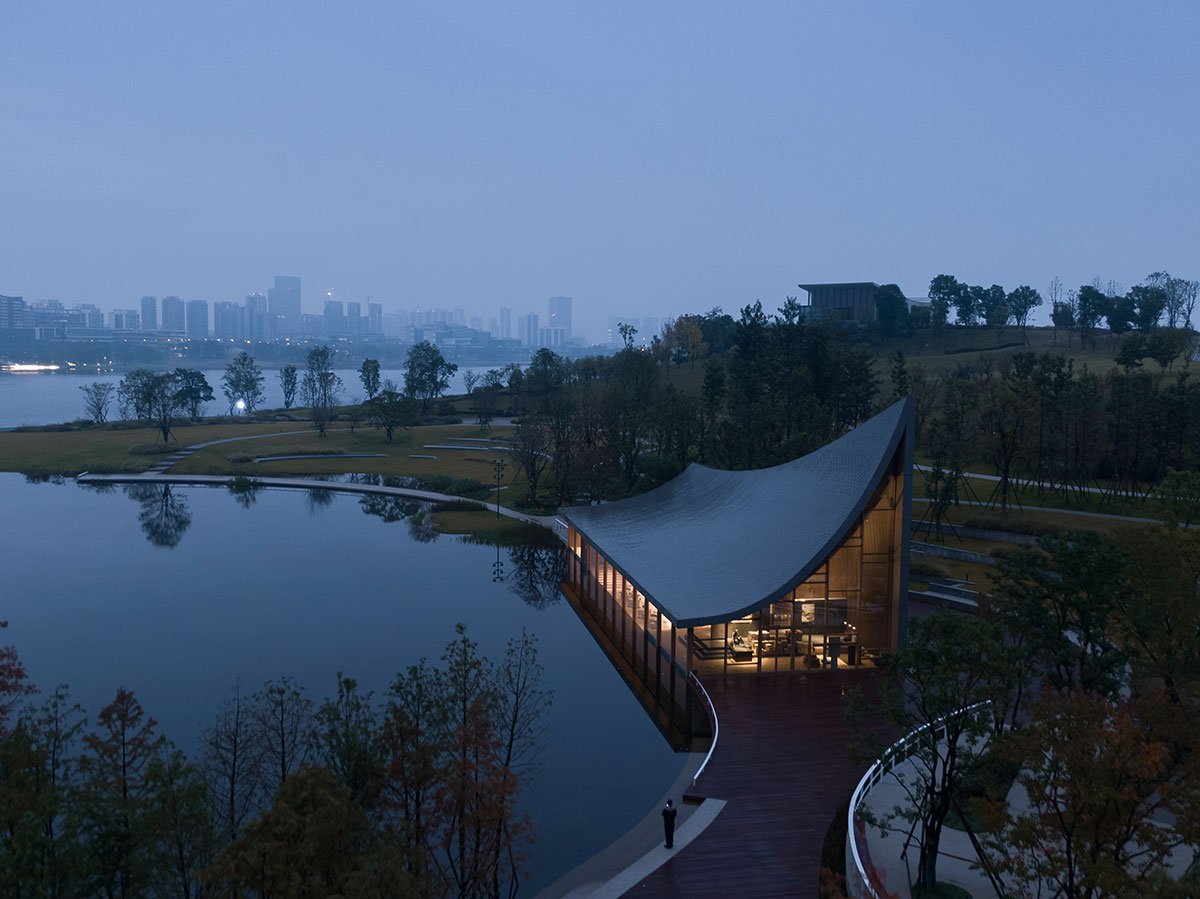

Overview of the Site-Day View © Arch-Exist

The architecture is linearly expanded to conform with the site and connect with the lake. The glass curtain wall is installed to be partially subaqueous as the waterfront façade of the bookstore. The natural light penetrates through the water and streams into the interior space of the bookstore, which assists in creating an ambience of serenity. Designed with transparent glass curtain walls as a façade, the architecture introduces aquatic plants, lawns, other vegetation, and water features into the interior space to correspond to the design theme of “reading in nature”.

Chengdu Xinglong Lake CITIC Bookstore | Muda Architects
Main Entrance © Arch-Exist
Chengdu Xinglong Lake CITIC Bookstore | Muda Architects
Light and lake Reflection © Arch-Exist

Space & Function

Visitors could get access to the bookstore from the main entrance on the south end where the reception, the gallery walls, and upwards form a spatial sequence of the entrance area. Sunlight casts through the glass wall on the left side and introduces the lake view into the interior space. Art gallery walls and a sculpture display area are placed at the entrance of the bookstore to release a sense of tranquility as the introduction of this book in architectural form. Walking through the art exhibition area and downward with several steps, the sunken reading area could be found as the core of the bookstore. Users can gain the most comfortable reading by standing, leaning, or sitting on the steps.

Chengdu Xinglong Lake CITIC Bookstore | Muda Architects
Night in the bookstore © Here Space

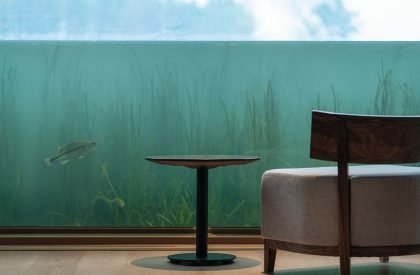

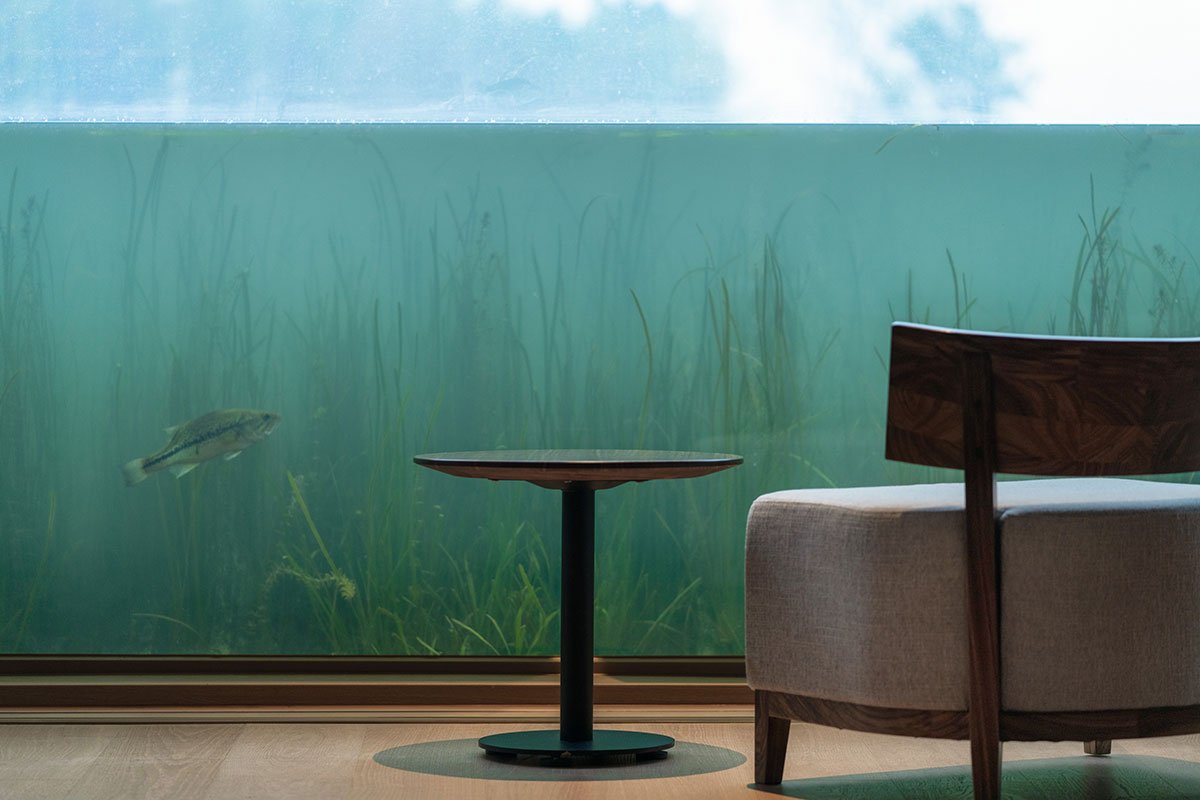

The entirety of the architectural structure is presented by the steel frame. The vertical steel columns are subtly concealed in the keel installation of the glass curtain wall and covered by the wall with no traces. The waterfront glass curtain wall extends to about one meter beneath the water, adding more interest to the space with the light and ripples. MUDA thus provides users with a unique underwater reading experience. A row of cafe tables and chairs are furnished along the glass curtain wall to generate a waterfront reading area, which is functioned as a cafe as well. To complement the ambience, undulating water waves projected by the natural lights add more interest to the spatial experience. Rocks and submerged plants are plotted in front of the glass curtain wall as the background of swimming fish. Visitors could take a seat and have an ambiguous conversation about the lapsing time and nature.

Chengdu Xinglong Lake CITIC Bookstore | Muda Architects
Coffee Area © Here Space

The design of the meditation area takes account of self-talk and internal monologue potentially needed from the readers’ perspective. It is formed as a narrow corridor along the east wall with several windows dispersed in different sizes. Those small openings allow the natural light to stream in with shadow cast while the light and shade tell the traces of time.

Chengdu Xinglong Lake CITIC Bookstore | Muda Architects
View from the meditation area © Here Space

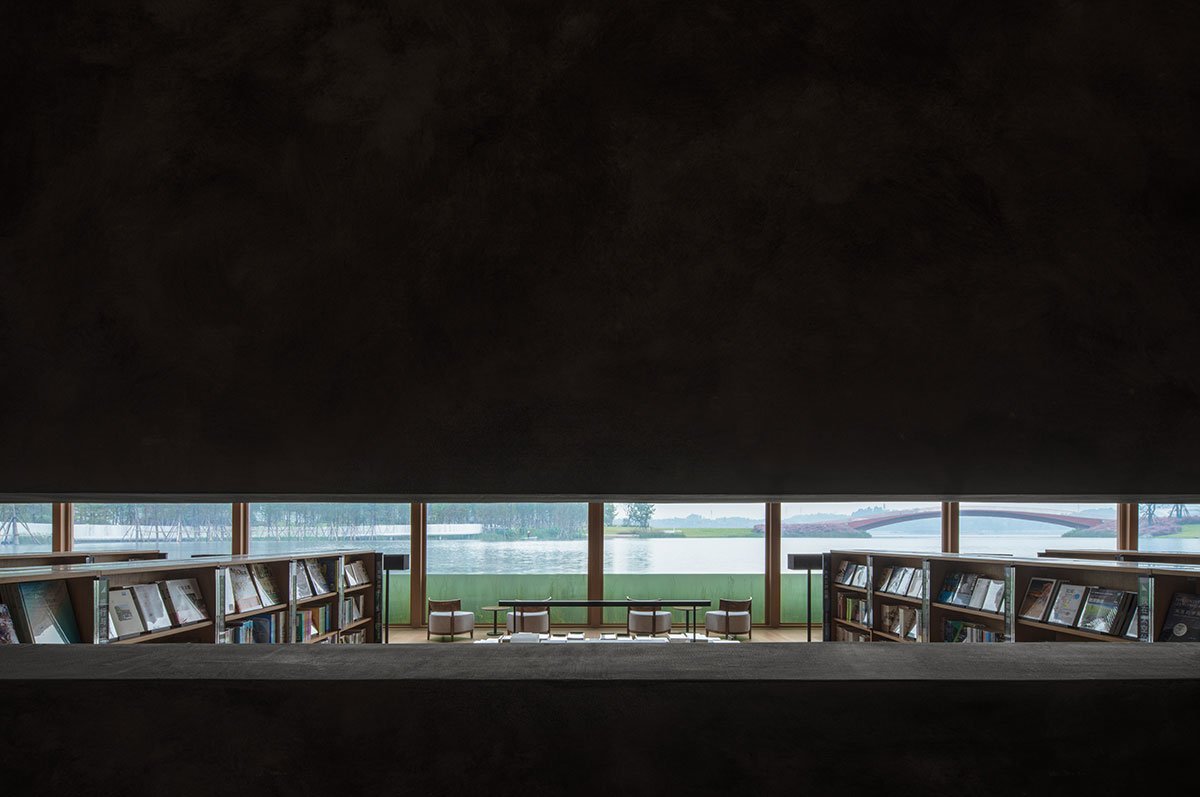

Meanwhile, the interior wall is installed with a slender horizontal opening which is designed to be about the level of people’s sight. It creates a relatively enclosed space in the bookstore for visitors to ponder and catch a glimpse of the natural environment, which aims to remind them of the relationship between themselves and the world internally and externally.

Chengdu Xinglong Lake CITIC Bookstore | Muda Architects
interior- view from the back of the bookstore © Here Space

The theatre space, office, and storage area are located at the secondary entrance, which could ensure privacy and flexibility when activities are arranged. The landscape design of the site is compatible with the architectural design of the bookstore, respecting nature and the site to the greatest extent. The back of the building restores the original sloping contours of the site, forming layers of cascading grass and setting up an arcing landscape wall to echo it. Users can rest on the grass or sit on the scenic wall, forming a harmonious coexistence among people, architecture, and nature. Wooden platforms are designed at both entrances of the building, providing users with outdoor resting and water-friendly spaces, and providing more space for the bookstore’s operational activities.

Chengdu Xinglong Lake CITIC Bookstore | Muda Architects
Interior Feature Image-view from the main entrance-horizontal © Here Space

Details & Materials

Titanium zinc panels imported from France are adopted for the architectural surface. Panels are installed by using the flat lock system to provide a fish scale texture and a visual connection with the shimmering lake. The texture of the titanium-zinc panels also corresponds to the traditional “tile roof” form. The titanium zinc panel could get protected from its zinc carbonate layer and get recovered from slight scratches by its oxidation. The outstanding intrinsic recovering capacity and the oxide layer would bring extra value and interest to the architecture.

Chengdu Xinglong Lake CITIC Bookstore | Muda Architects

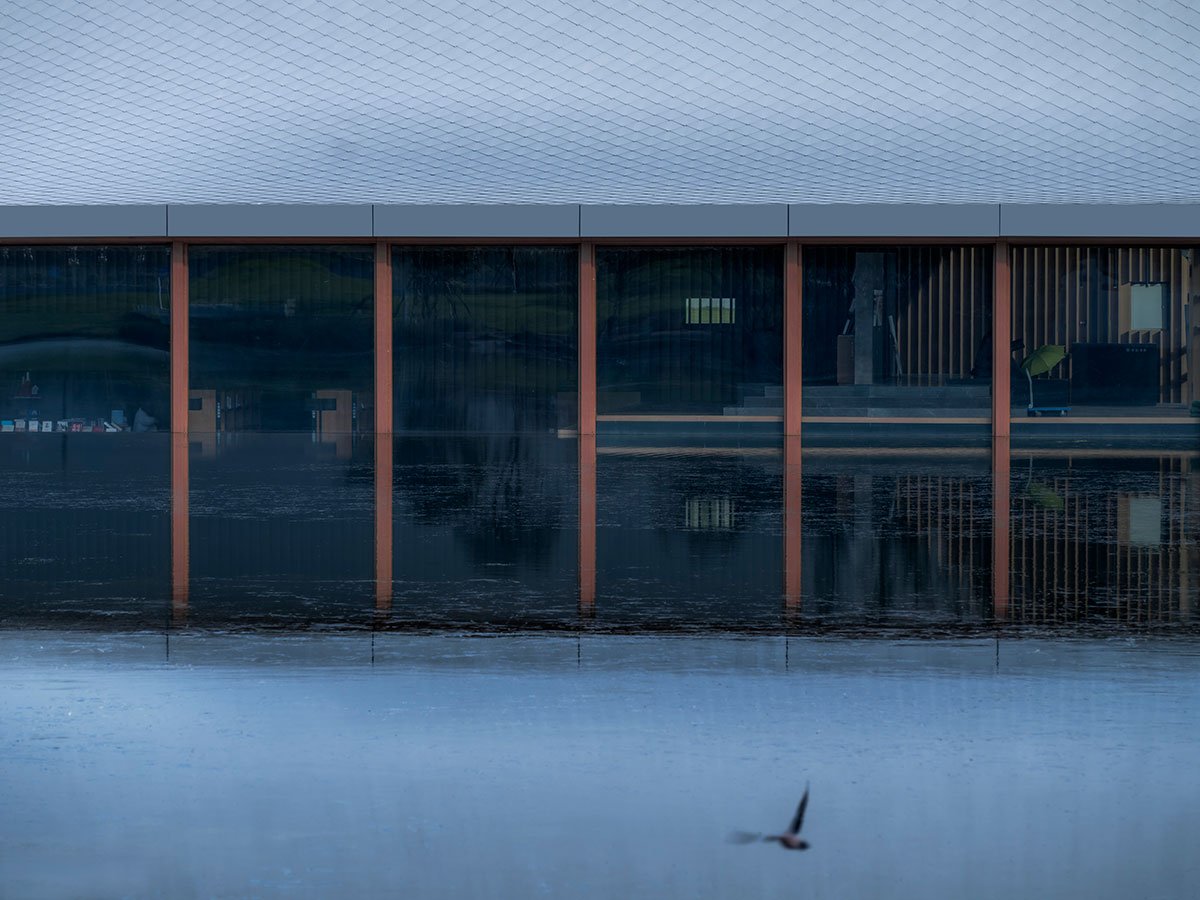

Architecture and shadow on the lake © Arch-Exist

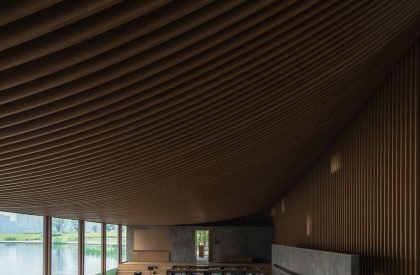

More than 700 pieces of aluminum square tubes finished with wood grain extrusion are installed for the grille ceiling, forming a united aura. Each piece is bespoken with its individual curvature for assembling as a smooth hyperbolic ceiling surface. Insisting on obtaining a neat appearance, the mechanical extraction ducts, the smoke detection system, and lighting circuits are strategically wrapped in the gap between the ceiling and the steel frame of the roof. The grille extends from the ceiling to the foot of the wall to stress the tension of the space. The interior is presented most simply and purely, using two materials, wood grain, and concrete texture paint as the base color of the space, to eliminate complicated decorations and bring a more comfortable visual experience for users.

Chengdu Xinglong Lake CITIC Bookstore | Muda Architects

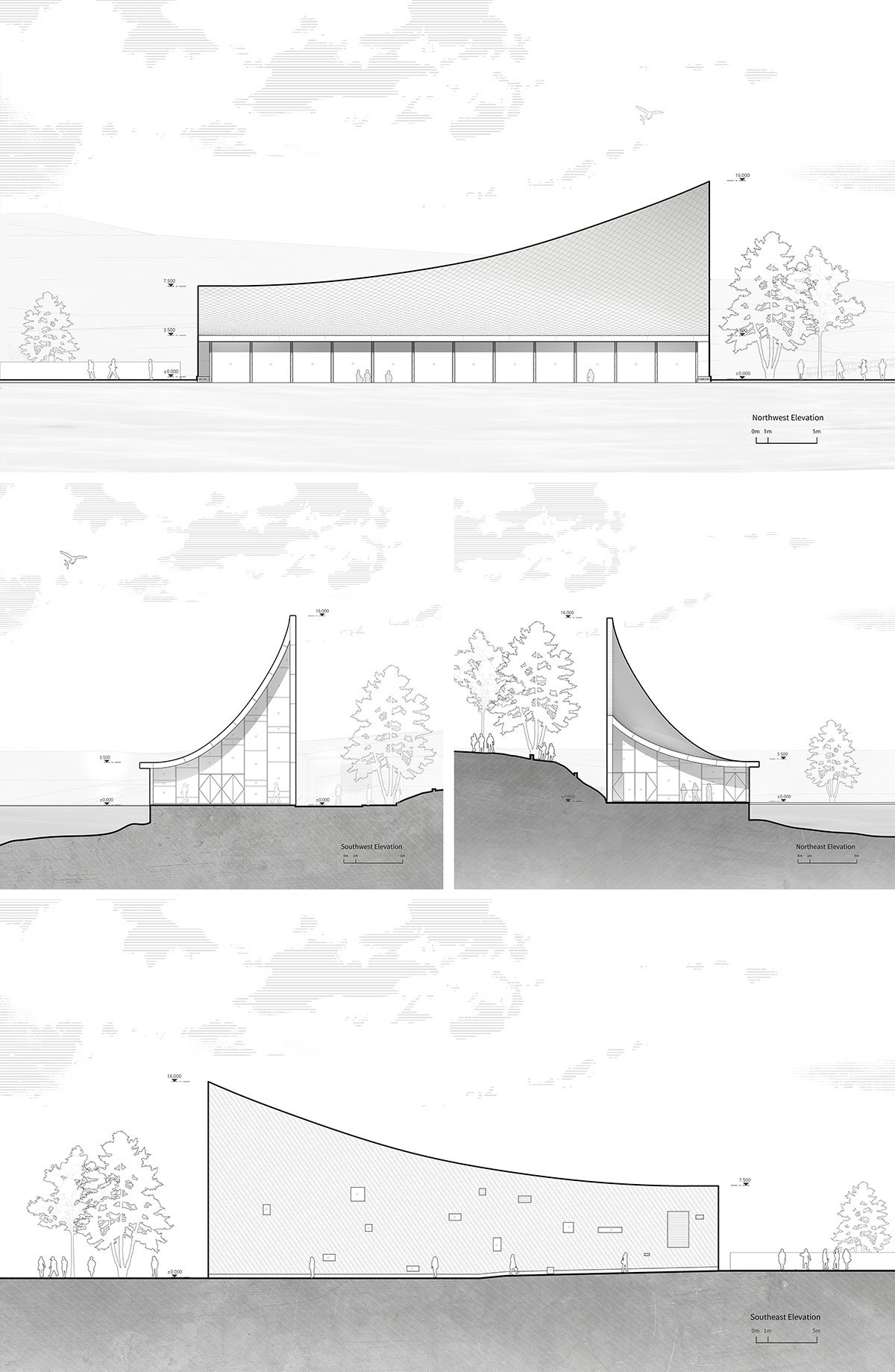

Section © Muda Architects

To ensure the quality, the underwater section of the glass curtain wall is calculated under the consideration of the highest water level during the flood season, and it has been tested for waterproof performance by multiple times. The watertight process mainly focuses on the resistance of the glass wall against the water pressure and the airtightness between the column and glass, and it is also designed to reduce the possibility of contacting water and steel structure. Hollow glass panels with double-sided adhesive strips are adapted to meet the functions and requirements. Using 3.2m x 4m form and four layers of stalinite along the lake, the design achieves outdoor water pressure resistance, indoor impact resistance, and building insulation and energy saving. With neither winding corridors, nor mysterious concealment, the whole space gives the reader unlimited possibilities and great physical and mental freedom.

Chengdu Xinglong Lake CITIC Bookstore | Muda Architects

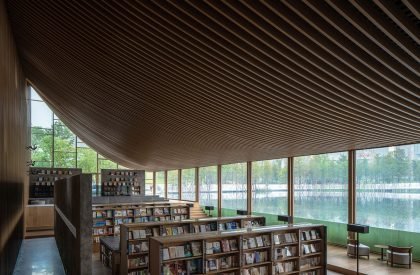

Interior -vertical © Here Space

MUDA-Architects uses architectural language to propose the relationship between man and books, man and nature, and man and space. Within this building, mountains, lakes, and things are equivalent to people, we regain interest in each other while forgetting ourselves; within this building, people are awakened to face their true selves, and to repair degraded senses.

Chengdu Xinglong Lake CITIC Bookstore | Muda Architects
The Architect and the lake © Here Space
