Excerpt: House M designed by TAA (Taillandier Architectes Associés) is an extension to the initial chartreuse and is positioned on the southern flank of the existing construction so as to preserve the characteristic detailing of the facade. The choice of a terraced roof for the extension allows the new volume to slide underneath the overhang of the existing tiled roof.
Project Description
[Text as submitted by architect] The House M project is an extension to a single-family house in the residential Minimes neigbourhood, in the heart of central Toulouse (Occitanie region, France).
The houses of the neighbourhood are generally set in deep plots and often have a small secondary house at the end of the garden called a “chartreuse”, as is the case for this house. In this project, the chartreuse is maintained and an extension is built to accommodate the living area and the parental suite so as to create a comfortable family house large enough for a family of four. An annex containing the pool house and a guesthouse, completes the brief.
The extension to the initial chartreuse is positioned on the southern flank of the existing construction so as to preserve the characteristic detailing of the facade. The choice of a terraced roof for the extension allows the new volume to slide in underneath the overhang of the existing tiled roof and to clearly differentiate itself from the traditional form of the existing structure, typical of the Toulouse area. It is a 21st-century re-interpretation of the chartreuse.
The overhang of the terraced roof reinforces the horizontal expression of the project and draws a defining horizontal line sliding in underneath the brick detailing of the existing facade, whilst also reducing the perceived depth of the roof structure. Underneath the roof forming a slim concrete awning, the extension is composed of full-height glass facades creating total transparency between the living areas and the gardens on either side. The load-bearing structure is composite, combining a lateral concrete load-bearing wall with metal pillars so as to completely free the space of the living area as well as the façades of load-bearing elements.
The wing formed by the existing chartreuse is reorganised to accommodate two children’s rooms as well as the kitchen in the main section of the building in which the ceiling is demolished to open the space into the roof and create a more spacious room. In both the new extension as well as in the existing building, the new spaces created to accommodate service rooms, such as the walk-in wardrobe or the restroom, are designed like elements of furniture articulating the main living areas.
The outhouse is positioned at the front of the plot, within the vertical plane defined by neighbouring construction. It includes a guest suite, a storage room for bicycles, and a poolhouse. The outhouse is designed in coherence with the extension to the main house, in prefabricated concrete opened by large windows onto the garden. On the western façade, the openings of the technical areas and the doghouse are composed of expanded metal panels.
On the plot, each element of the project including the main extension, the pool and the outhouse, is positioned in sliding alignment with the initial chartreuse building. The main entrance of the house is thus naturally positioned in the dual-aspect glass volume linking the existing house and the main extension. The positioning of the main house towards the back of the plot also creates a generous open-ground front yard and a smaller, more intimate rear garden which open the parental bathroom as well as the children’s playroom.
The connection between indoor and outdoor spaces is generous and consistent throughout the project, whether from the living room to the front yard or vice-versa. The reference to Mies Van der Rohe’s work is clear and fully acknowledged.

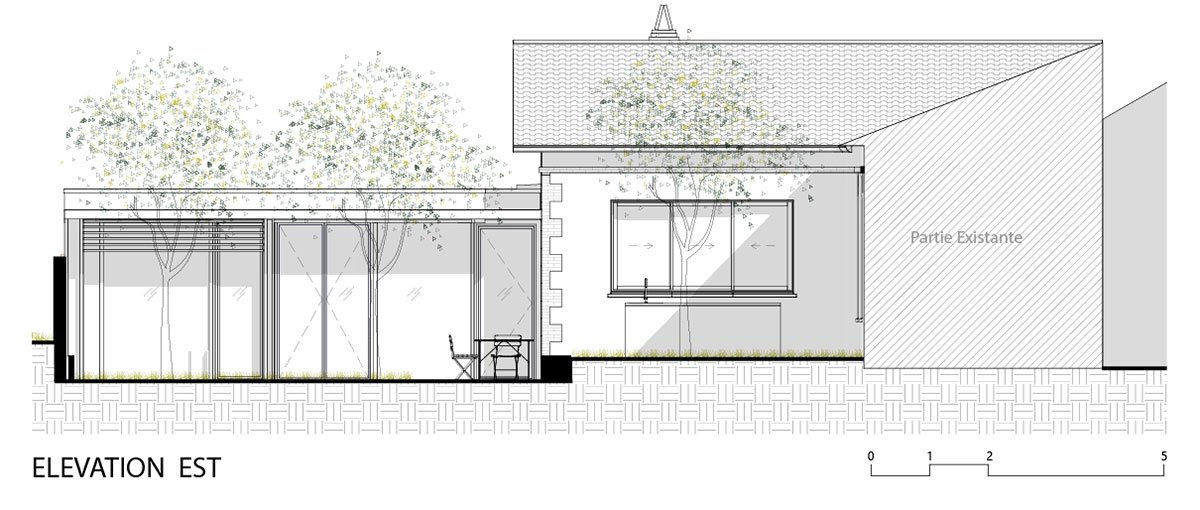

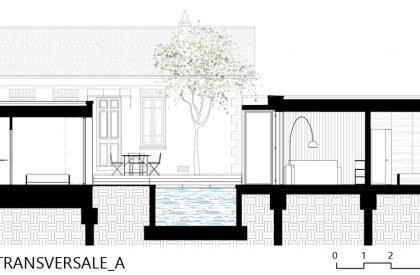

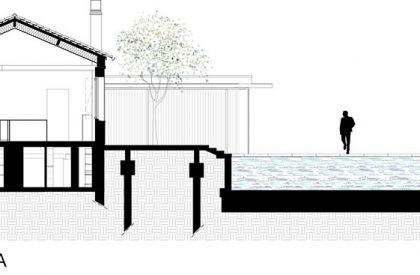

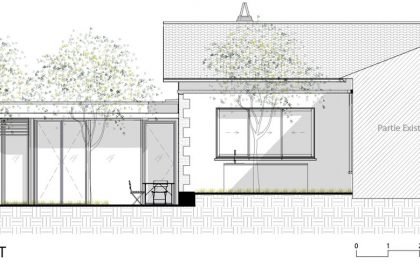

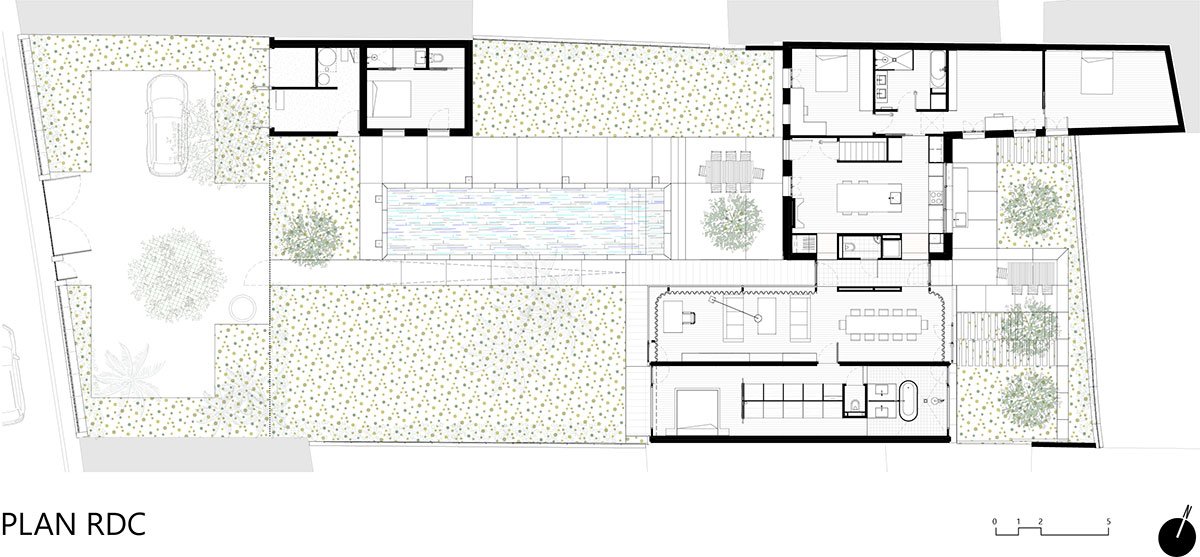

Drawings
Images
