Apparatus of Amusement: A Retail for Post Consumption | Bachelors Design Thesis

Save
Apparatus of Amusement: A Retail for Post Consumption | Bachelors Design Thesis

Information

  • Project Name: Apparatus of Amusement: A Retail for Post Consumption
  • Student Name: Aum Gohil
  • Awards: ‘Asia Young Designer Award’ Gold Winner, Shortlisted for COA National Awards for Excellence in Architectural Thesis 2021, & JK AYA Best Architecture Student of the Year Award 2021
  • Softwares/Plugins: Rhinoceros 3D , Adobe Photoshop , Adobe Illustrator
More Info Less Info

Excerpt: ‘Apparatus of Amusement: A Retail for Post Consumption’, an architectural bachelors design thesis by Aum Gohil from Rachana Sansad’s Academy of Architecture, Mumbai University, India, tries to experiment with alternate productive relations to mindless consumption in the context of Shopping Malls. The project aims to reverse the conventional notion of retail in a hyper-mediated urban setting, which induces passivity in the consumers by oscillating roles of a consumer to provide radical solutions to move towards ‘circularity.’

Architectural Concern:

The trigger that started the inquiry for ‘Apparatus of Amusement” was the understanding of the age of the Anthropocene and the impact that humans have created on their surroundings through the commodified world we live in. The landscape of production and consumption in the current urban geographies is dominated by segregation; most of our public spaces have become commercialised spaces dedicated to consumption; meanwhile, spaces of production are tucked away in the folds of the urban fabric, in industrial estates, or in faraway countries. A culture of fast consumption of goods and trashing them is induced in society.

Apparatus of Amusement: A Retail for Post Consumption | Bachelors Design Thesis
Consumerist mechanism in the context of Shopping malls

Tracing the roots that have led up to this capitalist setting of society, the factors affecting it, and the consumerist strategies that lead to a numb state of mindless consumption by deciphering the epitome of the consumerist typology of the ‘shopping mall,’ these extravagances lead to the collective notion of excesses termed ‘waste’.

Further, the study tries to map the usage journey of an everyday object in an urban setting in Mumbai by understanding the formal excess network, the role of the informal agents, and the existing repurpose network. The project offers alternate repurpose solutions for the second life of the objects categorised into household objects, fashion, and electronics. The proposed network of these post-consumption processes informs the shortcomings of our primary system of waste management and the exceeded landfills.

Apparatus of Amusement: A Retail for Post Consumption | Bachelors Design Thesis
Consumerist mechanism in the context of Shopping malls

The project aims to reverse the conventional notion of retail in a hyper-mediated urban setting, which induces passivity in the consumers, by using the post-consumption objects in our ‘buy and discard’ society and the oscillating roles of a consumer to provide radical solutions to move towards ‘circularity.’

Save

Site Context

Apparatus of Amusement: A Retail for Post Consumption | Bachelors Design Thesis
Repurposing of Prime Mall, Irla, Mumbai, India

The proposed alternate systems are experimented within an existing retail setting of a dysfunctional shopping mall, the Prime Mall of Irla Market Street, Mumbai, India. The street has a vibrant retail character that fails to reflect when the typology of a mall is inserted in such a scenario. While mapping the current use of the mall, it was concluded that 60 percent of the mall was not functioning, and hence it needed programmatic injectors to create a life for the structure around it.

Design Process

The project proposes three scales, starting at the systemic level.

1. Repurpose a decentralised system where a person gets his used objects to give a second life to them, incentivizing themselves from their self-consumption, diverting them from landfills, and getting them back to the place where they were first consumed. The objects are classified under ‘plastic household’, ‘garments fashion’ and ‘smartphone electronics,’ which are means of architectural experimentation.

Apparatus of Amusement: A Retail for Post Consumption | Bachelors Design Thesis
Illustration showing the Assembly area with its required programs

2. Repurposing the mall where the dysfunctional architectural typology has its structural components retained while adding new programmatic injectors to reconfigure and critique the spatial syntax of a mall

Apparatus of Amusement: A Retail for Post Consumption | Bachelors Design Thesis
Design Intervention in Existing Shopping Malls

3. The Irla Street project, where the busy retail street has heavy pedestrian footfall as well as vehicles causing traffic congestion. Hence, a proposal to make Natyakar Gadkari Marg a one-way road is implemented, giving the additional space back to the public as an approach towards streets for people. The street proposal focuses on pedestrian and market activities where a larger flux of people can be accommodated while reducing the chaos between vehicles and pedestrians.

Apparatus of Amusement: A Retail for Post Consumption | Bachelors Design Thesis
Component of Assembly area

Further, architectural strategies of amusement for engaging the consumers, labour as an energy mechanism, and roleplay as users are driving factors for the design process, with conscious design decisions on colours defining the processes. Amusement as a heightened-spectacularization of the mall engages the consumers in a hyper-real scenario where the desire to repurpose objects is directly connected to the act of pleasure and gratification.

Apparatus of Amusement: A Retail for Post Consumption | Bachelors Design Thesis
Illustration showing the Recycle area with its required programs

Labour Mechanism is a co-creator of everyday objects using energy, where work and craft in a post-Fordist setting become a process of participation in the making rather than just mindlessly consuming. Roleplay is shifting a person’s job to experience the whole process instead of mere consumption. The person becomes a part of the assembly line in the production of crafts.

Apparatus of Amusement: A Retail for Post Consumption | Bachelors Design Thesis
Illustration showing the exchange/ upcycle & recycle area with its required programs

Decentralised system in demonstrating the various scales at which the repurpose system can take place. Built typologies and mobile communities can aid in a system that takes the load off the conventional waste system. Deconstructing the syntax of a mall would break the embedded passivity of a stereotypically centrally placed atrium by creating spaces that would change the syntax of the mall.

Apparatus of Amusement: A Retail for Post Consumption | Bachelors Design Thesis
Illustration showing the electronics area with its required programs

Repurpose as using the existing situation is an opportunity consisting of elements, qualities, and capacities that can be integrated, reactivated, and reused. Each existing structure offers materials that can drastically reduce the need for new materials. Each site permits invention and imagination.

Final Outcome

Apparatus of Amusement: A Retail for Post Consumption | Bachelors Design Thesis
Ground floor Plan
Apparatus of Amusement: A Retail for Post Consumption | Bachelors Design Thesis
Longitudinal Section

The wall of labour is the protagonist of the space. The role of the facade element as a mediated face is challenged by inserting it as a mediator between the indoors and the outdoors while holding programmatic spaces and a visual anchor. The wall becomes the protagonist because it has simple machines and mechanisms where a process takes place. Apparatus for repurposing are devices that have simple machines and mechanisms where a process takes place. A roleplayer takes part in these apparatuses to perform a task, which helps in repurposing.

Apparatus of Amusement: A Retail for Post Consumption | Bachelors Design Thesis
Section showing the inside and outside connection with the context of Shopping Mall
Apparatus of Amusement: A Retail for Post Consumption | Bachelors Design Thesis
View of Malls from the Irla Street, Mumbai, India

The central event space is designed for the role-players’ reactions and actions recorded throughout the day, with the leaderboards displaying the role-player with the most points. Also works as a gathering place where workshops, events, and discussions on newer developments in apparatus are held.

Apparatus of Amusement: A Retail for Post Consumption | Bachelors Design Thesis

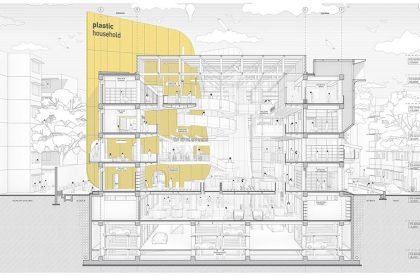

Section showing various levels of Plastic household recycling area
Apparatus of Amusement: A Retail for Post Consumption | Bachelors Design Thesis
Section showing various levels of the Garment recycling area
Apparatus of Amusement: A Retail for Post Consumption | Bachelors Design Thesis
Section showing various levels of the electronics recycling area

The Hall of Experiments is designed at the end of the journey, where the paths converge, and the space is rented for exhibitions and events to spread awareness about newer developments in the field of repurposing. The labyrinth consumer’s playground is free from the hyperreal space that the apparatus of amusement offers; where the person is in a labyrinth landscape as a calmer sensescape that is away from the vibrant street. Outdoor installations can also be held in this space.

Apparatus of Amusement: A Retail for Post Consumption | Bachelors Design Thesis

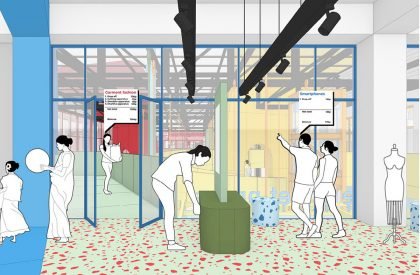

Interior view of engaged people in various activities
Apparatus of Amusement: A Retail for Post Consumption | Bachelors Design Thesis
View of Irla Street, Mumbai, India with a separation of Pedestrian and vehicular in the busy retail street.

The Irla Street project holds street apparatus as well as the existing street hawkers trying to enhance the retail rhizomatic street of Natyakar Gadkari Marg. Also, the upcoming metro station will increase pedestrian footfall, which the street will be able to accommodate. The Repurpose Mobile Community, where recycling is on wheels, is an initiative where the collection and processes are concise in the size of a truck that roams around the neighbourhood and connects the nodes of these larger typologies. The facade has the functional purpose of storage as well as transparency. The collected objects and the objects in the process are stored and displayed in a transparent facade between the RCC grid.

Architectural Language:

The architectural language for the project started with repurposing the existing and not building anything brownfield. Once the structural shell was retained, the programmatic injectors were vibrant and dominated the colour of the bare concrete. Reused materials like terrazzo and debris concrete walls were used along with steel structures, giving a stark design language and a visual marker in the street and the larger context of Irla.

Apparatus of Amusement: A Retail for Post Consumption | Bachelors Design Thesis
Illustration showing the active participation of people in an assembly area

The journey for the role-players starts as a part of the assembly line, where you choose a path based on the anchors of retail for post-consumption, plastic households, garments, fashion, and smartphones and electronics. The role-players go through these individual processes to repurpose a specific object, which now gets a second life, taking the burden away from the landfill.

Apparatus of Amusement: A Retail for Post Consumption | Bachelors Design Thesis

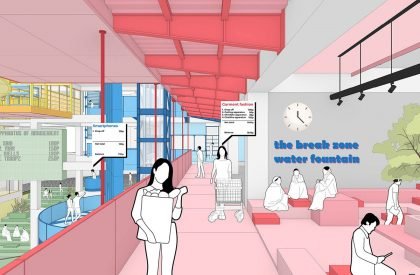

Illustration showing the reimagined malls with the insertion of various activity

Furthermore, the project tries to reframe the role of humans in the social and ecological sphere as a shift in the current paradigm for decentralising ways to manage our objects in our ‘buy and discard’ society. The consumerist culture will keep blinding us to consume mindlessly with the jazziness and spectacle that it creates. In this architecture design thesis, a systemic change with alternate solutions has been demonstrated through an architectural exercise that opens a larger discourse among various public as well as private stakeholders by creating awareness amongst consumers.

[This Academic Project has been published with text submitted by the student]
