Excerpt: A House in Yarmouk, designed by Studio Toggle, has a volume that is divided in the centre of the plot into two identical units housing the independent quarters of each of the two families. A series of light wells and balconies placed throughout the house, along with a discreet garden space on the ground floor, focuses on the design’s main narrative of diffused natural lighting.
Project Description
[Text as submitted by architect] The Yarmouk private villa is home to two brothers and their families in Kuwait. The volume is divided in the centre of the plot into two identical units housing the independent quarters of each of the two families. A series of light wells and balconies throughout the house, along with a discreet garden space on the ground floor, focuses on the project’s main narrative of diffused natural lighting.

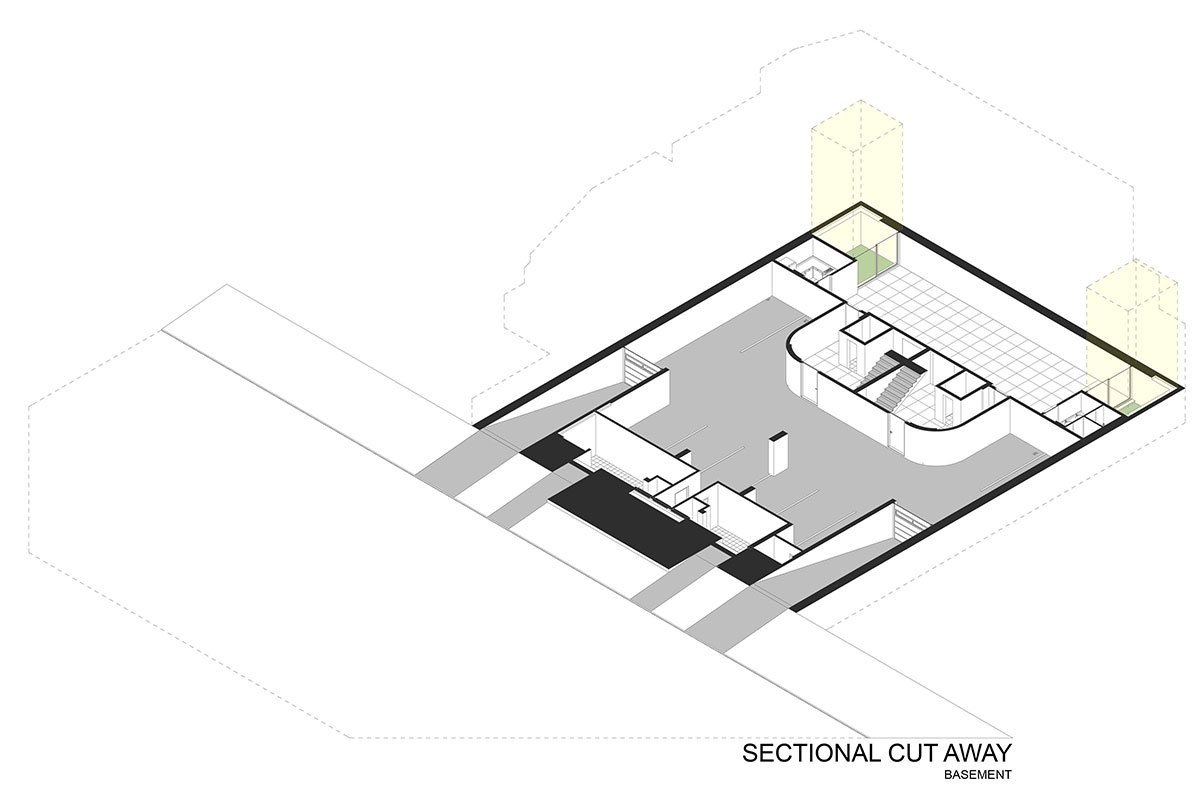

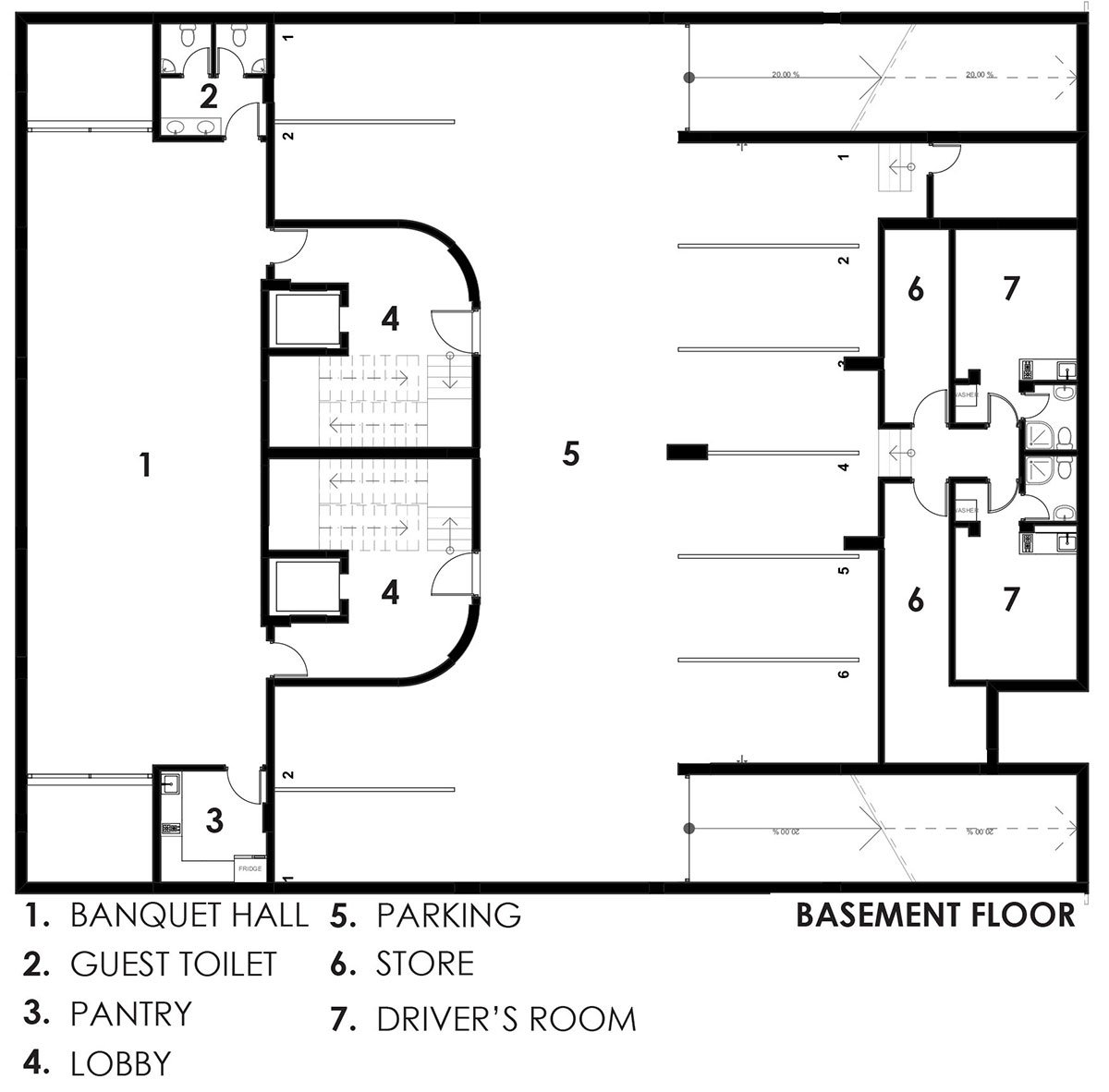

The basement of the house and its roof terrace cap the building with elements of unity and interaction, where the siblings and their families are able to get together and socialize. The basement includes a large banquet hall with light wells on either side to bring in ample natural light. The room, covered completely in travertine, sets a more classic and elegant atmosphere for larger gatherings. The basement also includes parking facilities for 10 cars and staff quarters, also naturally lit.

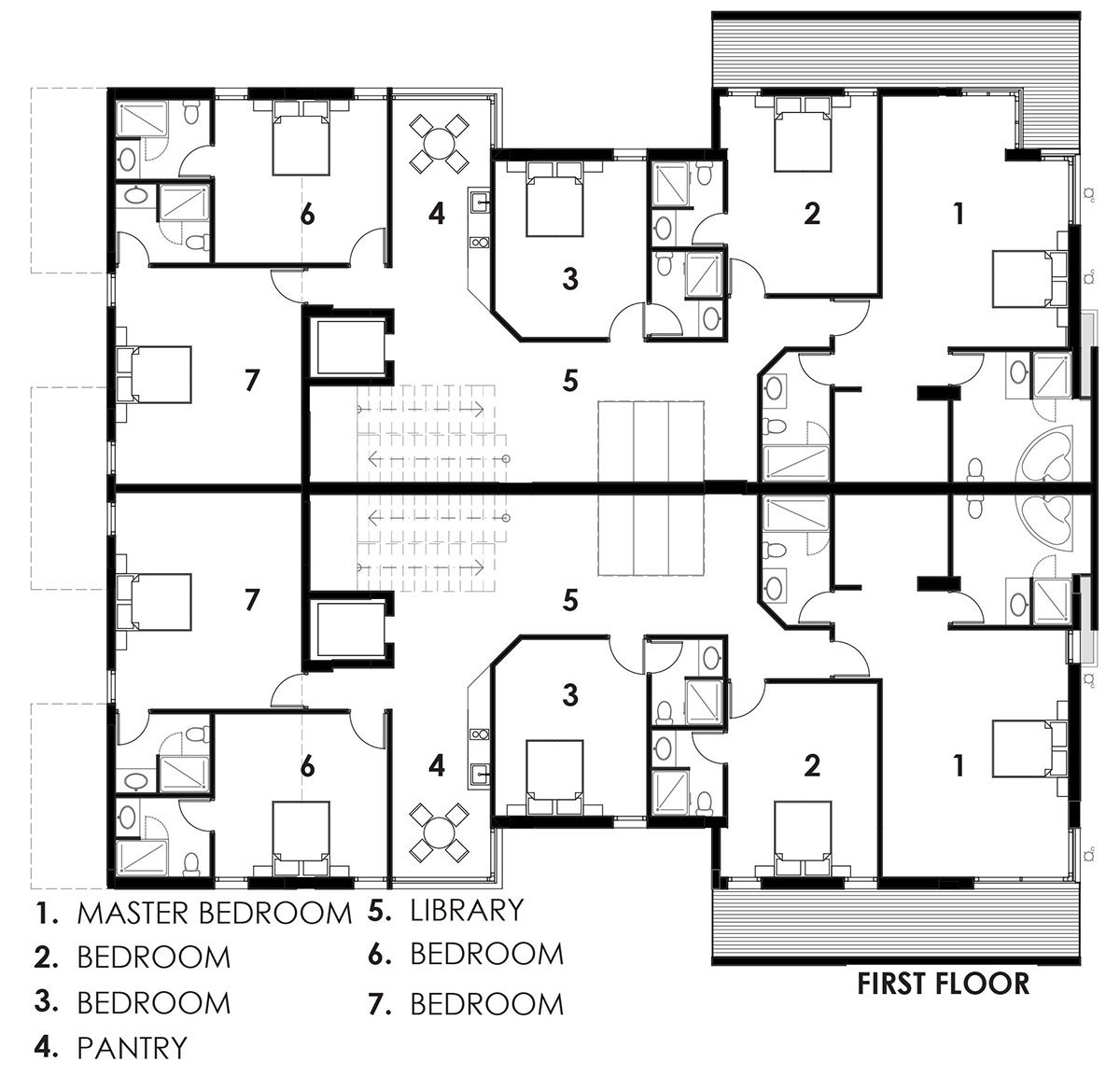

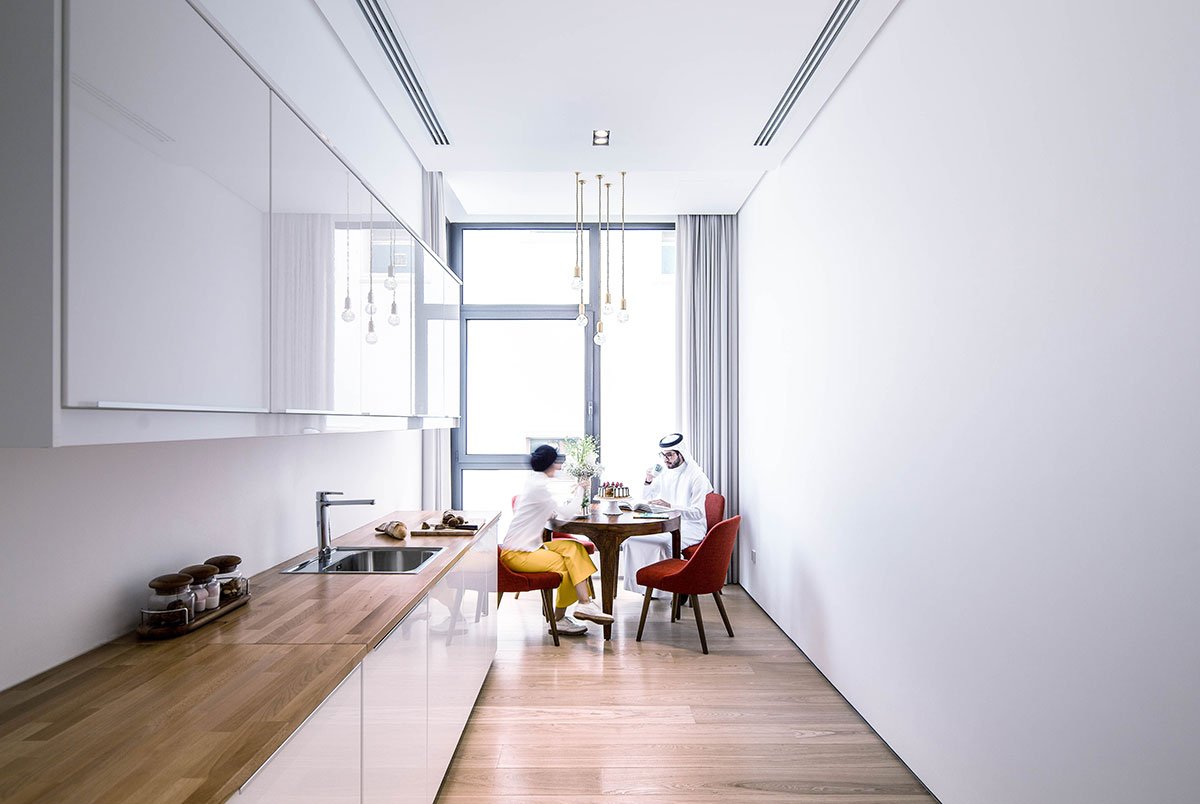

The independent units follow an identical plan although the form is articulated to disrupt symmetry. The ground floor houses the social areas for each family and is flanked by a very private garden that lights up the interiors through large sliding windows. Vertical circulation is organized along the middle of the house and the living spaces are organized along the building periphery to maximize natural light. The first floor houses the bedrooms in a similar way along the outer edge, including a sky-lit communal area and a kitchenette in the centre.

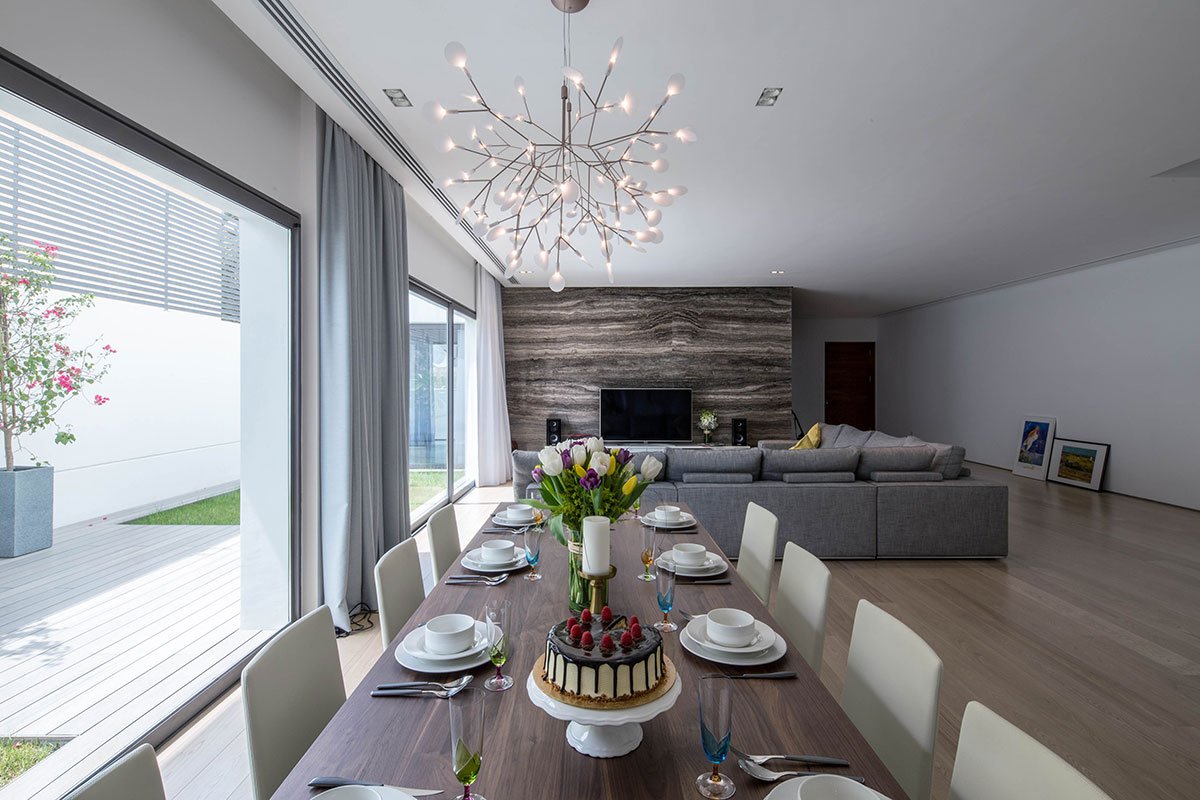

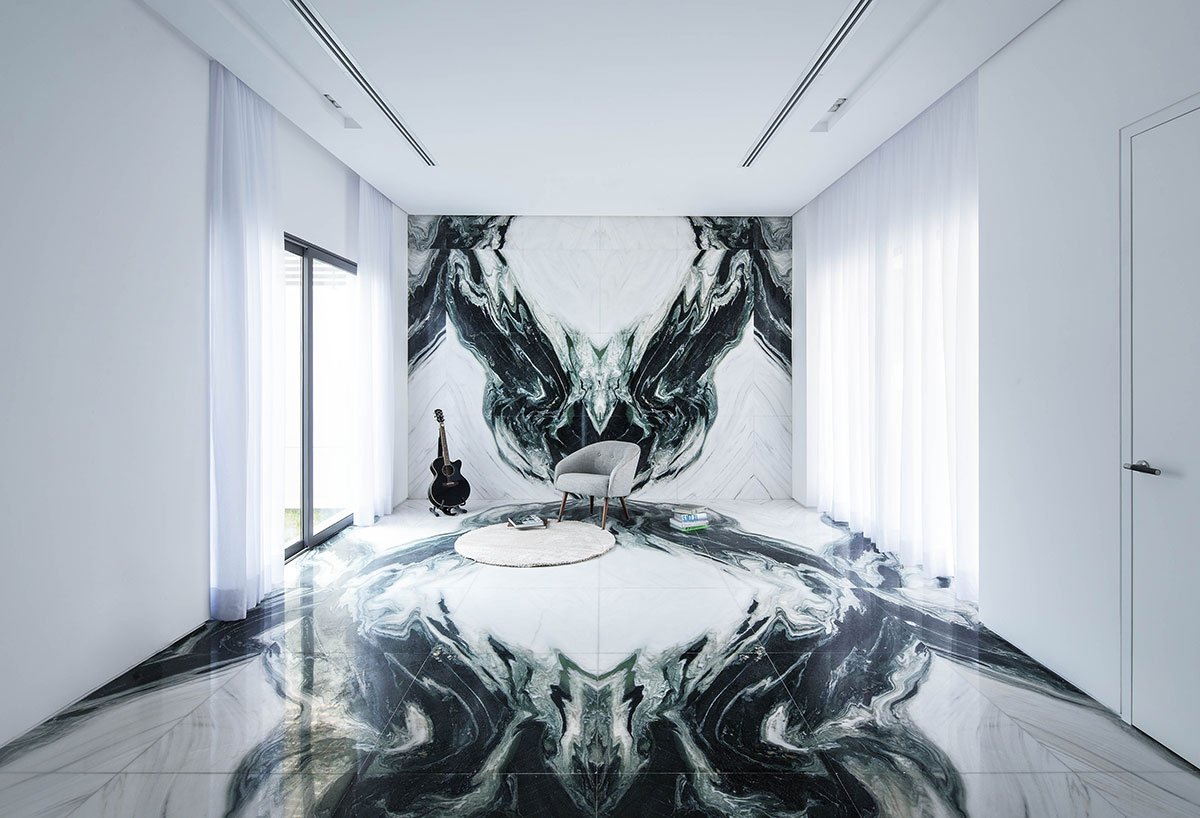

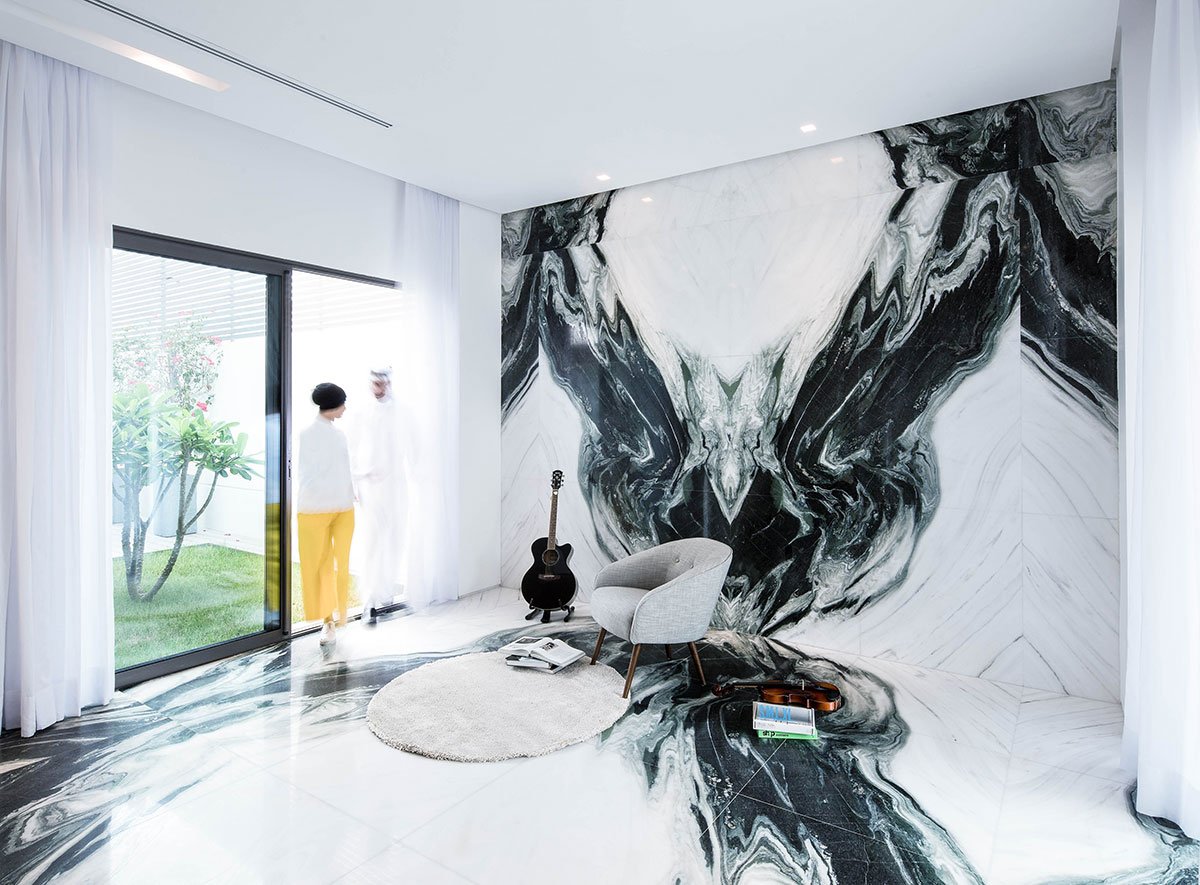

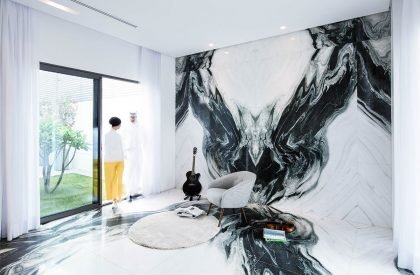

The materiality of the interiors is driven by the hierarchy of the space, ranging from a dramatic music room finished in an aptly titled scandalous marble, to the almost Scandinavian simplicity of the upper levels that house the bedrooms, pantry and the informal reading room. Subtle warm tones, achieved by a combination of silver travertine cladding with white oil-finished ash parquet, set the mood for the ground floor living and dining areas.
Client’s Vision
The clients’ vision was very straightforward but challenging as it called for a dense program relative to the plot size on a very restrictive budget. The clients were very specific on the need for two identical yet completely independent units for the two families, and dedicated shared areas for interaction. Parking in the basement was essential due to the dense program and the large footprint that would entail. A shared banquet hall, doubling up as the Dewaniya, was also part of the client’s requirement.

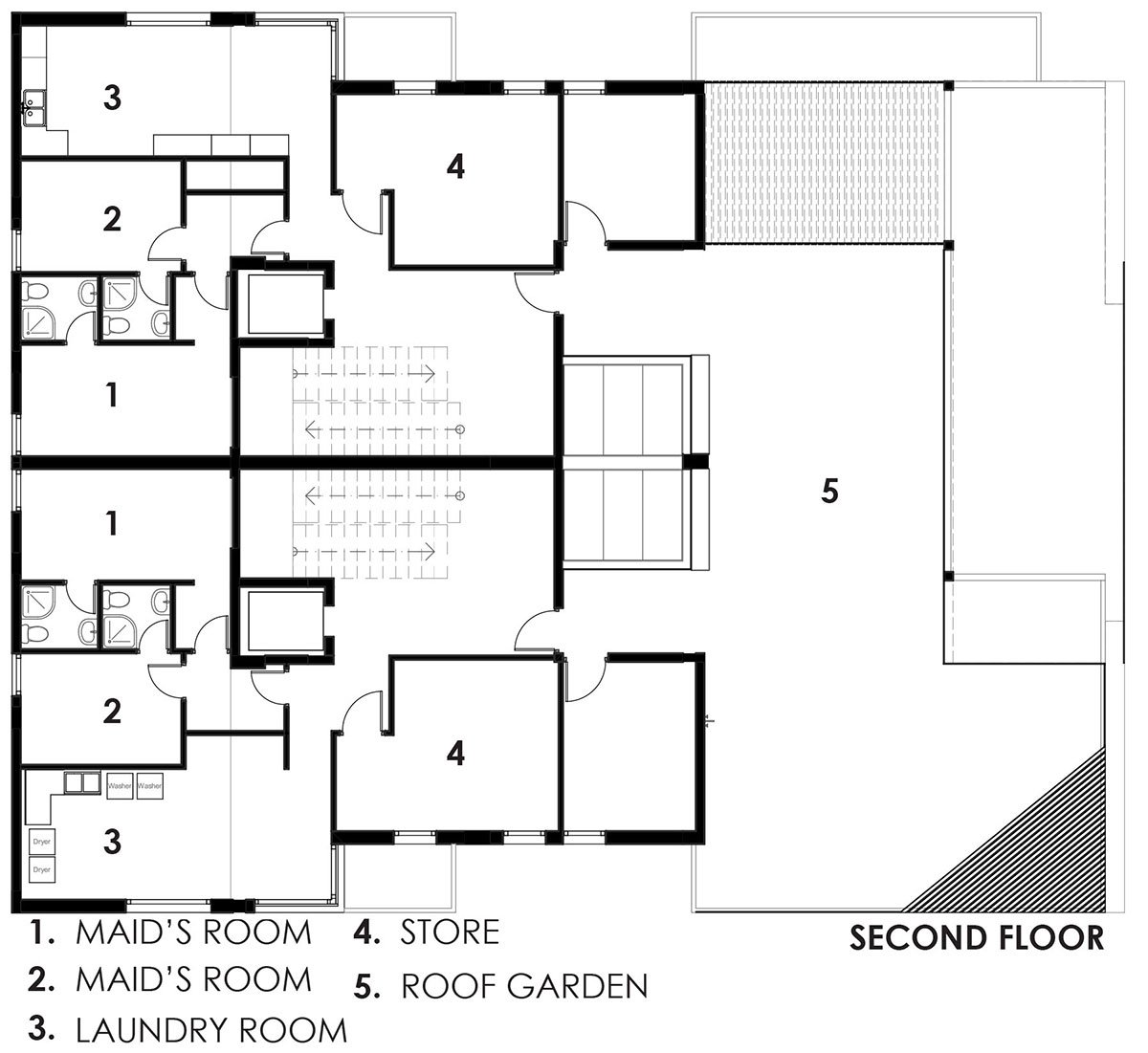

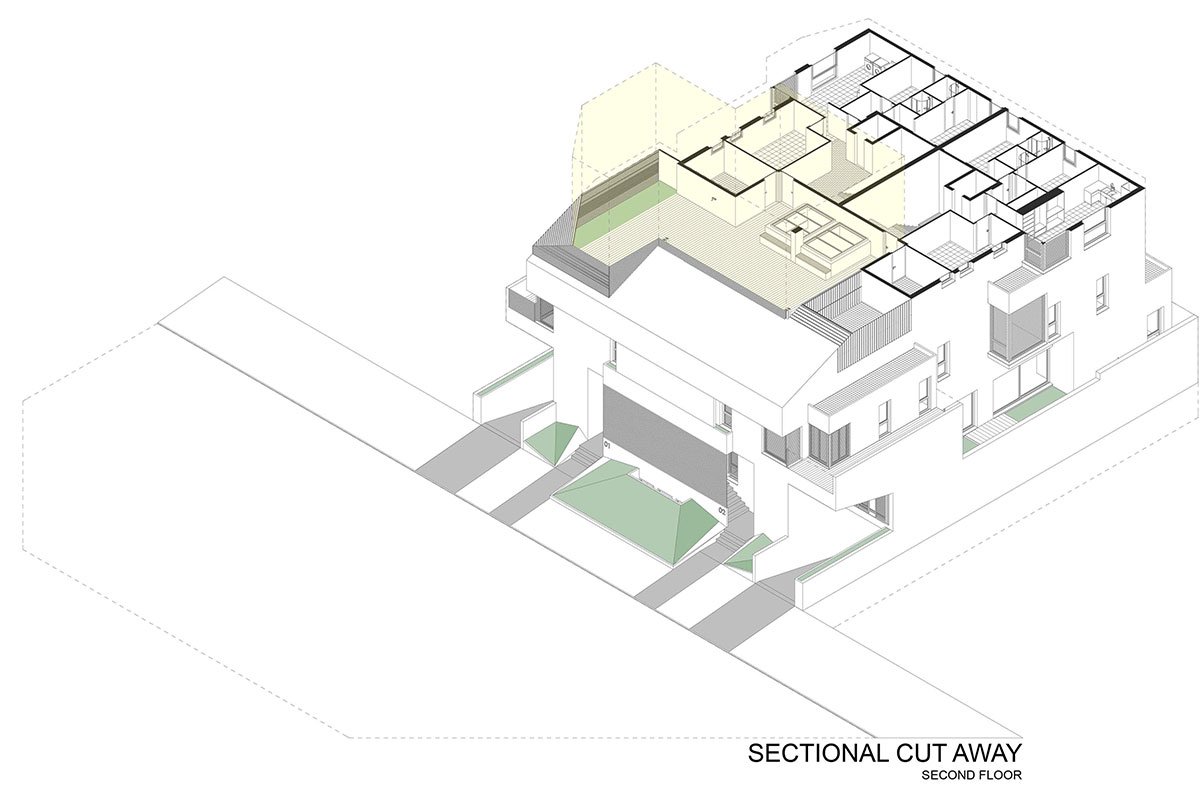

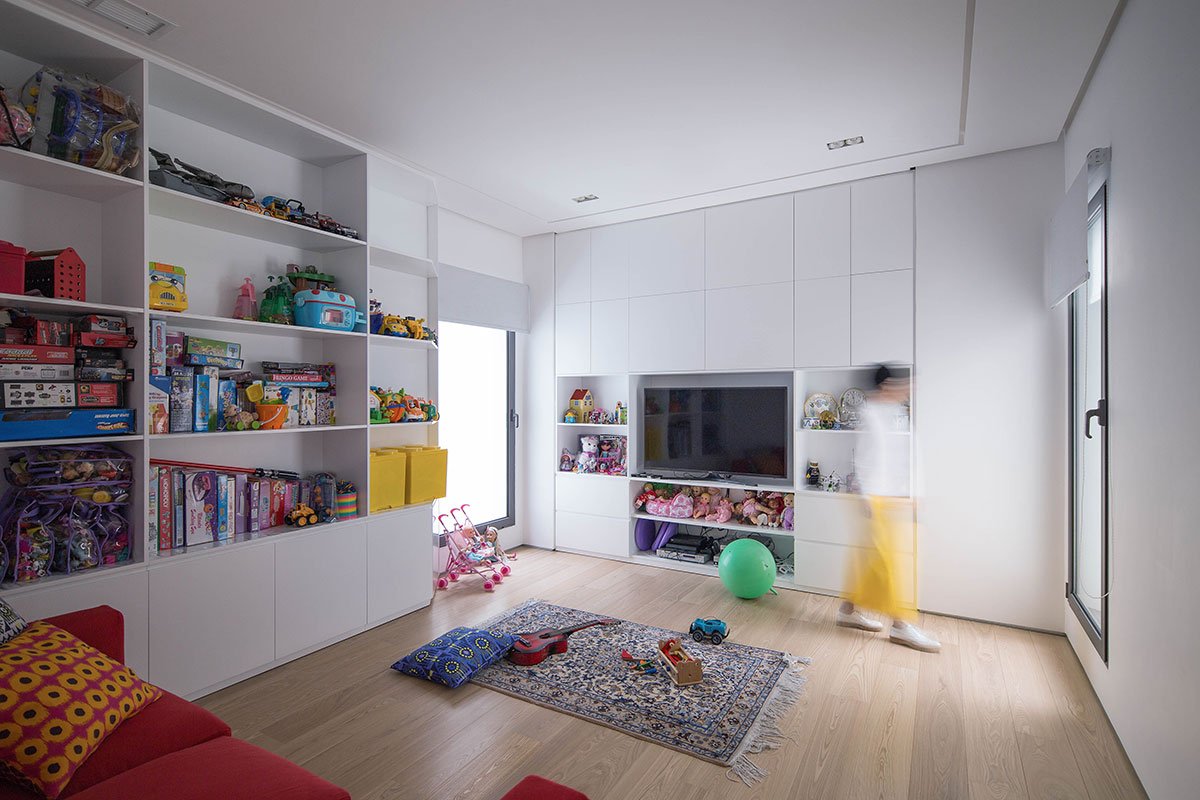

Each unit was to have 5 bedrooms with attached bathrooms; a formal living/music room, a family living and dining area, a kids’ playroom and a large kitchen. The upper floor was also to have a communal reading space and a pantry. Female staff would be on the second floor with their own suites and the male staff next to the parking in a basement suite with clerestory windows to afford natural lighting and ventilation. The essence of the client’s request was a simple and well-built house that minimizes the need for heavy maintenance and upkeep. Naturally lit, airy spaces were an essential parameter along with adequate green spaces scattered around the house.
Context

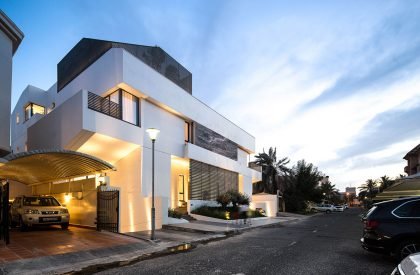

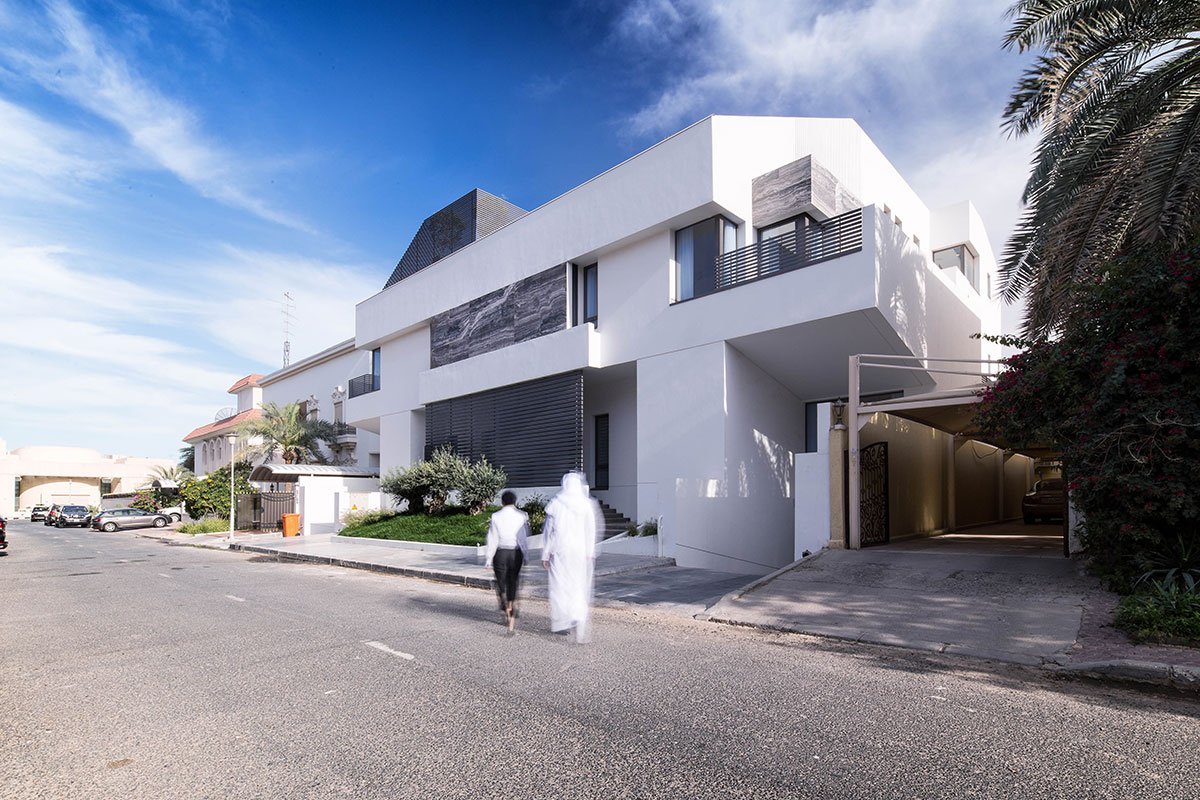

This house is located in Yarmouk, a quiet suburban residential neighbourhood in Kuwait. The extremely hot climate and its occasional dust storms and hot desert winds influence the way buildings are designed in these areas. The site faces a suburban residential street and is enclosed on the other 3 sides by adjacent houses. The surrounding built fabric consists of independent villas with a more traditional design; allowing this house the opportunity to reflect on certain elements of its surroundings, yet provide a new aesthetic to the street it occupies.
Pedestrian space is limited because cars are generally parked on the pavements, due to the lack of parking spaces and the high number of cars per capita. This issue was tackled by having a well-defined pedestrian pathway in front of the building, integrated with the landscape and also providing more than adequate parking facilities in the basement of the building.
Design
The client’s brief called for a very dense program relative to the allowed footprint and also for the two units to be identical and side-by-side. This posed multiple challenges to the architects in terms of finding a balance between enclosed and open spaces, as well as bringing sufficient natural lighting to all areas of the house.

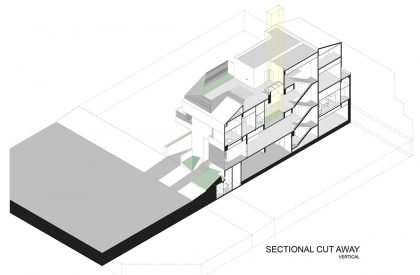

Studio Toggle chose to address these challenges in an incremental manner by creating light wells, balconies and decks affording varied degrees of transparency and porosity throughout the building. This approach resulted in a choreographed sequence of naturally lit spaces with a well-defined hierarchy dictating its degree of privacy

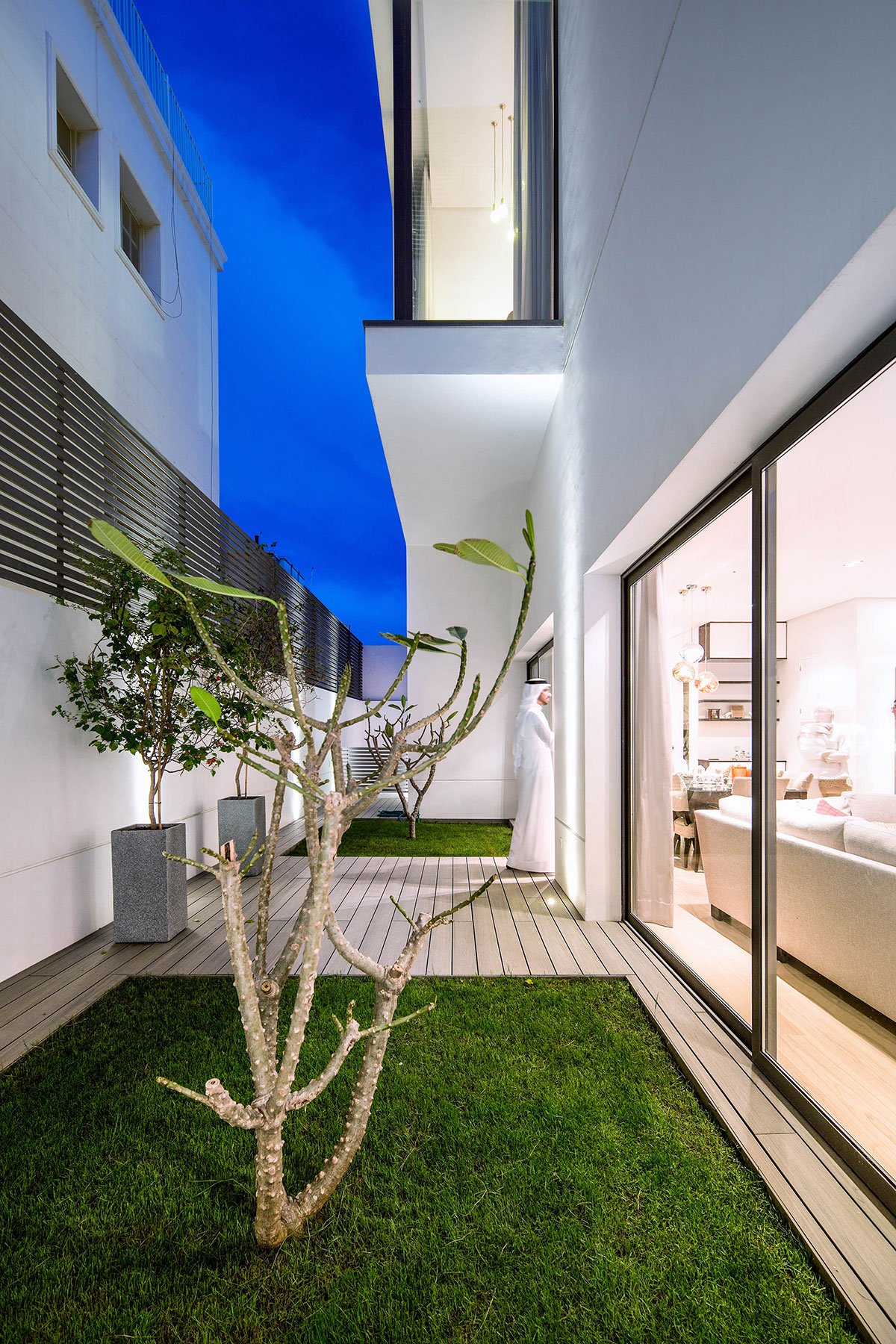

The open-plan ground floor brought natural light into the living and dining area through its wide sliding glass panels leading to the outdoor garden space towards the edge of the plot. While maximizing the natural light, overhangs were employed strategically to decrease direct sunlight and solar heat gain. The garden, with its high walls and louvres, fosters greenery and light for the social spaces, including the banquet room in the basement, while affording total privacy from neighbouring buildings.

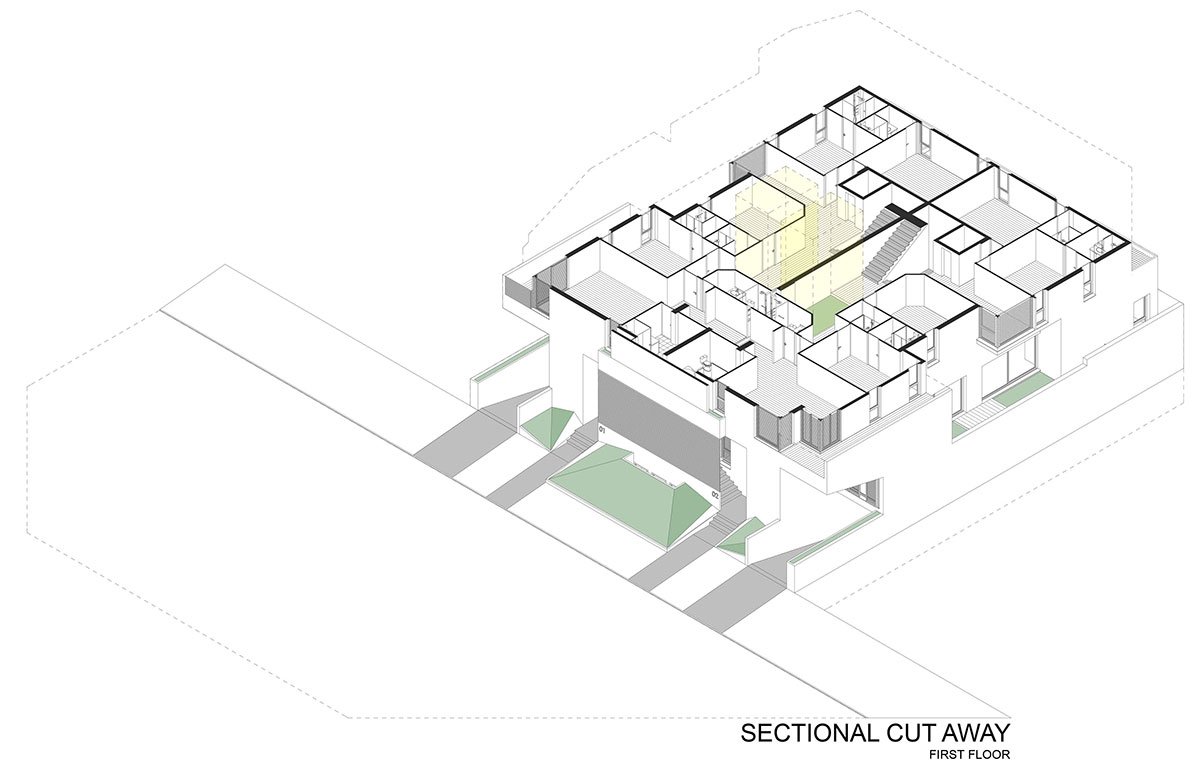

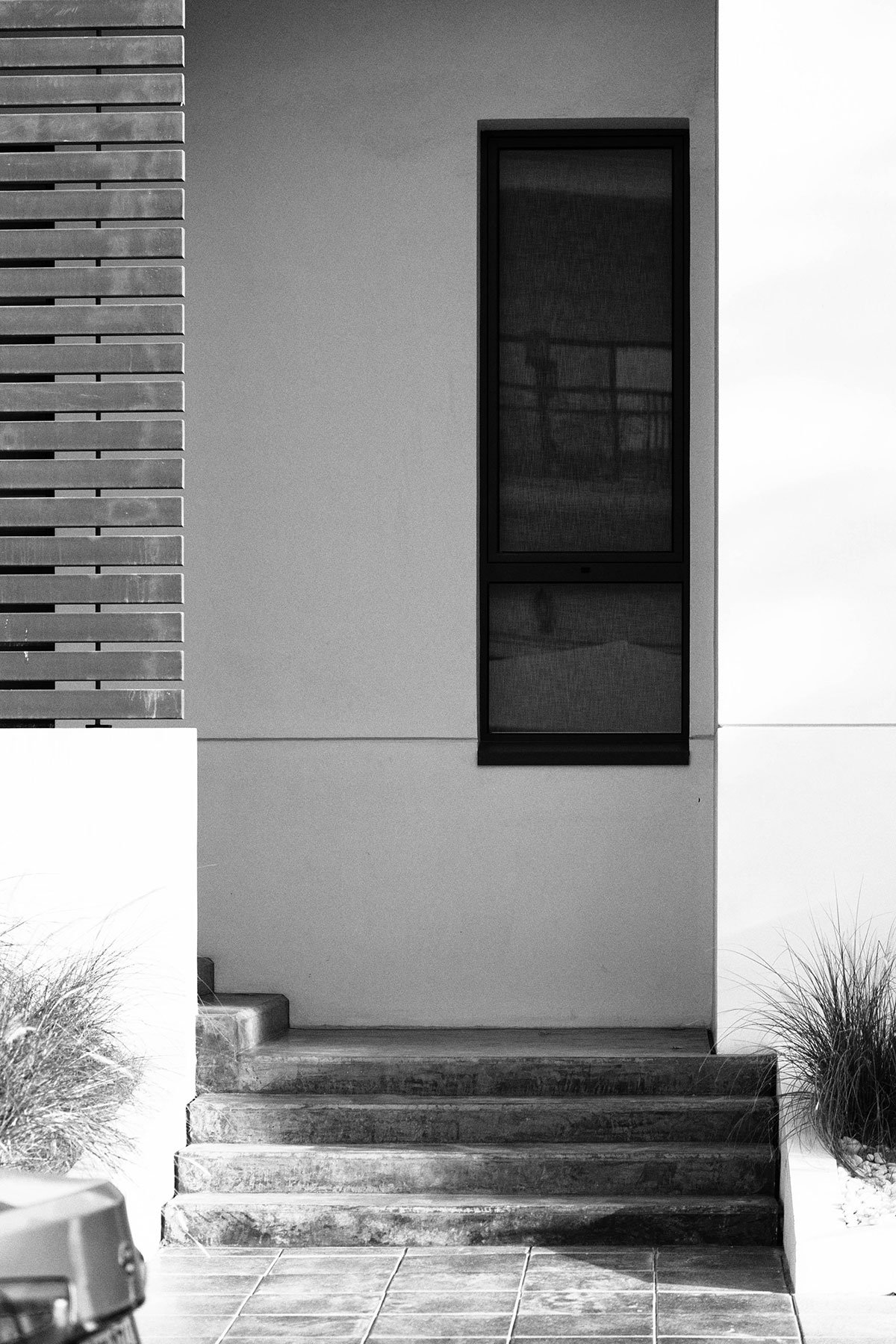

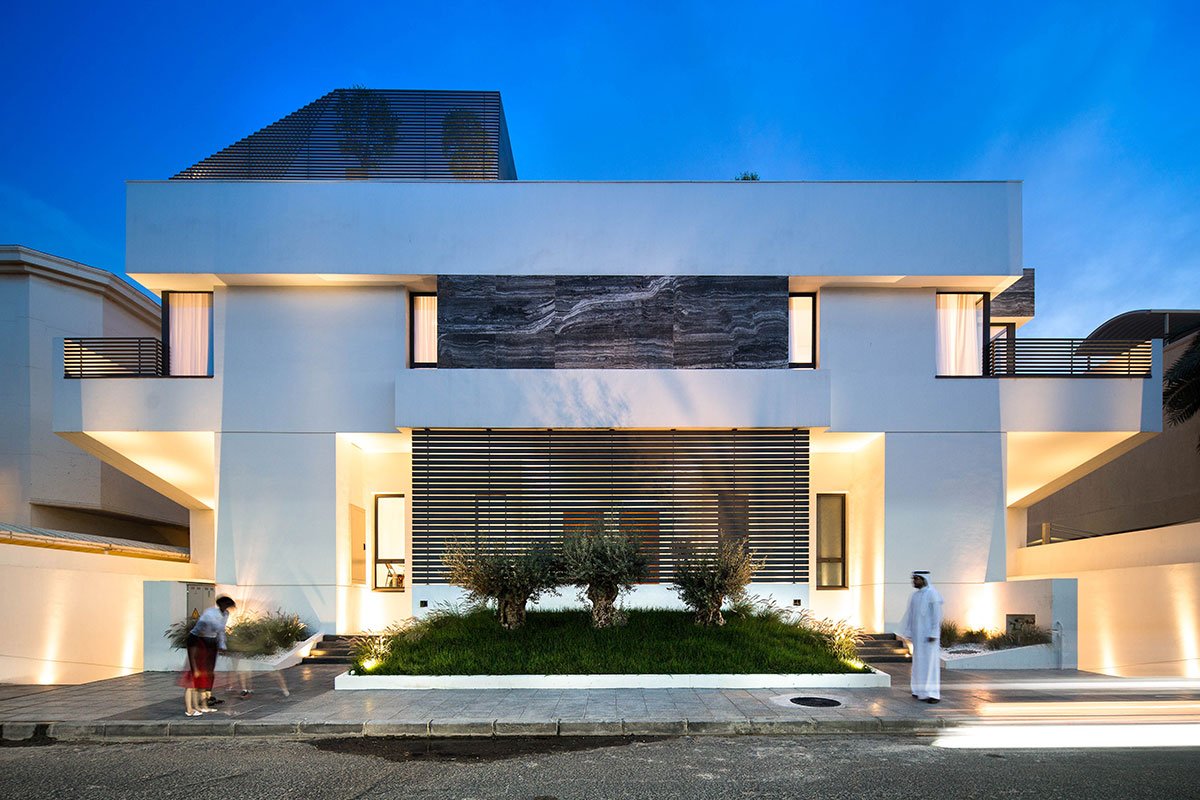

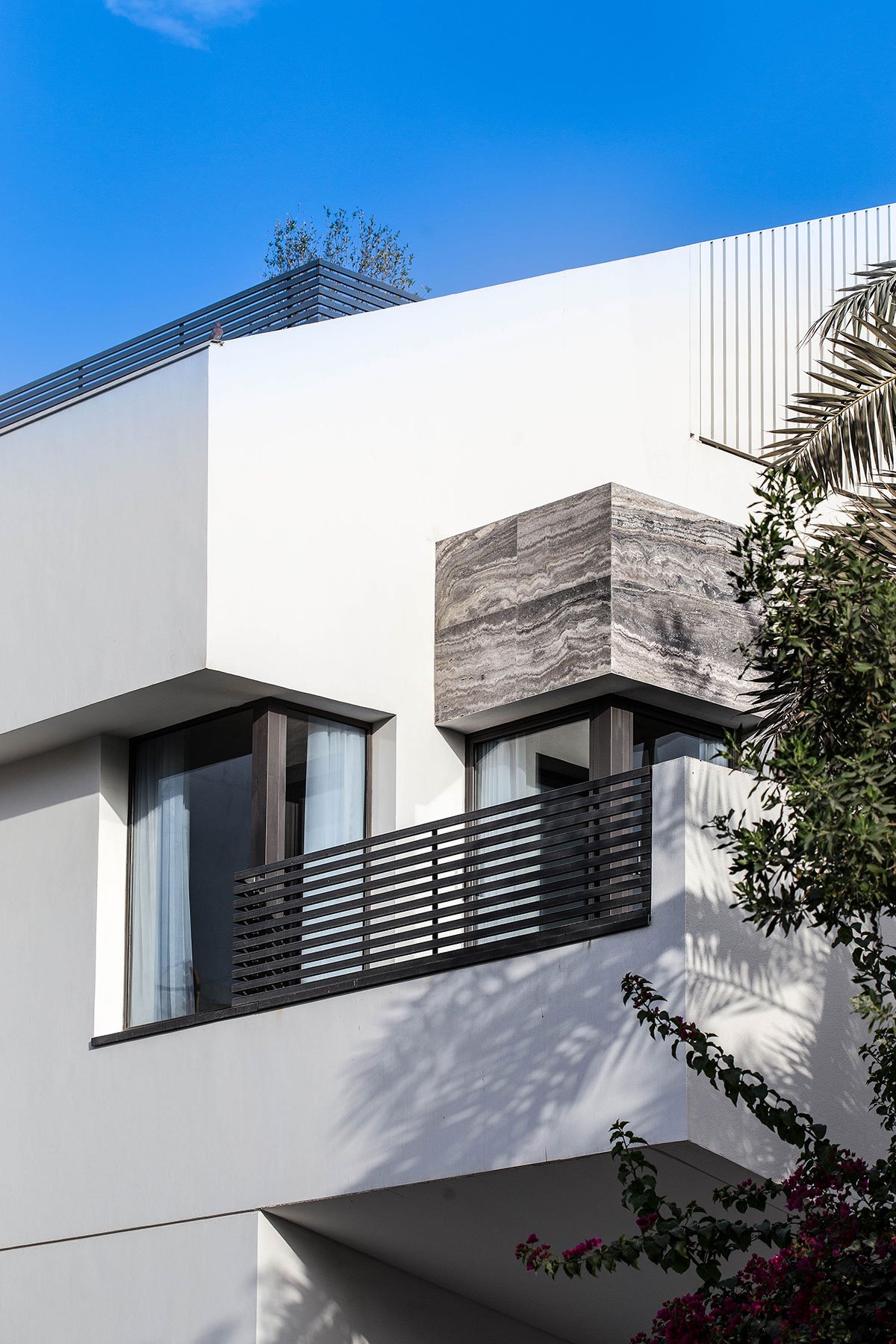

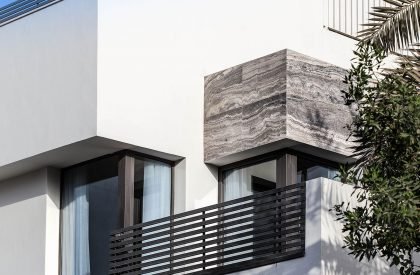

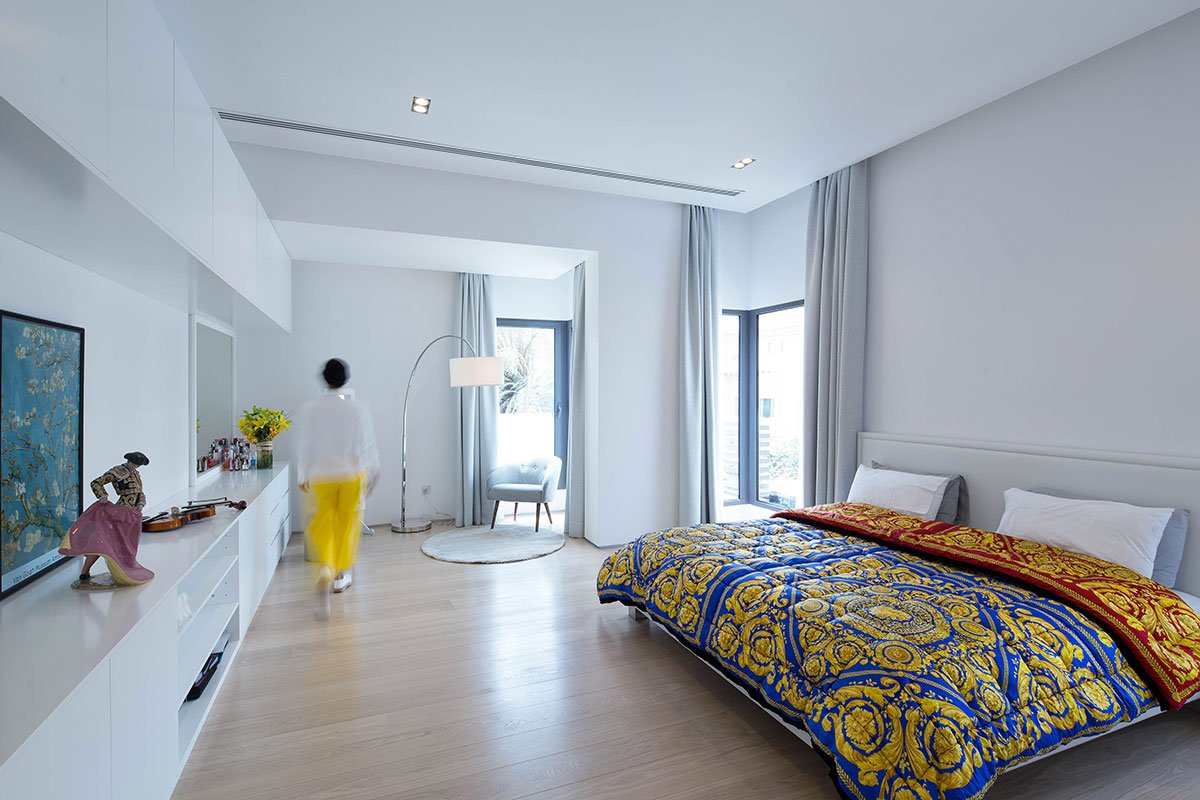

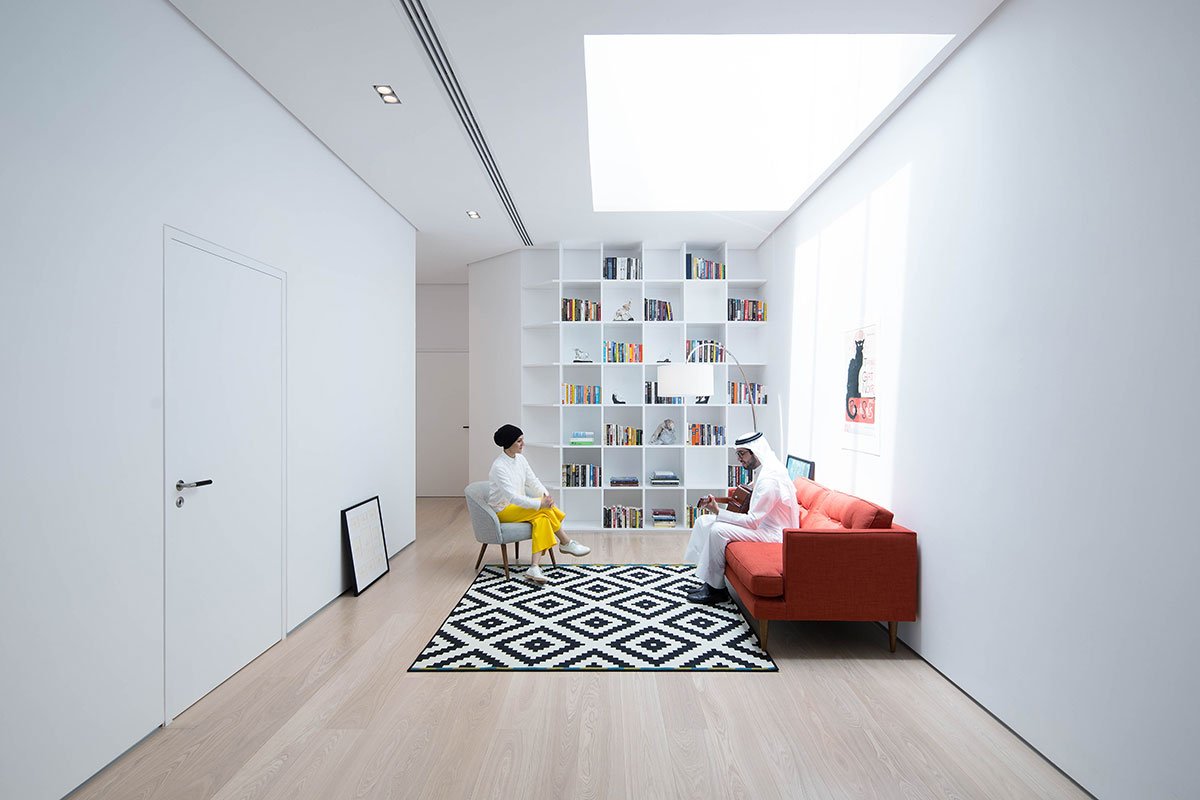

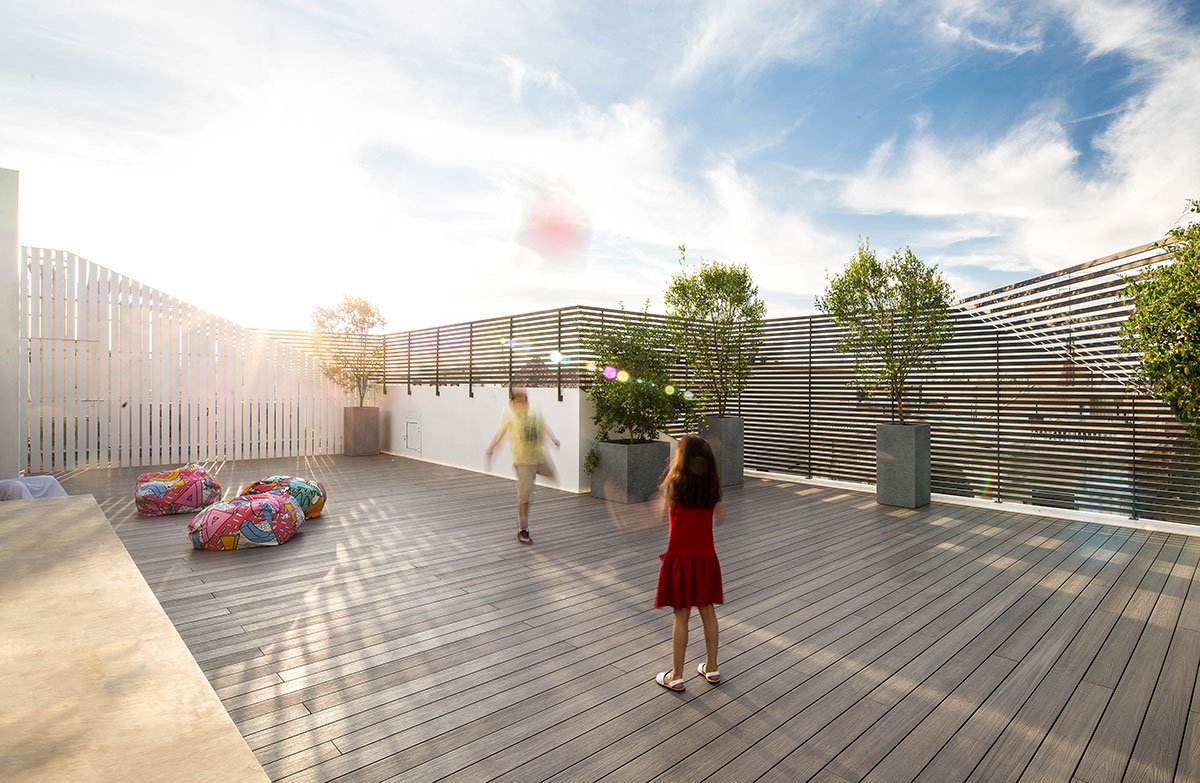

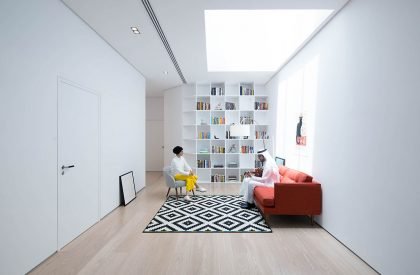

A similar technique is applied on the first floor, placing all bedrooms on the parameter to ensure windows in each room for their own natural lighting. A large skylight lights up the resulting interstitial area turning it into a brightly lit communal reading spot. The exterior of the house is finished in an austere palette of white cement render contrasted against the rough grey finish of the window frames and louvres. The louvres afford necessary privacy to the stepped entrance foyer and the roof garden and soften the impact of the crisp white massing.
Sustainability Credentials
The design and its requirements birthed a duality between the necessity of natural light and Kuwait’s scorching hot climate. Studio Toggle approached this duality with a multi-pronged strategy in which light pockets are distributed along the building’s mass, increasing it porosity while avoiding direct sun. These light pockets, by virtue of their strategic locations, helped in lighting up the interiors while avoiding the harsh direct sunlight.
A heat-reflecting and self-cleaning exterior paint system in the white finish was used to reduce heat gain as well as to repel dust, which is a recurring problem in the region. Louvers and overhangs were generously incorporated to avoid and reduce direct sun and glare.
Sensors and smart irrigation systems were incorporated to reduce electricity and water usage and demonstrate a measured saving of almost 20 per cent of electricity and 40 per cent of water used for irrigation. Low VOC paint and coating systems were used for better indoor air quality, as the client was very specific in this regard. The project also employs extensive use of eco-friendly cork for acoustic insulation and as underlays below the parquet flooring.

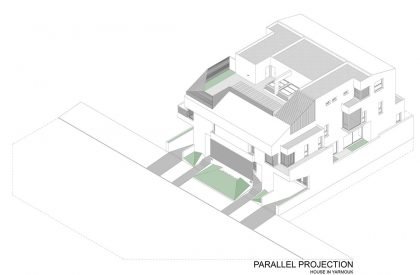

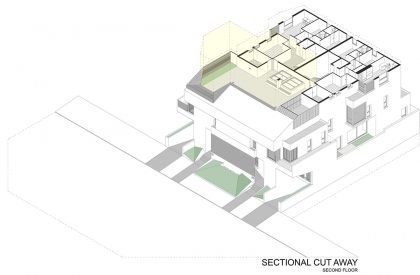

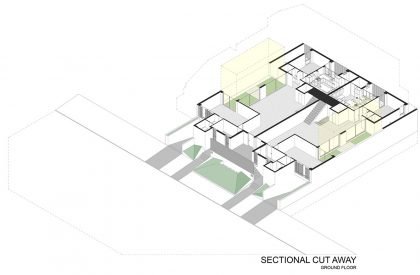

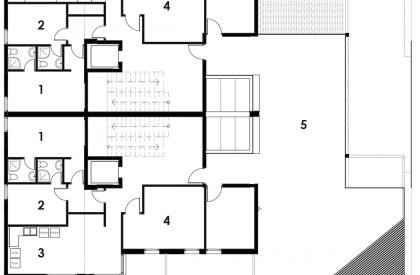

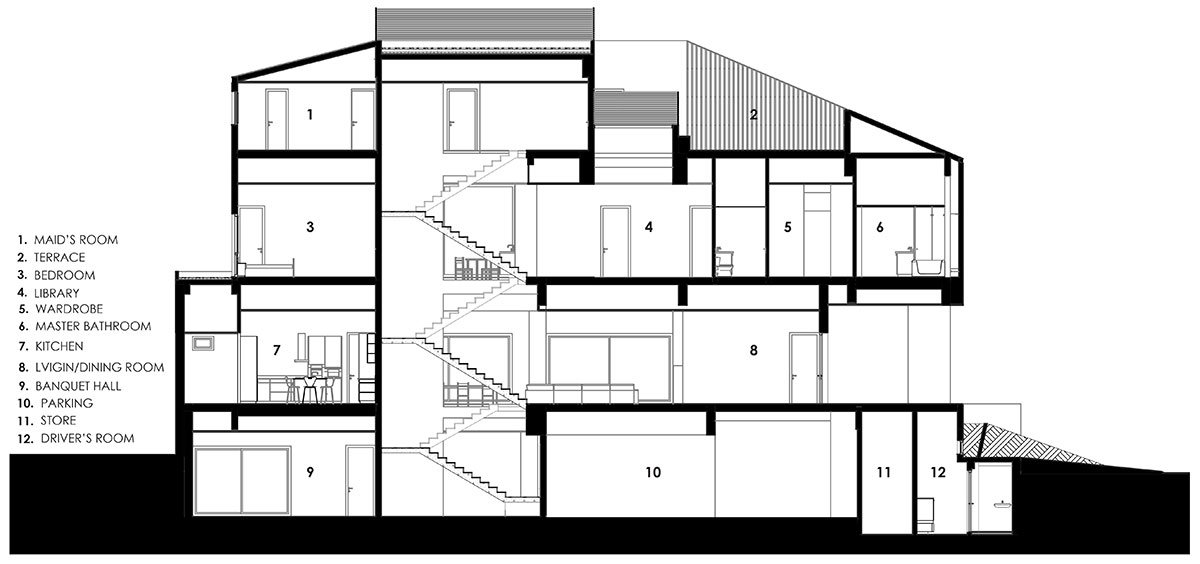

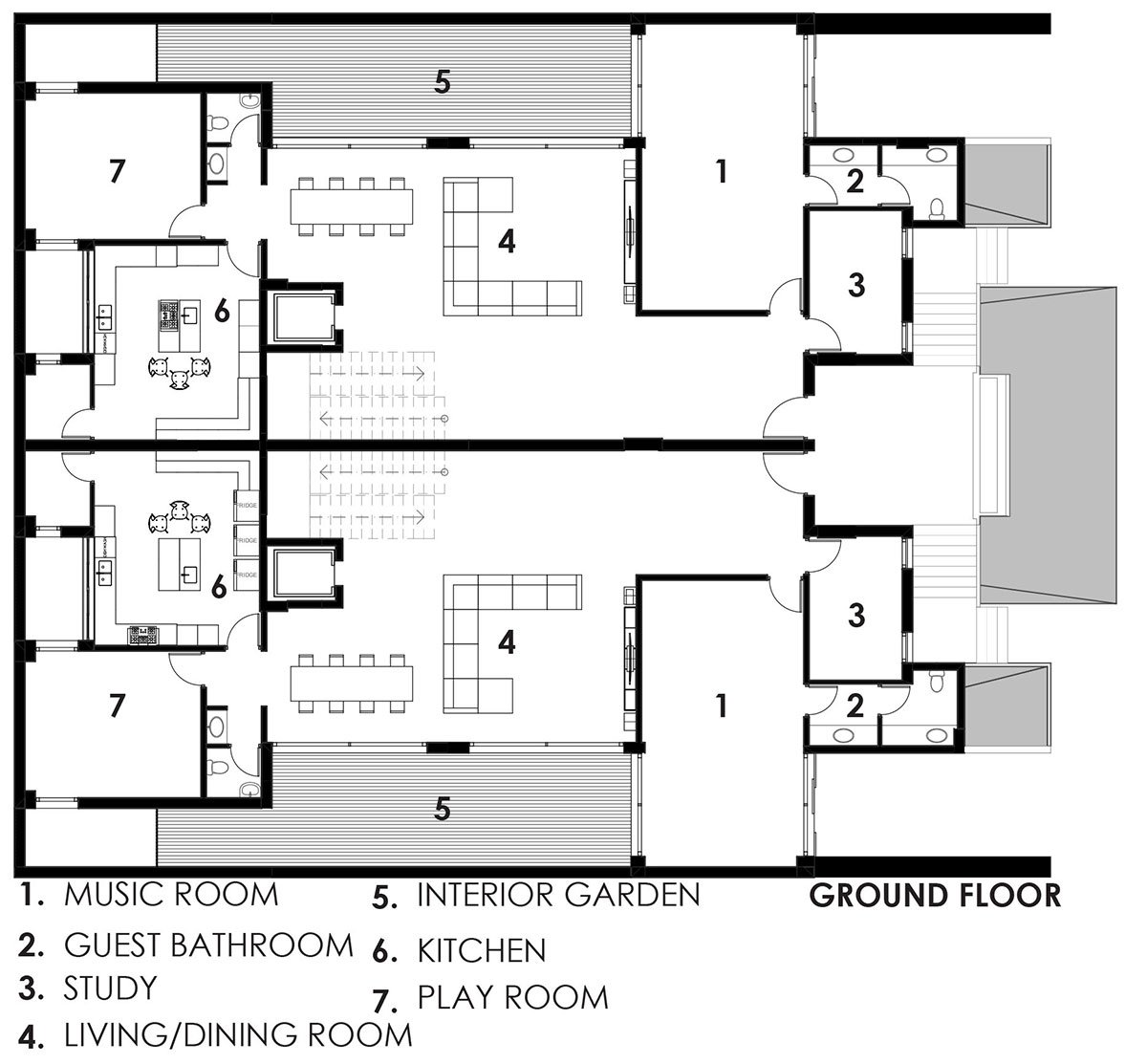

Drawings & Diagrams
