  • Project Name: Fuyang Yinhu Sports Center
  • Practice: UAD
  • Completion year: 2021
  • Gross Built up Area: 82,360.m2
  • Project Location: Hangzhou
  • Country: China
  • Lead Architects/Designer: Hu Huifeng, Zhang Chenfan and Li Bing
  • Design Team: Zhang Chenfan, Fang Hua, Lv Ning, Huang Diqi, Zhu Jinyun and Zhang Ziquan
  • Structural Consultants: Zhang Zhengyu and Jiang Fan
  • MEP Consultants: Yuan Songlin, Feng Shizhen, Zou Fan and Zheng Kai
  • Contractors: Shanghai Baoye Group Corp., Ltd.
  • Photo Credits: Zhao Qiang
  • Video Credits: Wu Qingshan
  • Others: water supply and drainage: Ouyang Hui and Wang Tiefeng, HVAC: Cao Zhigang, Zhu Shengwei and Li Xintong, intelligentization: Lin Hua, Ye Minjie and Yuan Xiaonan, lighting: Wang Xiaodong, Wang Junjie, Liu Yihan, Feng Baile and Wu Xuhui, decoration: Ye Jian, Huang Jianghui and Lin Yunhui, decoration electrical: Xiao Shuzheng and Yu Zicheng, curtain wall: Hang Fei, Dou Lisha, Luo Wenxin and Yuan Zengrong, gardening: Feng Bin, Wu Jina, Shen Haitao, Zhang Beibei, Xu Hui, Wang Jue and Zhu Qunjian, municipal administration: Chen Hao, Wu Lingling, Ling Jiayuan, Zhou Hua, Zhu Min, Wang Xueyan and Sun Zhe, rock-soil: Chen Yun, Yang Qinfeng, Xin Lei and Gu Jiacheng,, Principal: Hangzhou Fuyang Yinhu New District Construction Co., Ltd.
More Info Less Info

Excerpt: Fuyang Yinhu Sports Centre designed by UAD takes landscape as the blueprint, louvre as the brush, and sunshine as the ink, and re-expounds, adopts, imitates, expresses, and interprets nature in the natural landscape. The architectural modelling adopts the connection of multi-section sloping roofs, conforms to the surrounding mountains, dispels the building volume, and integrates the buildings with nature.

Project Description

Fuyang Yinhu Sports Center | UAD
© Zhao Qiang

[Text as submitted by architect] The design team of the Architectural Design & Research Institute of Zhejiang University adheres to the design concept of “realising green Asian Games through economic means and constructing cultural Asian Games through low-tech means”. On the basis of respecting professional sports technology requirements, combining the landscape intention with Fuyang characteristics, as well as adopting a simple form, a compact spatial layout, environmentally friendly building materials, low-tech construction means, and sustainable venue facilities, the competition venues (sites) for shooting, archery, and modern pentathlon during the Asian Games are designed, aiming at successfully implementing the holding purpose of “green, intelligence, conciseness, and civilization” of the Asian Games.

Fuyang Yinhu Sports Center | UAD
© Zhao Qiang
Fuyang Yinhu Sports Center | UAD
© Zhao Qiang
Fuyang Yinhu Sports Center | UAD
Plan © UAD

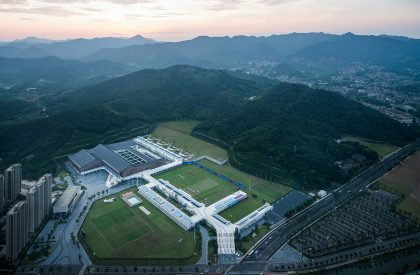

Perceiving the landscape: The site is surrounded by mountains in the west and north, bordered by water in the south, and connected to the city in the east. Standing in the centre of the site, the venue is embraced by mountains, which reminds people of the distant mountains and near waters along the Fuchun River, Su Shi’s natural perception of “distant mountains, chaotic clouds, and green places”, and Huang Gongwang’s feelings embodied in his Dwelling in the Fuchun Mountains of “where you are happy, you don’t know how to arrange it”. Huang Gongwang turned his thinking on philosophy and literature into the interaction among rocks, sands, and clouds. And the most important thing in life is not career and wealth but self-cultivation and the leisure and calm of caring for mountains and waters and melting into nature. Therefore, the program considers how to apply contemporary construction techniques to create a diversified and composite sports arena, how to return to the origin of the place and get along with the landscape while satisfying the functions of the competition, and then perceive and interpret it, as well as how to convey the flavour of Hangzhou and the characteristics of Fuyang to the athletes and coaches of the participating countries.

Fuyang Yinhu Sports Center | UAD
© Zhao Qiang
Fuyang Yinhu Sports Center | UAD
Functional Analysis © UAD

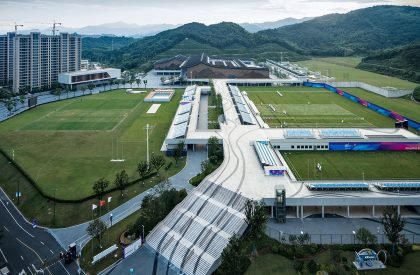

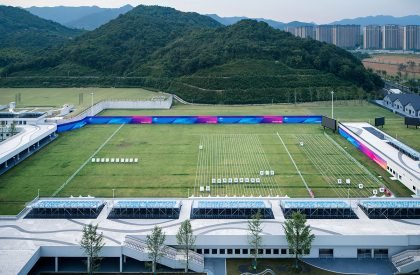

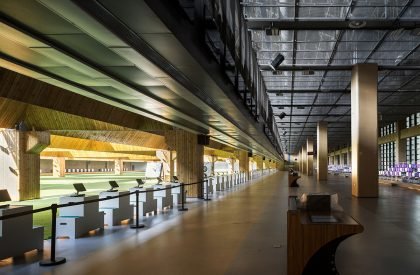

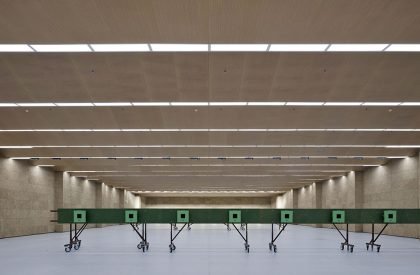

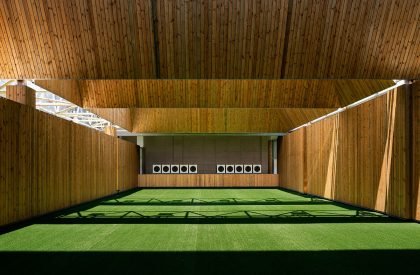

Modern deduction: At the site, five elevation terraces are set up to respond to the changes in elevation of the mountain area, fully considering the protection of the natural environment of the mountains, reducing mountain excavation, and balancing the internal earthwork. The three competition events are efficiently connected through the second-floor platform to reasonably organise the flow of people; the zones for the 10m qualifying competition, 25m qualifying competition, 50m qualifying competition, and final of the shooting competition are vertically distributed, and the common functions of the three events are centrally arranged in the press and security centre to intensively and efficiently utilise the site. In terms of landscape, the shooting gymnasium is square in plan and huge in volume. The architectural modelling adopts the connection of multi-section sloping roofs, conforms to the surrounding mountains, dispels the building volume, and integrates the buildings with nature; and in terms of facade design, the dwelling in the Fuchun Mountains is deduced in a modern way by parametric means and pixelated techniques, completing a process ranging from abstraction to figuration and expressing abstraction by figuration.

Fuyang Yinhu Sports Center | UAD
© Zhao Qiang

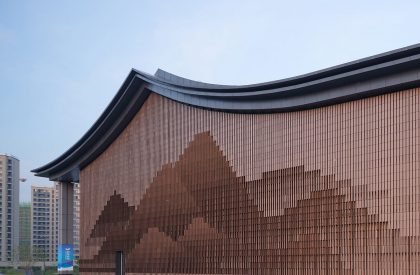

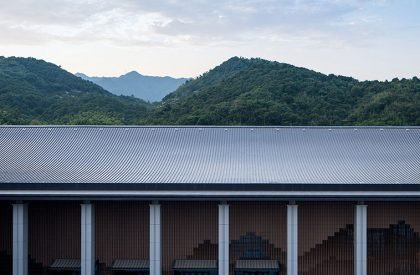

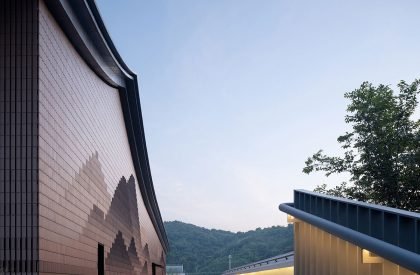

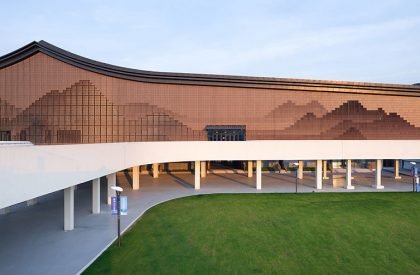

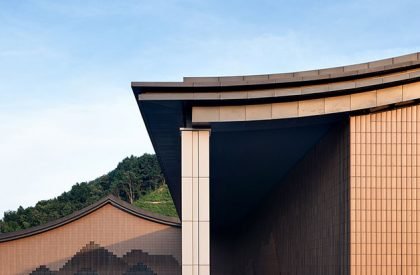

In terms of surface, the building abandons parametric high-tech techniques such as mechanisation, intelligence, and informationization and adopts modular and low-cost standard components to realise them with low technology. In terms of design, 300mm x 520mm louvres are used as unit modules. Through the rotation of more than 37,000 unit modules at different angles, the natural scenery along the Fuchun River is sketched again in a low-tech and simple rotating shaft mode, “with louvres as the brush and sunlight as the ink”.

Fuyang Yinhu Sports Center | UAD
© Zhao Qiang

In terms of construction, the rotation angle of the shutter is controlled by the gears at the bottom. Each gear is molded and produced with a minimum modulus of 5°, and the rotation angles of the shutter are limited to 15° to 85° and are divided into 15°, 20°, 25°, 30°, 35°, 40°, 45°, 50°, 55°, 60°, 65°, 70°, 75°, 80°, and 85°, for a total of 15 angles. The smaller the angle modulus, the higher the number of units, the higher the pixels, and the landscape intention becomes clearer. During construction, the rotating shaft angle can be accurately controlled to be installed in place only according to the louvre angle shown in the figure. Through these 15 simple louvre rotation angles, complex pattern effects can be expressed with the help of sunlight.

Fuyang Yinhu Sports Center | UAD
© Zhao Qiang
Fuyang Yinhu Sports Center | UAD
© Zhao Qiang

Lighting the nature: The so-called lighting of nature originates from the phrase “learning from nature”, which means not only imitating nature but also taking natural light as a teacher, imitating the changes in light and shadow, and then applying the changes in light and shadow to reinterpret nature in a simple and natural way.

Fuyang Yinhu Sports Center | UAD
© Zhao Qiang
Fuyang Yinhu Sports Center | UAD
Section © UAD

The surface that changes with the changes in light tells a story of light. When the sun rises and the smoke dissipates, the building facade gradually unfolds and the shadows gradually decrease; at noon, the sunlight shines directly on the mountaintop, the curtain walls and the louvres are in a strong contrast, and the distant mountains and near waters are clearly presented; at sunset, distant mountains, driving boats, ancient trees, and every aspect of the Fuchun landscape slowly disappear into the architectural surface; and at night, a beautiful Fuchun landscape will slowly unfold again under the influence of floodlight. Time is always the most precious; as the sun turns, shadows move and everything flourishes, and the shadows of the louvres silently record the traces of the passage of time.

The building cleverly uses natural light to reproduce the Fuchun landscape with the brightness of the sun and the moon and the alternation of four seasons.

Fuyang Yinhu Sports Center | UAD
© Zhao Qiang
Fuyang Yinhu Sports Center | UAD
© Zhao Qiang
Fuyang Yinhu Sports Center | UAD
Section © UAD

Continuous operation: The vast majority of competitive stadiums and gymnasiums are often invested heavily but seldom used, especially those featuring strong professionalism, a small audience, and a high level of competition, like Yinhu Sports Centre.

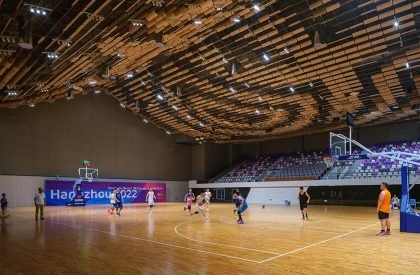

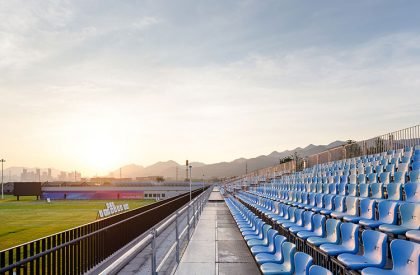

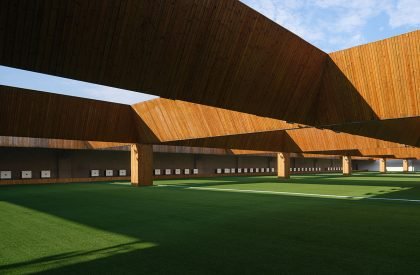

This project adheres to the design strategy of green and low-carbon, rapid demolition and construction, and component reuse. In terms of use space, structure selection, and building facilities, they give full consideration to the possibility of using various scenes after the competitions, for example, a news and security centre, auxiliary rooms, stables, etc. take a large number of recyclable steel structures as the main structures; the spectator stand adopts a temporary one in steel structure, which is convenient for demolition after the Games; and the competition sites transform into places for mass sports like swimming, basketball, badminton, and table tennis with higher public participation, returning to the people and maintaining sustainable operation.

Fuyang Yinhu Sports Center | UAD
© Zhao Qiang

The project takes landscape intention as the blueprint, louvre as the brush, and sunshine as the ink, and re-expounds, adopts, imitates, expresses, and interprets nature in the natural landscape. Through brushwork, techniques, and constructions, redrawing the image of Jiangnan landscape, like the Dwelling in the Fuchun Mountains, is a kind of cultural transmission that transmits the charm of Hangzhou culture and the characteristics of Fuyang landscape to the world.
