Excerpt: m.o.r.e CLT Cabin is a cottage designed by the architectural firm Kariouk Architects. The paradigmatic North American cottage is romanticized as a wilderness log cabin. Nonetheless, typical cottages are “woodsy” versions of suburban homes with every modern convenience. These buildings sustain the myth that appearing to be one with the land equates to a reduced environmental impact. The m.o.r.e. CLT Cabin inverts this idea by separating from the more sustainably constructed landscape than other cottages. This unraveling of eco-fictions is not cynical but optimistic.
Project Description
[Text as submitted by Architect] The paradigmatic North American cottage is romanticized as a wilderness log cabin. Nonetheless, typical cottages are “woodsy” versions of suburban homes with every modern convenience. These buildings sustain the myth that appearing to be one with the land equates to a reduced environmental impact.
The m.o.r.e. CLT Cabin inverts this idea by separating from the more sustainably constructed landscape than other cottages. This unraveling of eco-fictions is not cynical but optimistic. While organic environments are being degraded, what remains can be engaged more responsibly.
To this end, m.o.r.e. CLT Cabin touches the land lightly through:
- Interpreting the law creatively to uphold its principles.
- Reducing foundation size through a steel mast.
- Low-waste cross-laminated timber (CLT) structure.
- Achieving greater tensile strength through a “folded” structure.
- Off-grid power and high-efficiency heating.
- Creating a home for endangered bats.
Interpreting the Law with Finesse

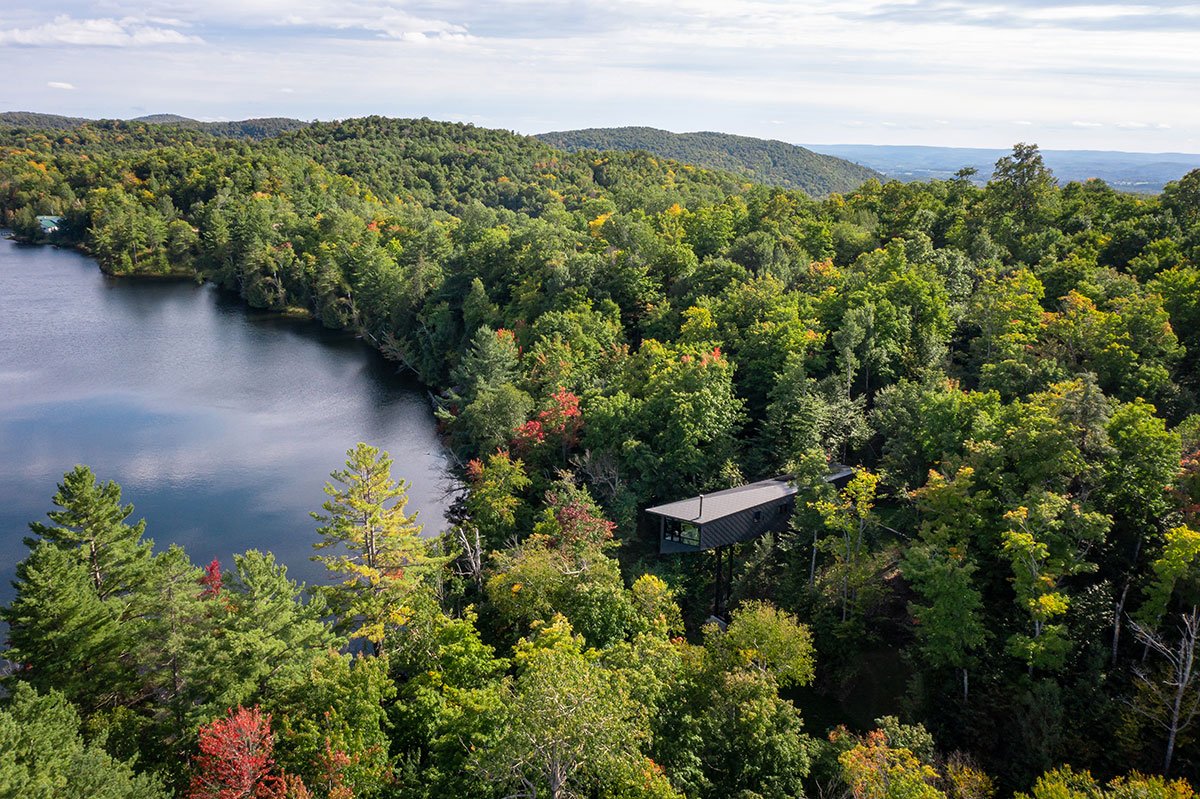

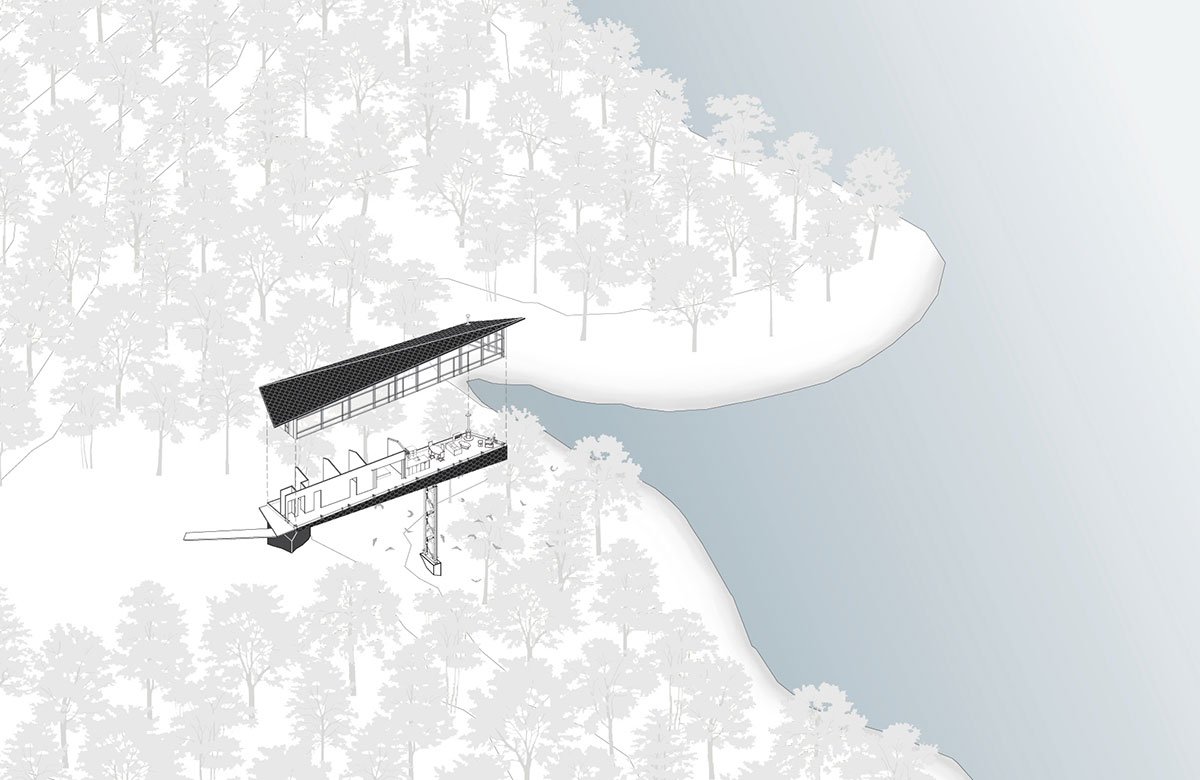

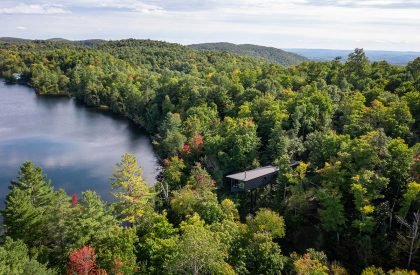

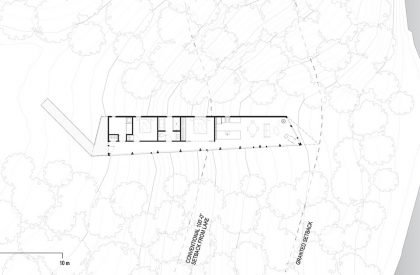

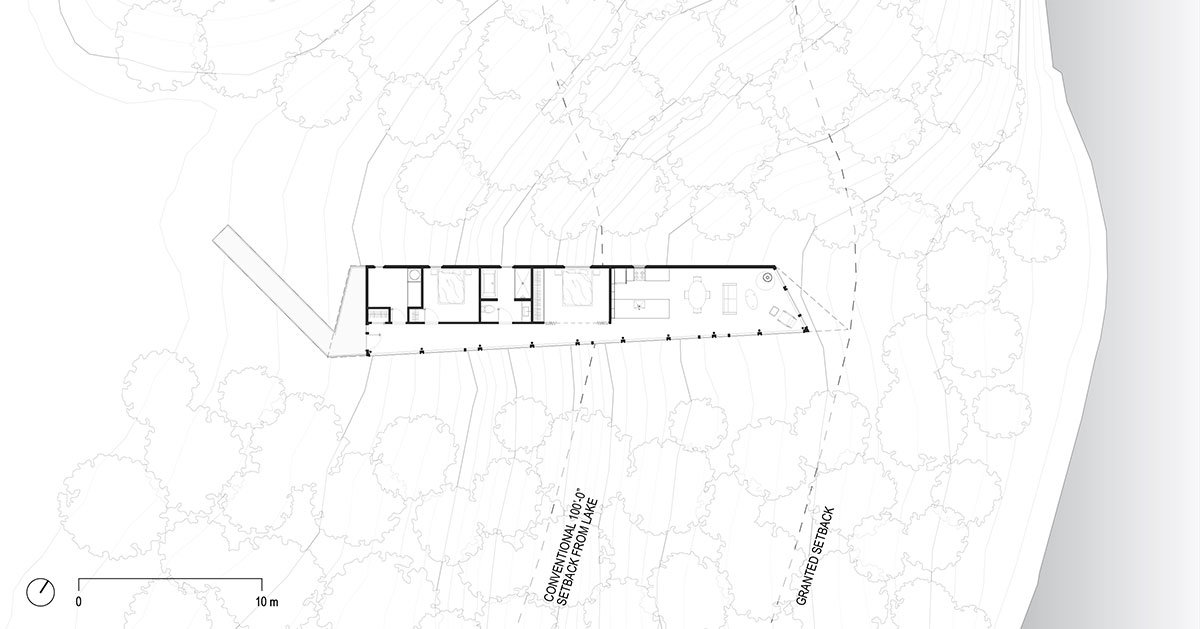

Zoning rules required a 100-foot (30-meter) setback from the lake. A cliff face at that 100-foot mark was incorporated into the design, whereas conventional construction approaches would entail blasting. To minimize harm to the hillside and forest, a zoning variance was obtained to allow the front of m.o.r.e. CLT Cabin to hover above, rather than sit on, the 100-foot (30-meter) mark.
The Mast

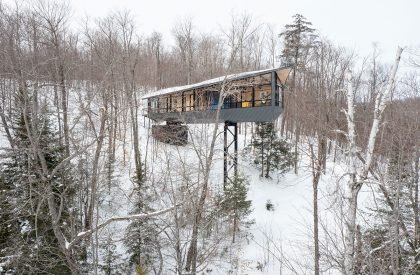

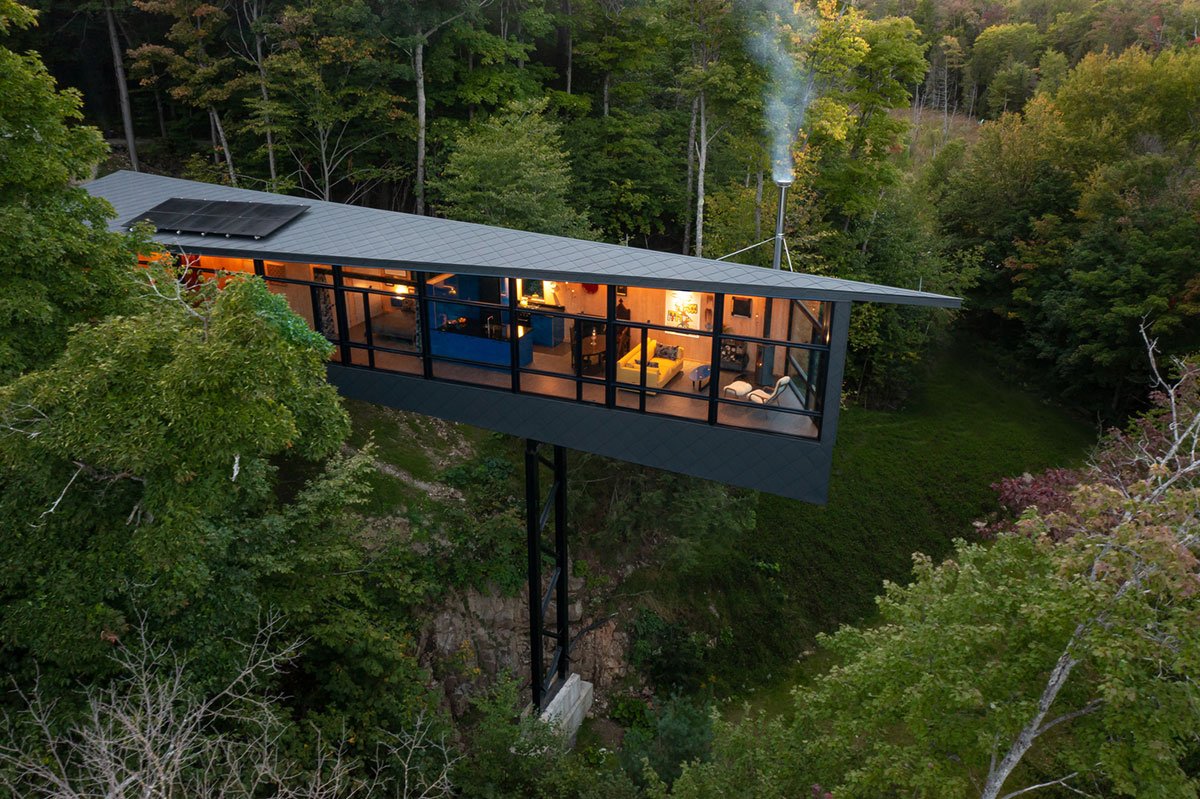

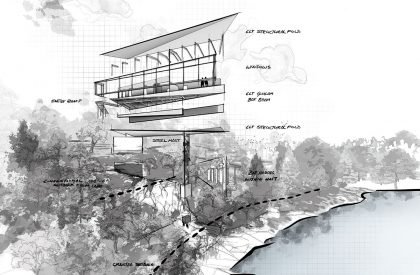

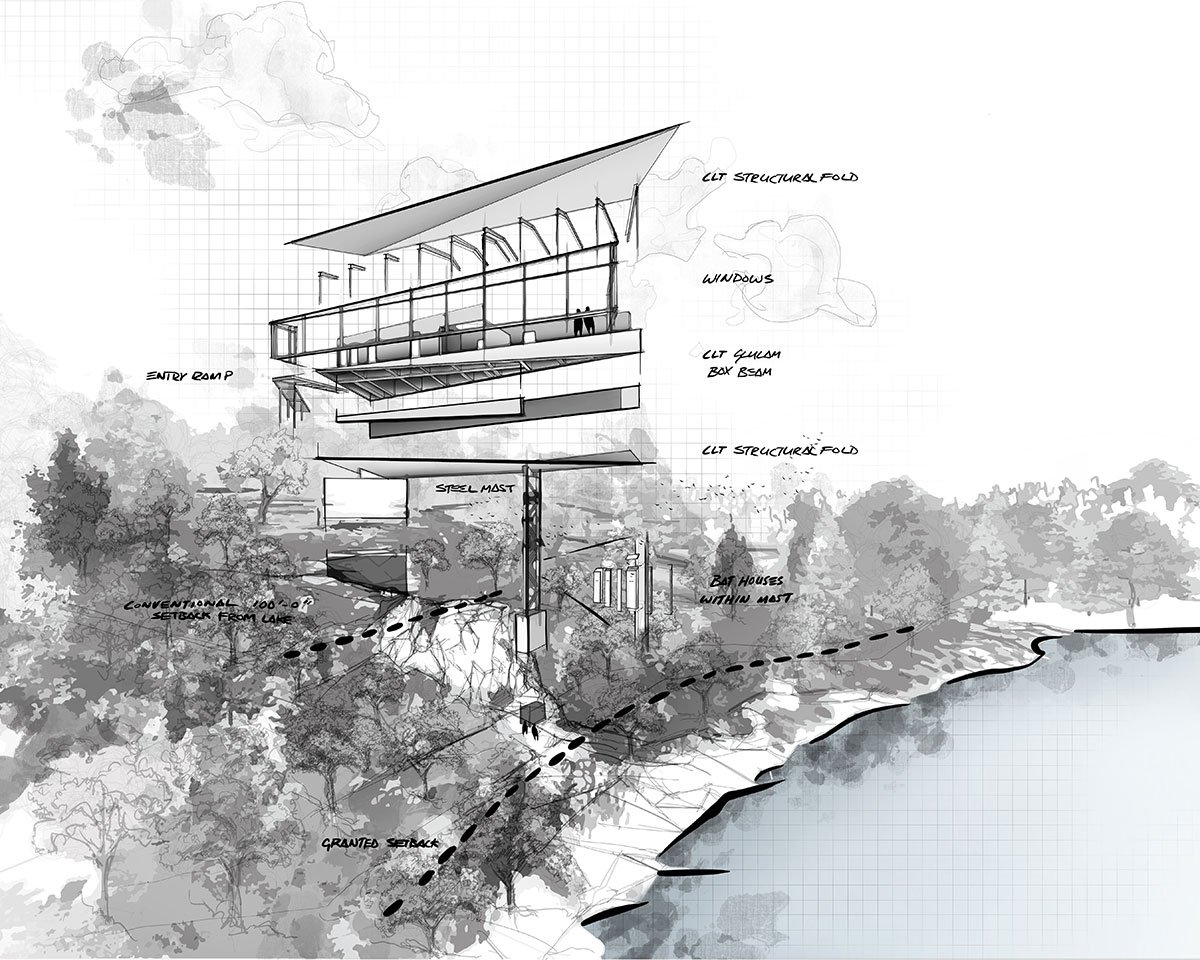

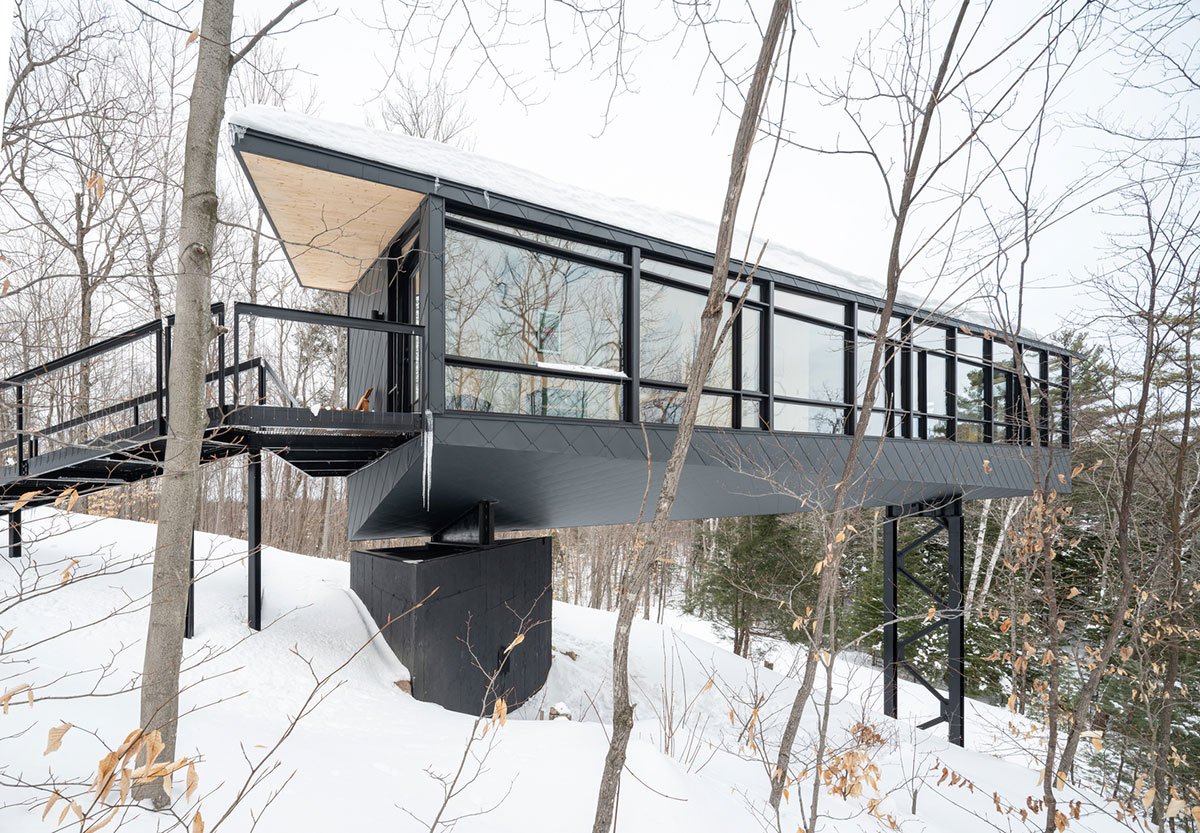

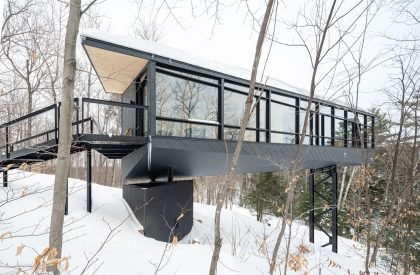

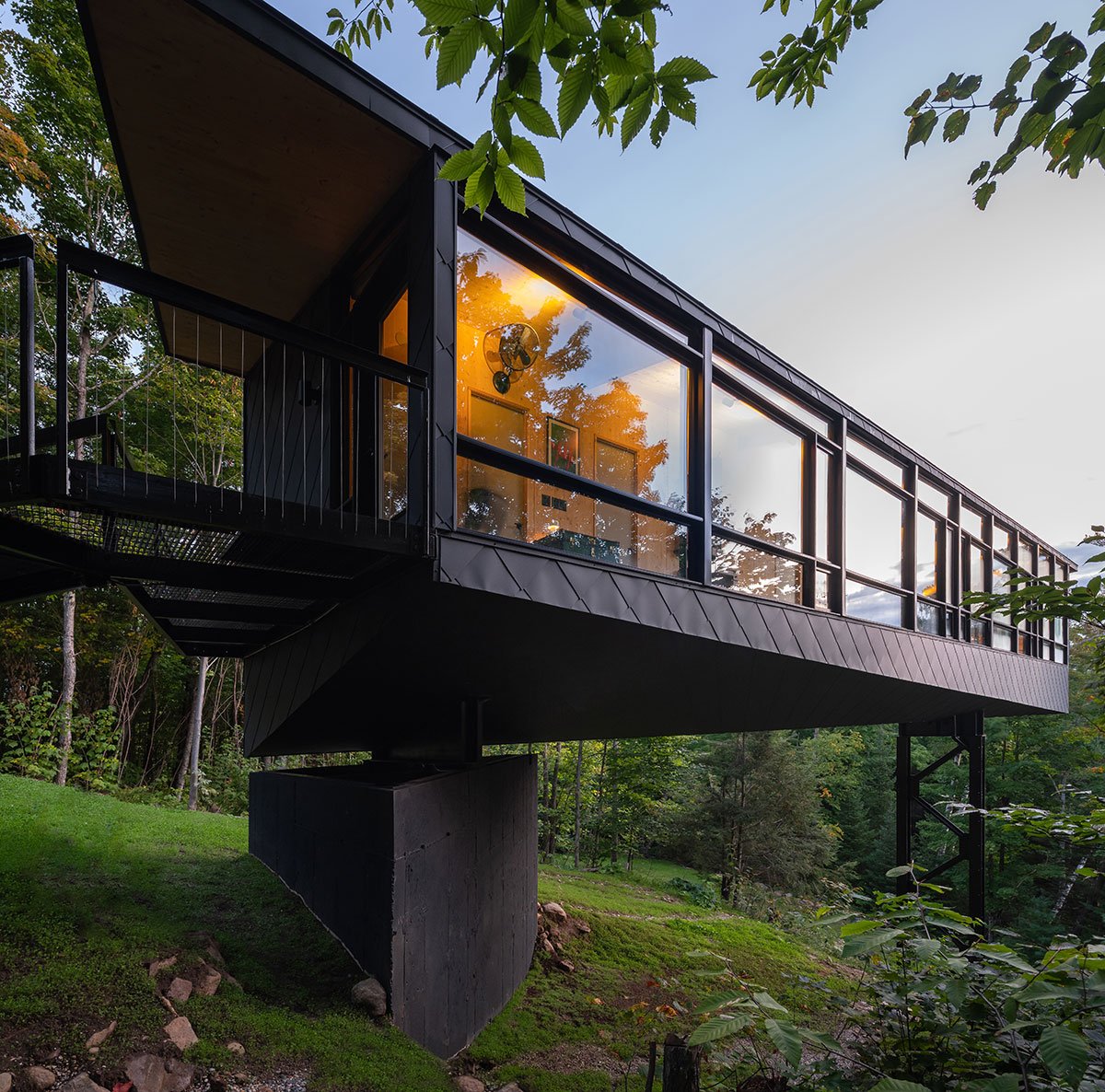

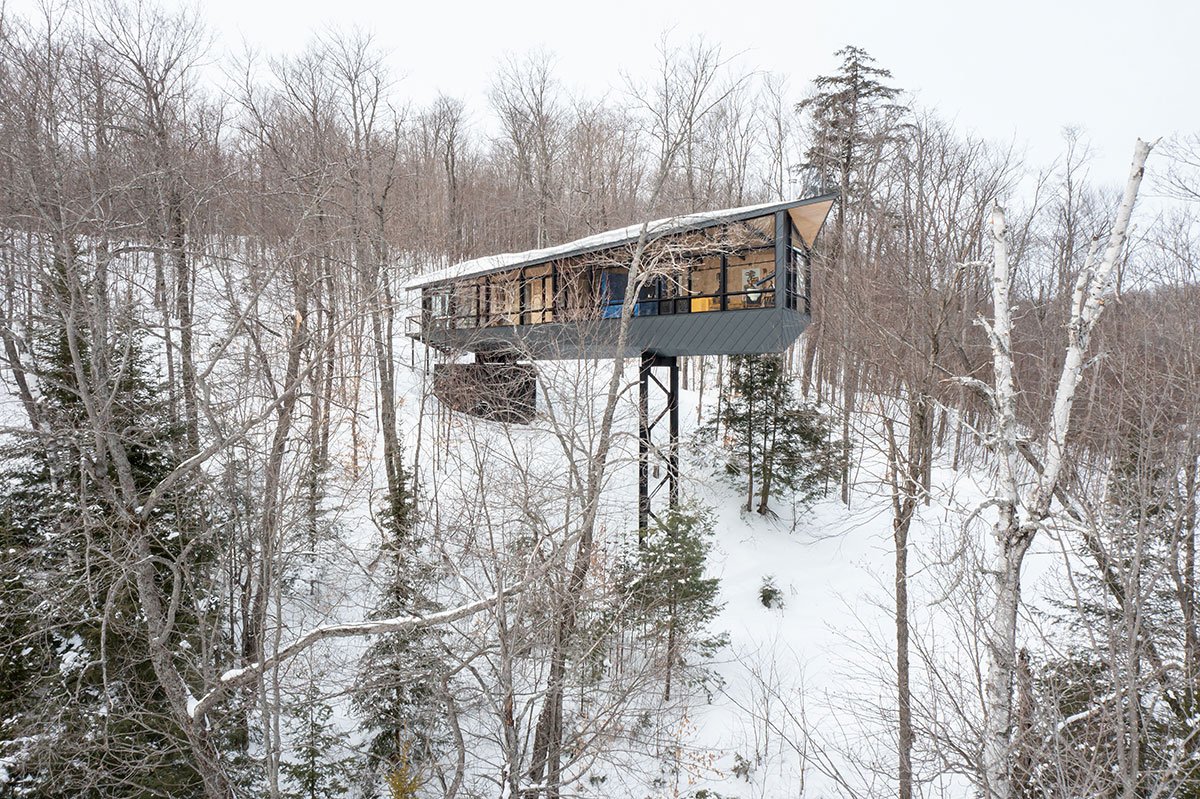

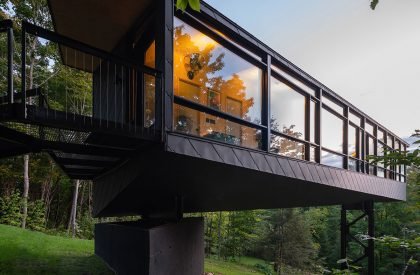

The technical solution to the environmental issue involved a single concrete footing and a steel “mast” placed within the required setback. Avoiding a large conventional foundation preserved the watershed and prevented erosion, as did elevate the construction zone. The use of carbon-intensive concrete was also reduced for a lower carbon footprint.
m.o.r.e. Than One Way to Skin a Home

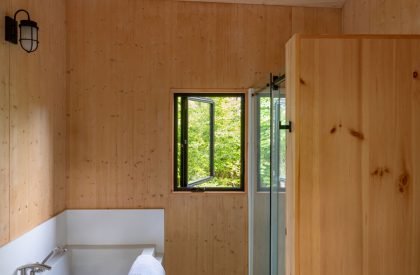

m.o.r.e. CLT Cabin is built with suitably-sourced CLT panels and glulam beams. The CLT was milled offsite and hoisted into place, avoiding damage to the landscape by maneuvering construction machinery.
Cabin-as-Beam

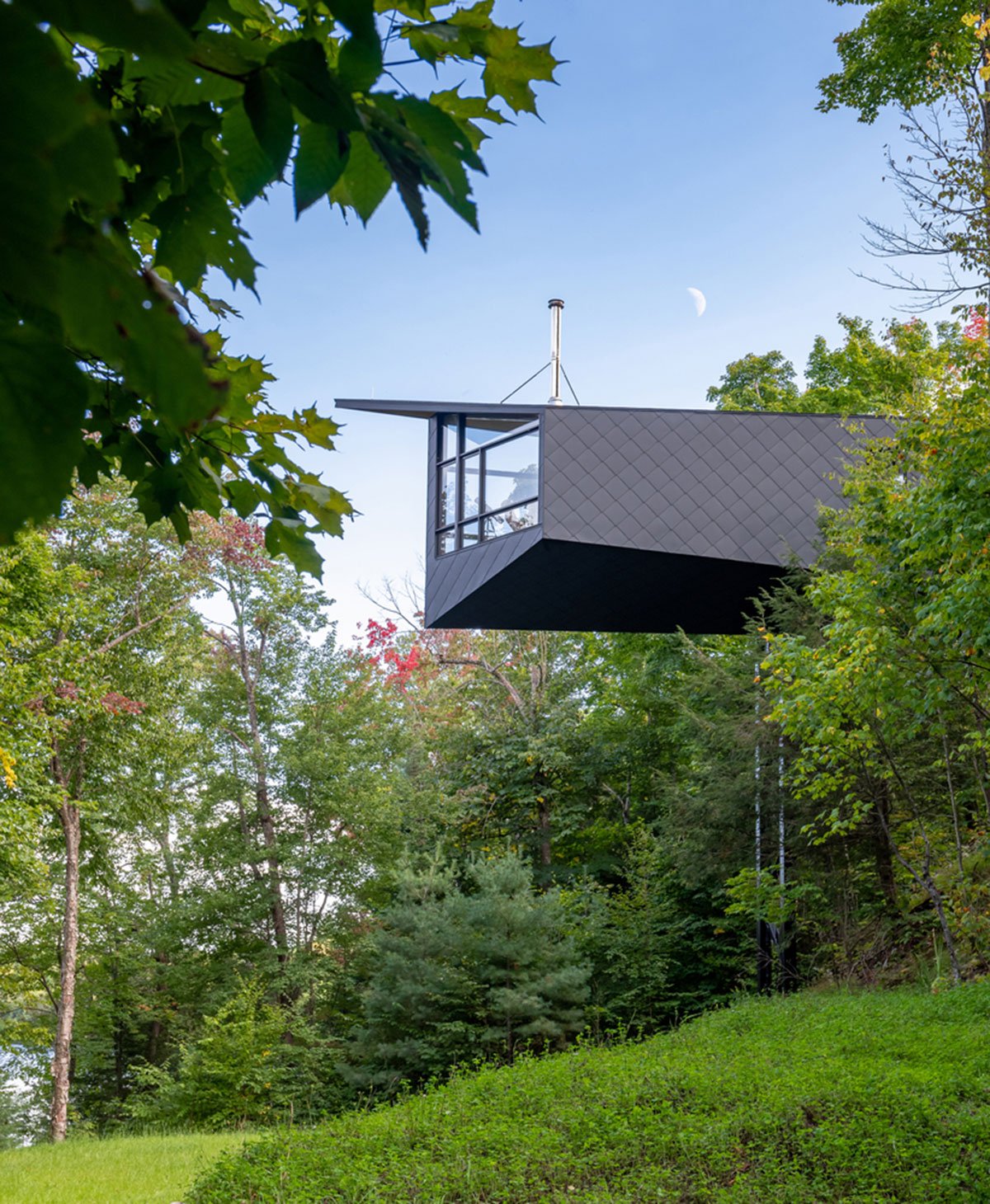

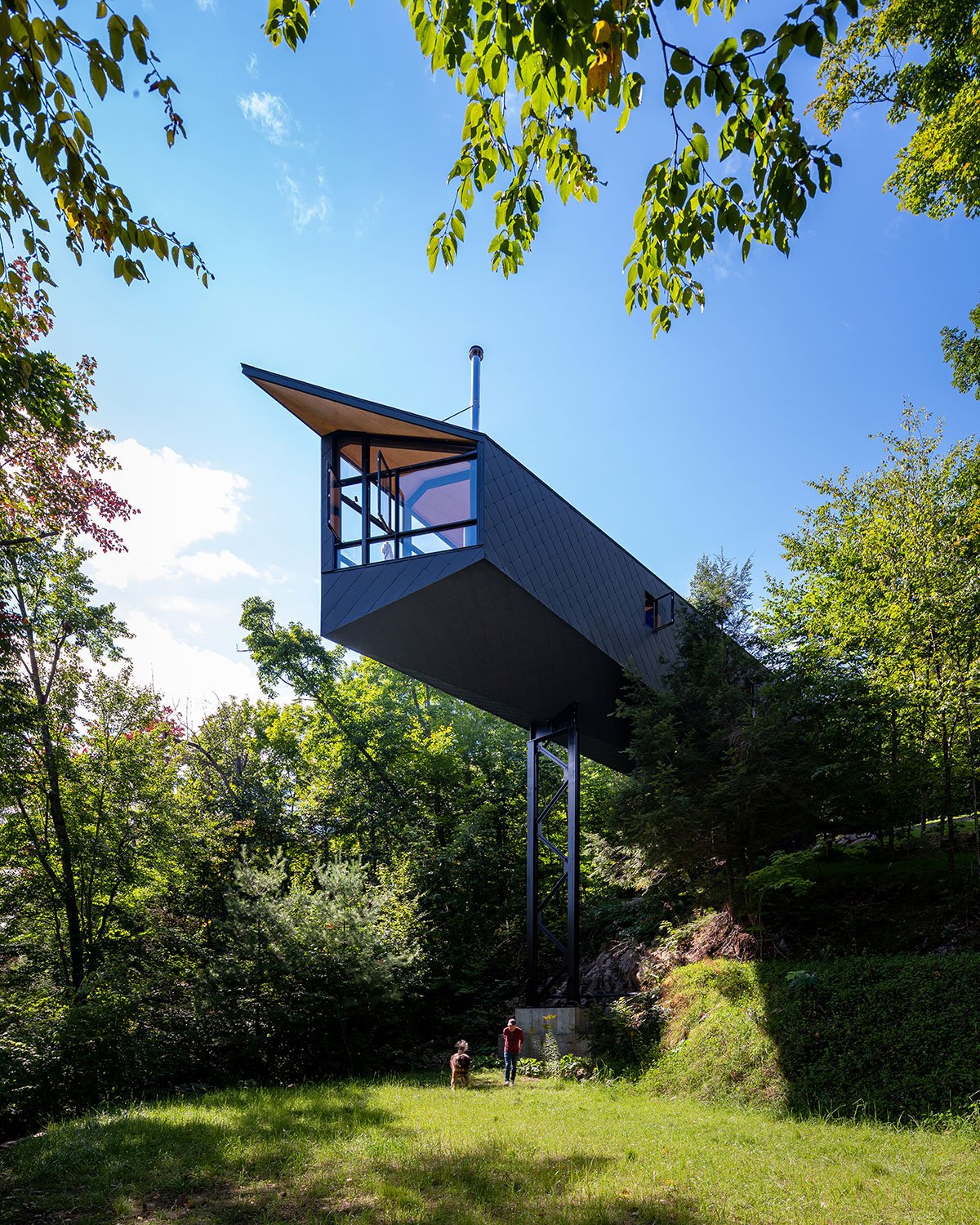

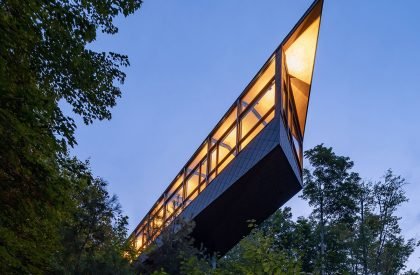

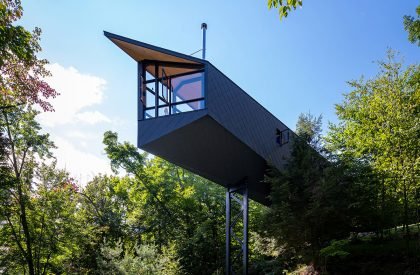

m.o.r.e. CLT Cabin’s environmental considerations yielded structural innovation. Our challenge became to develop a structural strategy using cantilevered CLT panels as a response to the zoning variance that we obtained; CLT is fundamentally deployed in vertical/compressive sections, not horizontally in tension. Conventional 5-ply CLT is too heavy to support itself over longer spans. The solution used thinner 3-ply CLT, with structural capacity ensured through “folding” (like paper gains strength when folded).
Off-Grid

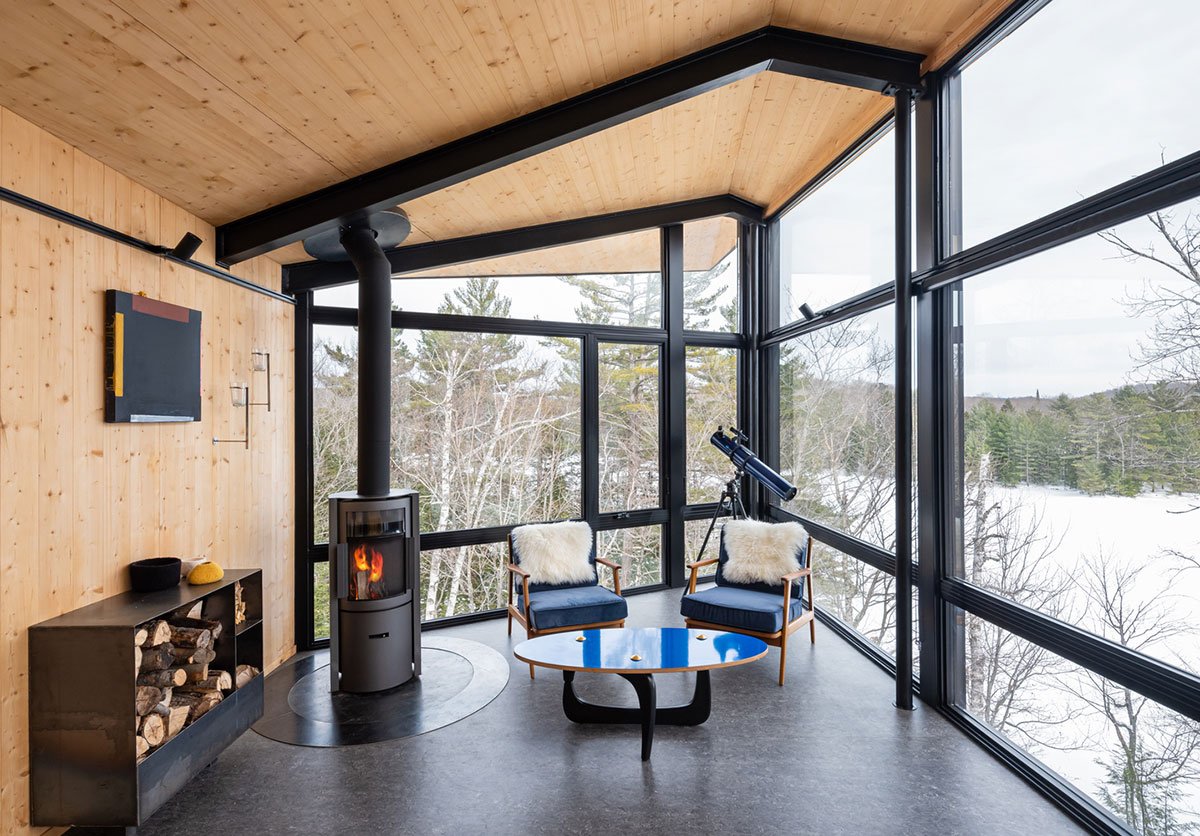

The home is solar-powered. The elevated cottage catches more breezes and has excellent cross-ventilation. Heat is provided by a high-efficiency “green carbon” wood stove. Good R-value and thermal comfort are provided by CLT’s mass, and precise joinery provides air-tightness.
Inviting Over the Neighbors
One goal for the home was to create extensive lodging for endangered brown bats. Bat pods were integrated into the mast to provide safety from climbing predators and a clear flight path to the lake.
*“m.o.r.e.” stands for the clients’ grandmothers’ names, all of whom did more with less —gracefully so.
