Upside Down Akubra House | Alexander Symes Architect

Information

  • Completion year: 2019
  • Gross Built up Area: 195 m2
  • Project Location: Nundle
  • Country: Australia
  • Structural Consultants: Ascent Consulting Engineers
  • Contractors: Blue Eco Homes
  • Photo Credits: Barton Taylor
More Info Less Info

Excerpt: Upside Down Akubra House, designed by Alexander Symes Architects, is an off-grid home inspired by the iconic Australian Akubra hat. At this point, one of the key challenges for this project presented itself: how to create a low-energy, thermally comfortable home that celebrated views all around. What makes this off-grid home unique however, is how the technology has become the home’s aesthetic.

Project Description

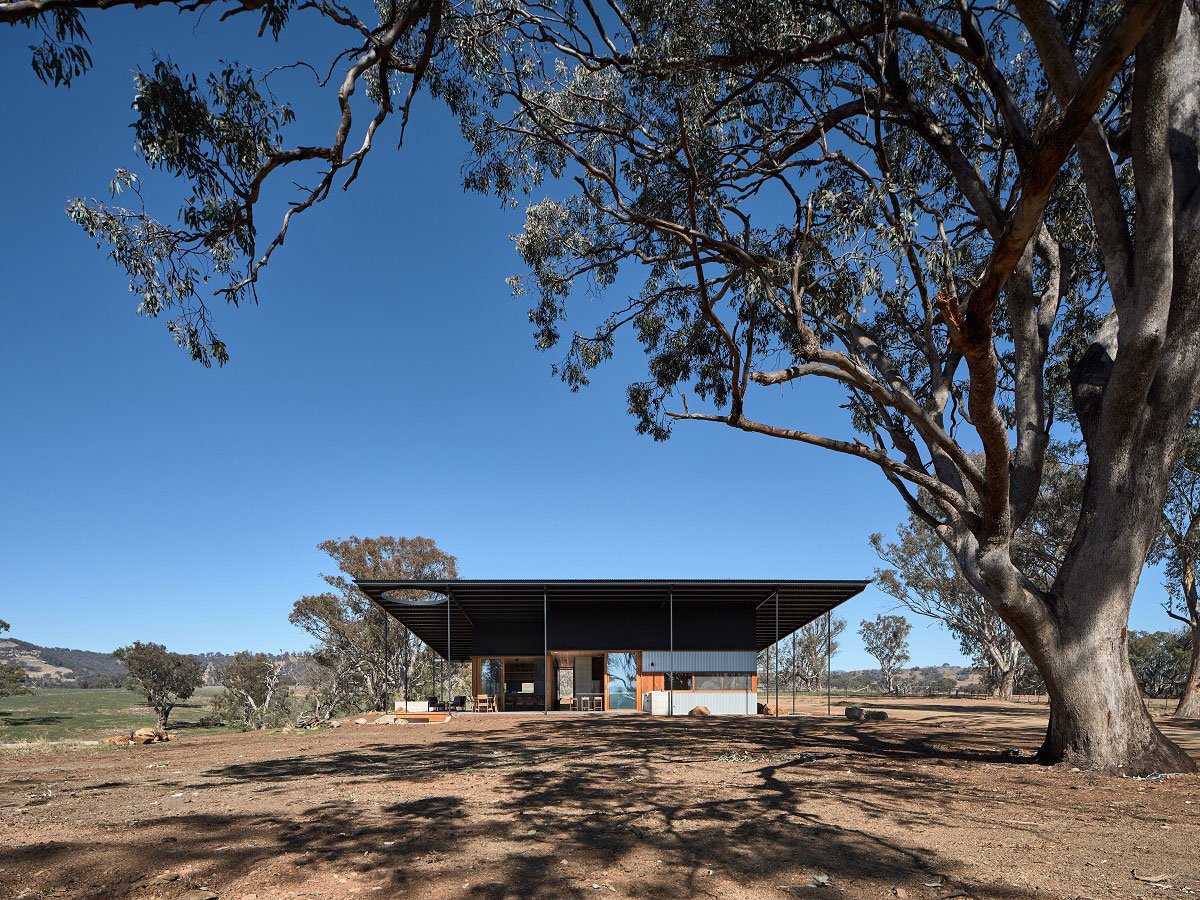

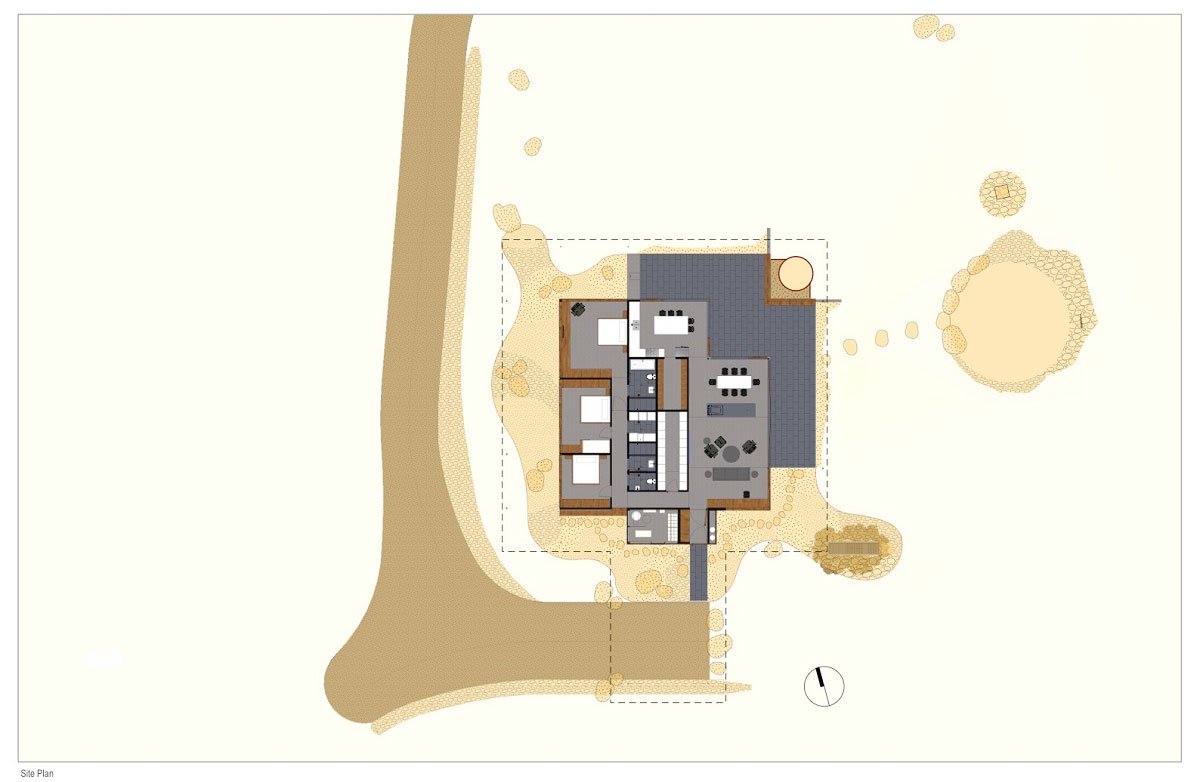

[Text as submitted by architect] Located in the middle of a bull paddock sits an off-grid home inspired by the iconic Australian Akubra hat. This inspiration came about at the first meeting with the clients on their bull farm, around 50mins south east of Tamworth. The client had selected the site for their new home atop a gently sloping hill, amongst a grove of eucalypts, with the land falling sharply away to the east to a dry creek bed. From this vantage point the clients pointed out the vistas they wanted to appreciate from their new home: “yella-rock” to the south, “hanging-rock” to the east, a unique vista north through the grove of native tress and a vista west, over the dusty bull paddocks to the rolling hills beyond. Essentially an amazing 360 degree view all the way around.

Upside Down Akubra House | Alexander Symes Architect
© Alexander Symes Architect
Upside Down Akubra House | Alexander Symes Architect
© Alexander Symes Architect
Upside Down Akubra House | Alexander Symes Architect
© Alexander Symes Architect
Upside Down Akubra House | Alexander Symes Architect
© Alexander Symes Architect

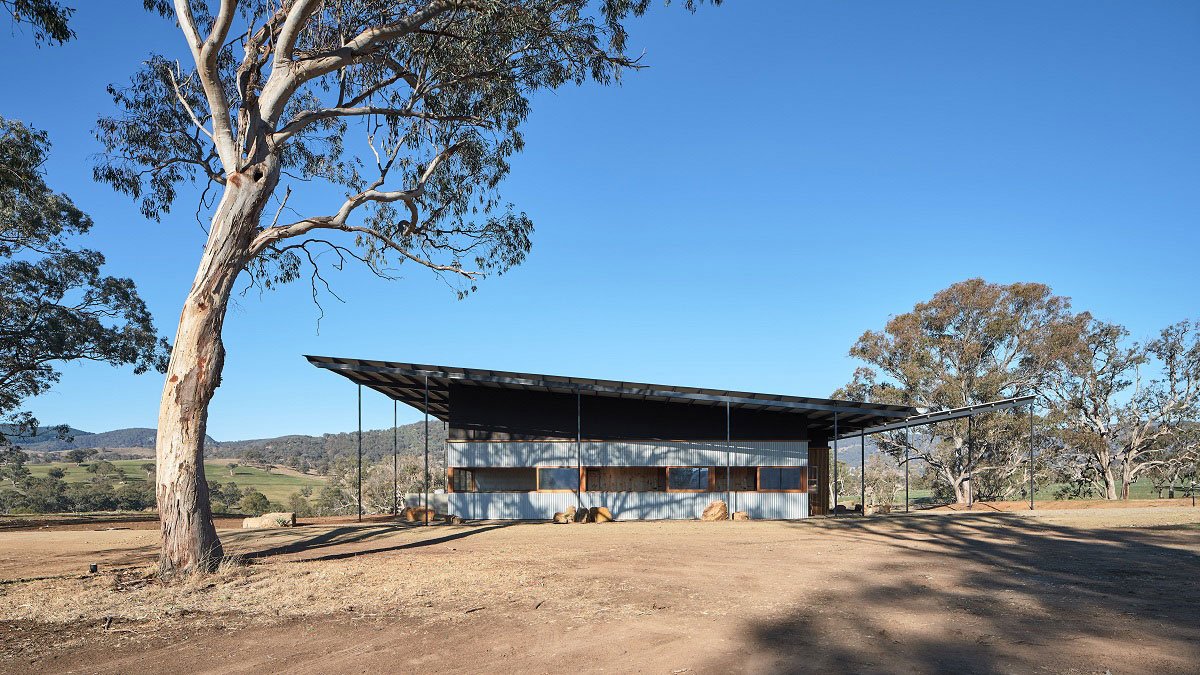

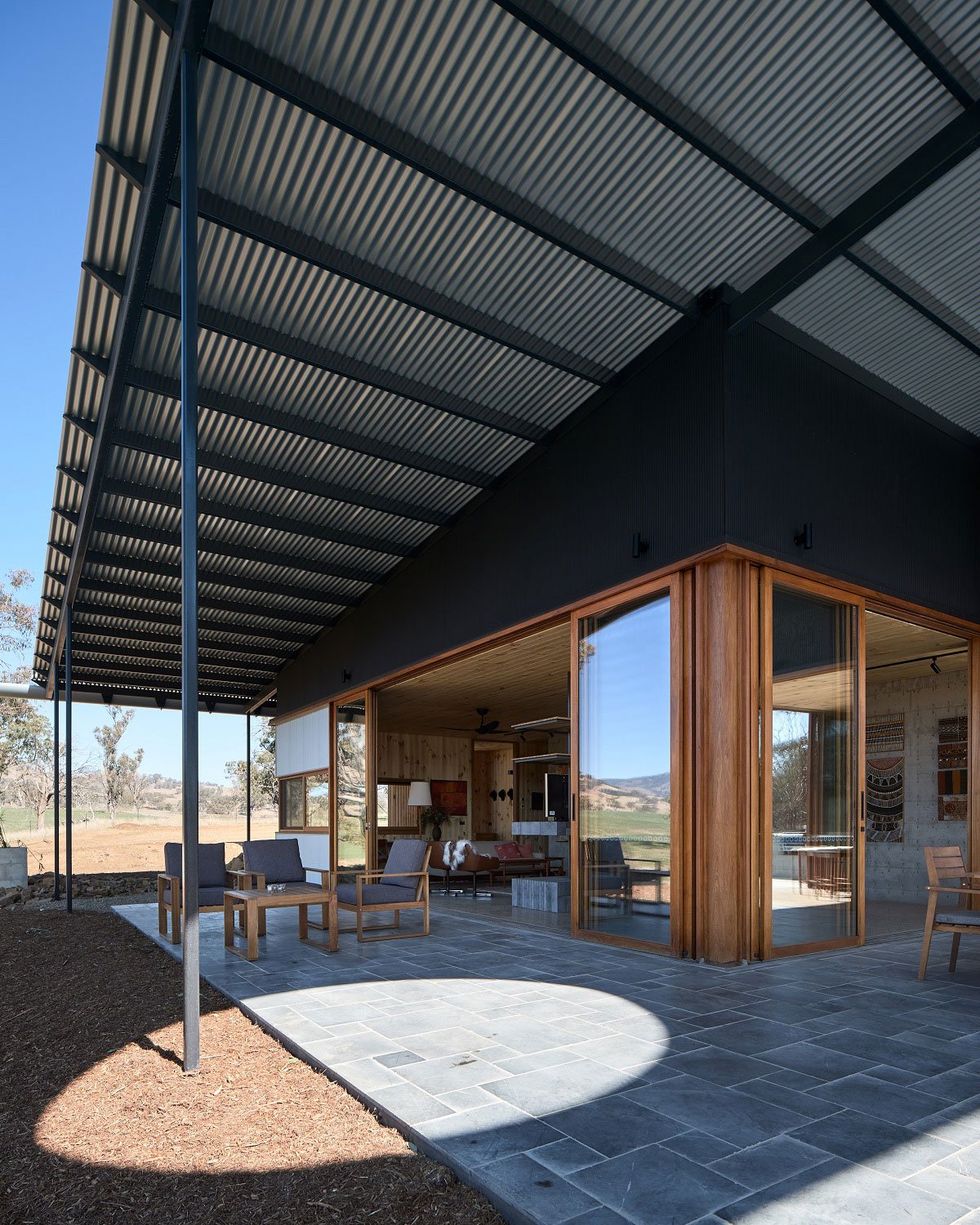

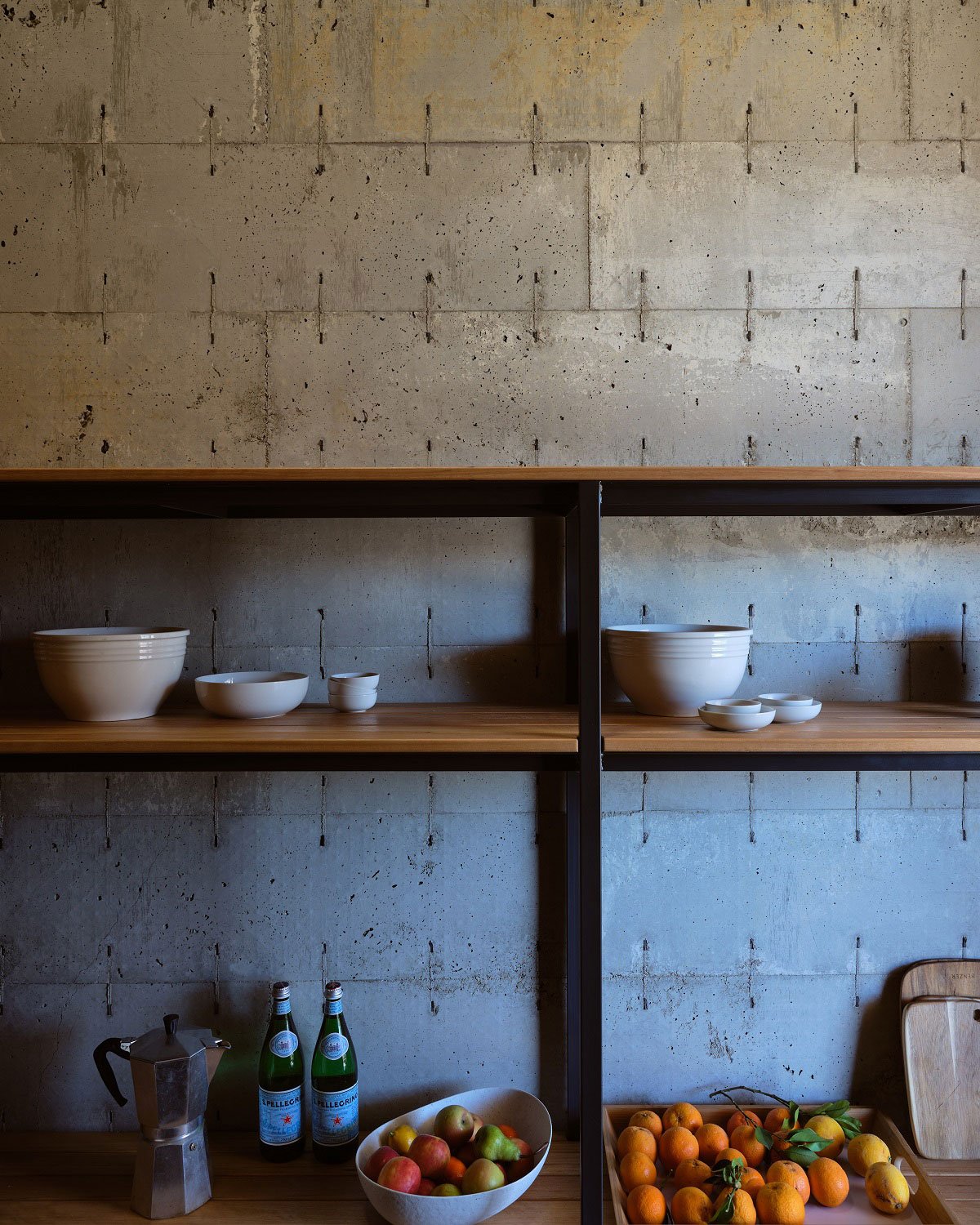

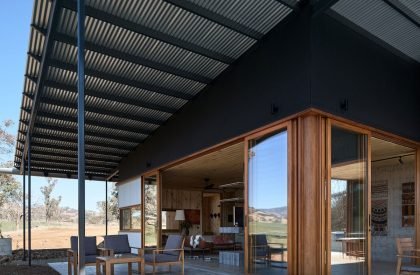

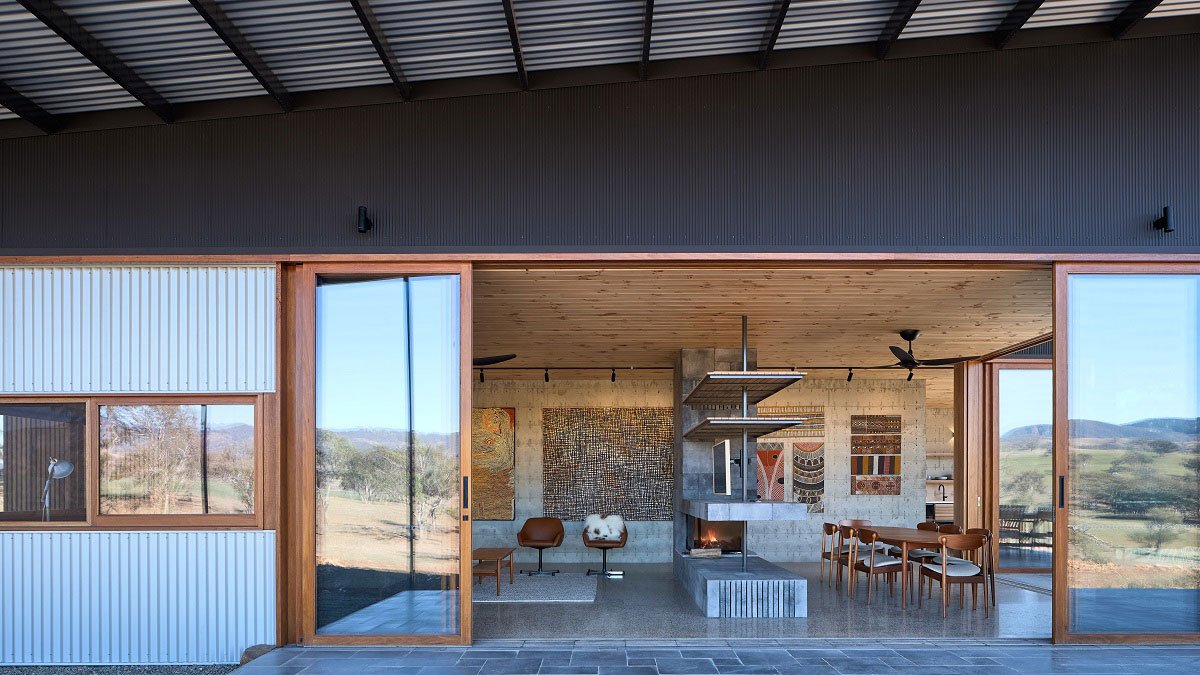

It was at this point that one of the key challenges for this project presented itself: how to create a low energy, thermally comfortable home that celebrated views all around. The station manager was curiously watching on, wondering what this city-slicker Architect was going to do, when I asked him for his Akubra hat. Placing it upside down, I started to explain the concept of the “upside down Akubra house”. The idea being, a single large scale roof form, much like the brim of the Akubra hat, overhanging the house below. The roof would block out all the summer sun, yet allow in the winter sun to warm the central thermal mass that would form the spine of the home as well as catching rainwater to run the house, all with a functional home underneath celebrating views in every direction.

Upside Down Akubra House | Alexander Symes Architect
© Barton Taylor
Upside Down Akubra House | Alexander Symes Architect
© Barton Taylor
Upside Down Akubra House | Alexander Symes Architect
© Barton Taylor

From this meeting, the Upside Down Akubra House was born, a house with a roof that is 2.5 times the size of the building footprint, a home that generates and stores all its own energy and collects enough water to run the house and treat its own waste. Living off-grid is not new these days, but necessary in this remote location, greatly affected by extreme weather conditions including the current drought. What makes this off-grid home unique however, is how the technology has become the aesthetic of the home.

Upside Down Akubra House | Alexander Symes Architect
© Barton Taylor
Upside Down Akubra House | Alexander Symes Architect
© Barton Taylor
Upside Down Akubra House | Alexander Symes Architect
© Barton Taylor

Celebrating the off-grid characteristics begins with the “humble” carport, although standing at 4.5m at the tallest point and covering an area of 80m2 this carport is far from humble. It is in fact a canopy of LG neon bi-facial photo-voltaics, which means that the solar cells are visible from the underside of the canopy celebrating the technology that powers the whole house. Through exposing the solar panels this communicates to visitors the eco-technologies that are integrated into the design and educates all on low environmental impact power generation options and the efficient use of energy. The photo-voltaics generate 8KW of power for the house and are integrated into clear glass modules which allow filtered daylight into the car port, maintaining a connection to the sky in what is typically a closed off and dark space.

Upside Down Akubra House | Alexander Symes Architect
© Barton Taylor
Upside Down Akubra House | Alexander Symes Architect
© Barton Taylor
Upside Down Akubra House | Alexander Symes Architect
© Barton Taylor

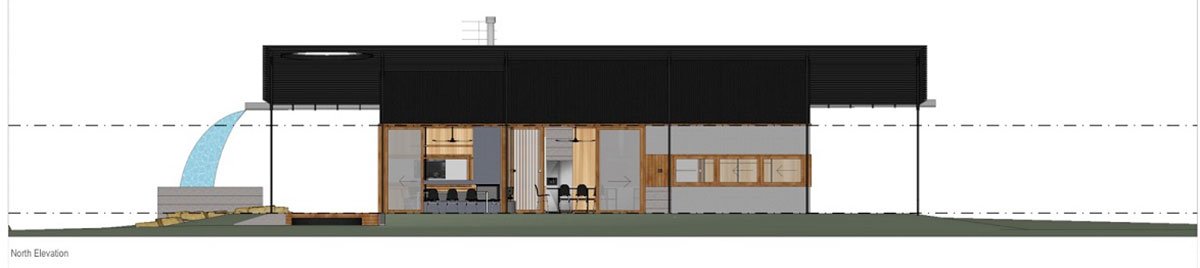

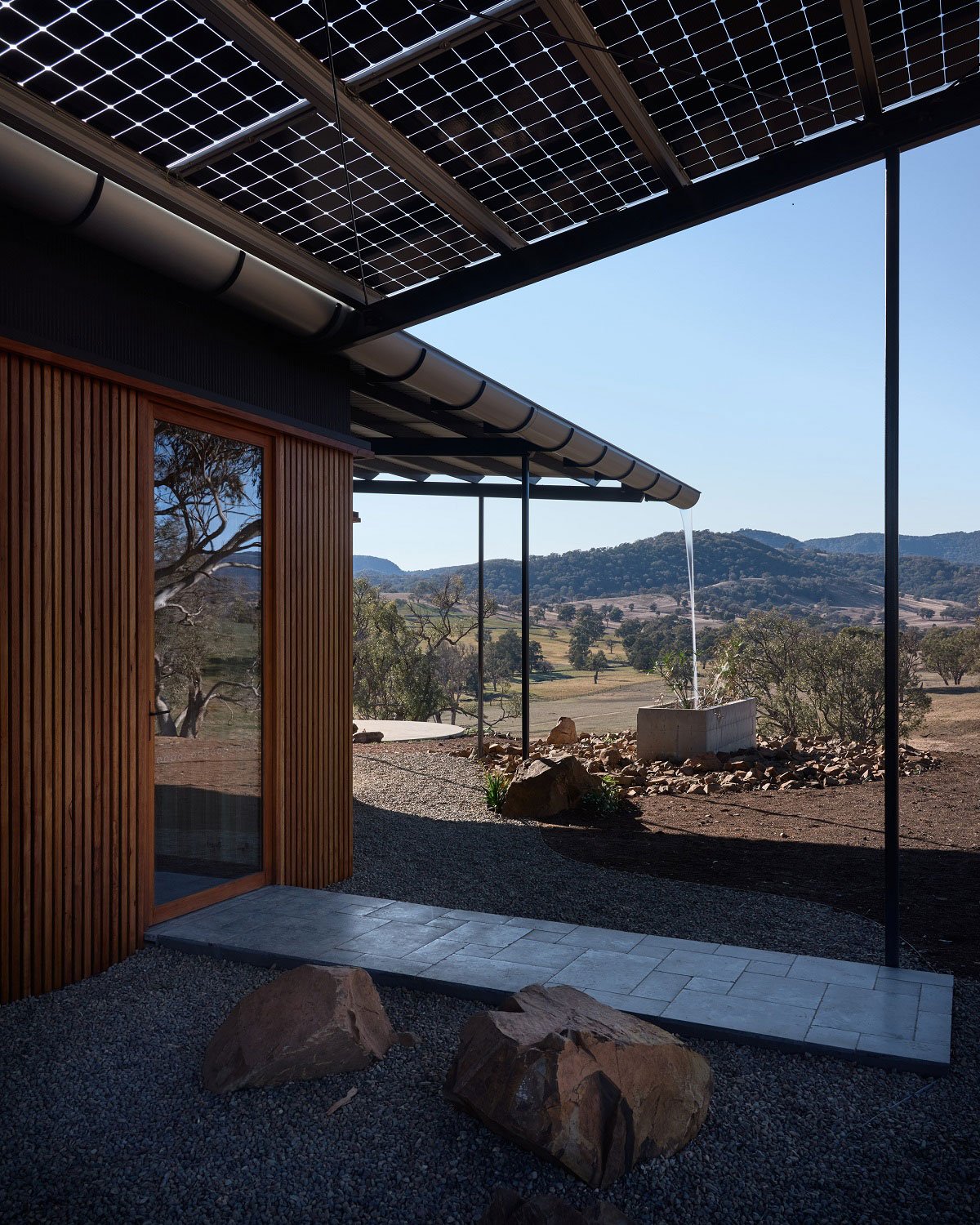

The entry to the home is also the introduction to the single 450mm diameter gutter that collects all rainwater off the 560m2 roof. This gutter, channels all the rainwater from the roof to a single point from which the water free falls like a waterfall into to a simple off-form concrete trough, which acts as a filtration sump which feeds the 107,000L rainwater storage tank.

Upside Down Akubra House | Alexander Symes Architect
© Barton Taylor
Upside Down Akubra House | Alexander Symes Architect
© Barton Taylor
Upside Down Akubra House | Alexander Symes Architect
© Barton Taylor
