Résonnances | Architecture Thesis

Information

  • Project Name: Résonnances
  • Student Name: Corentin Morgan de Rivery, Clément Tardivet
  • Awards: Nominated for the Lyon Young Architecture Awards 2020 | Nominated for the 2021 Hunter Douglas Award
  • Softwares/Plugins: AutoCAD , Adobe Indesign , Adobe Photoshop , Adobe Illustrator , Sketchup , V-Ray
More Info Less Info

Excerpt: Résonnances’ is an architecture thesis by Corentin Morgan de Rivery and Clément Tardivet from ‘Ecole Nationale Supérieure d’Architecture de Lyon – ENSAL’, Université de Lyon, that explores the verticalization of dwellings, aiming to enhance living and housing scenarios in an informal settlement (slum) of Jardim Icaraí favela in the Brasilândia district of São Paulo, Brazil. The project entails putting new ideas into action, planning for urban expansion and more open spaces, rearranging existing alleyways, and constructing new road infrastructure to connect the favela to the community.

Introduction: Résonnances is an academic project located in the Jardim Icaraí favela (a slum) in the Brasilândia district of São Paulo, Brazil. It was decided to focus on the current and future informal and incremental housing architecture in this favela to develop a final year project thesis after spending a year on site to conduct a site analysis with its residents.

Résonnances is a three-pronged project to improve living and housing conditions in a complex informal settlement:

A ‘Visible’ vertical project, to welcome the favela’s most vulnerable residents and newcomers, situated in the area with the worst conditions (hazardous terrain and unstable houses).

A ‘Discreet’ horizontal project, a prototype designed for a specific alleyway but adaptable to others. In order to gradually mitigate the living standards of the favelados, architecture that is anchored in its environment is vital.

An ‘Urban’ project that entails putting new ideas into action, planning for urban expansion and more open spaces, rearranging existing alleyways, and constructing new road infrastructure to connect the favela to the community.

Save

Site Context

Résonnances | Architecture Thesis

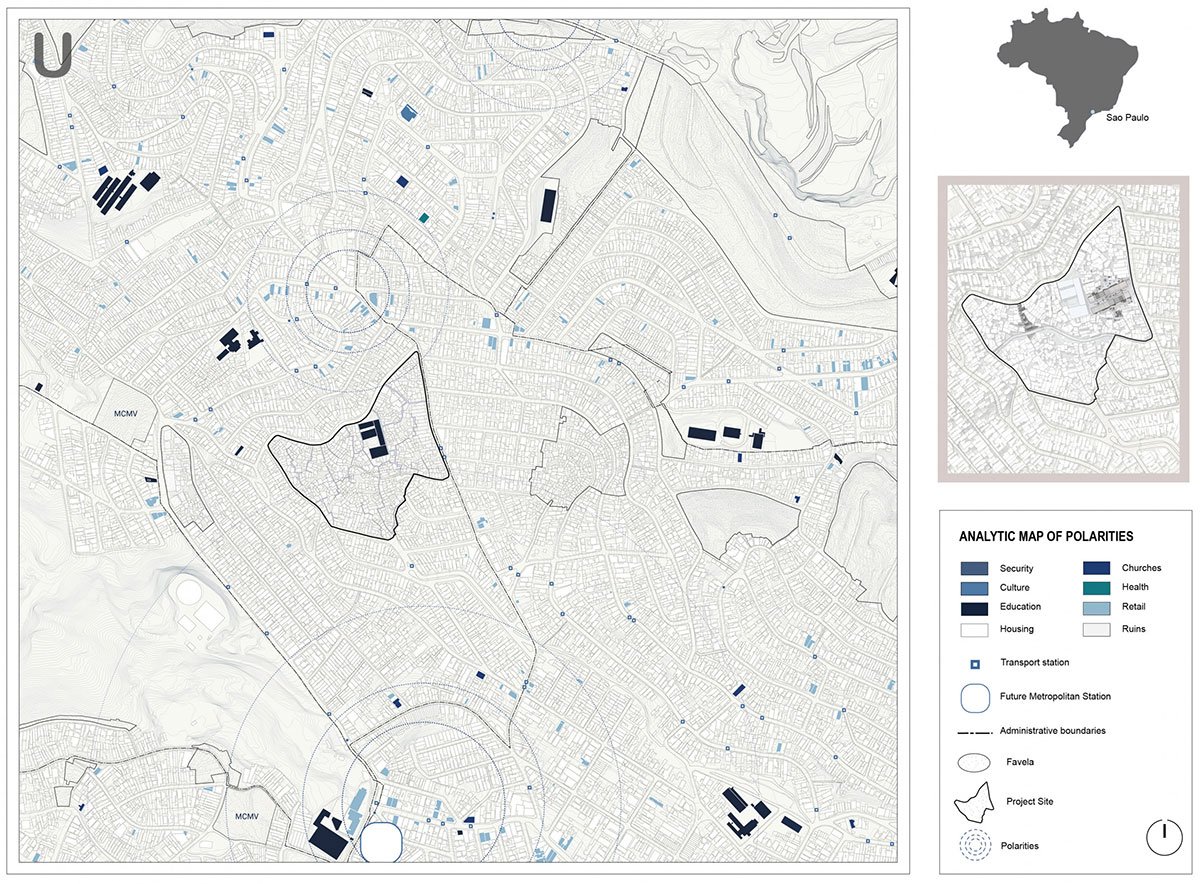

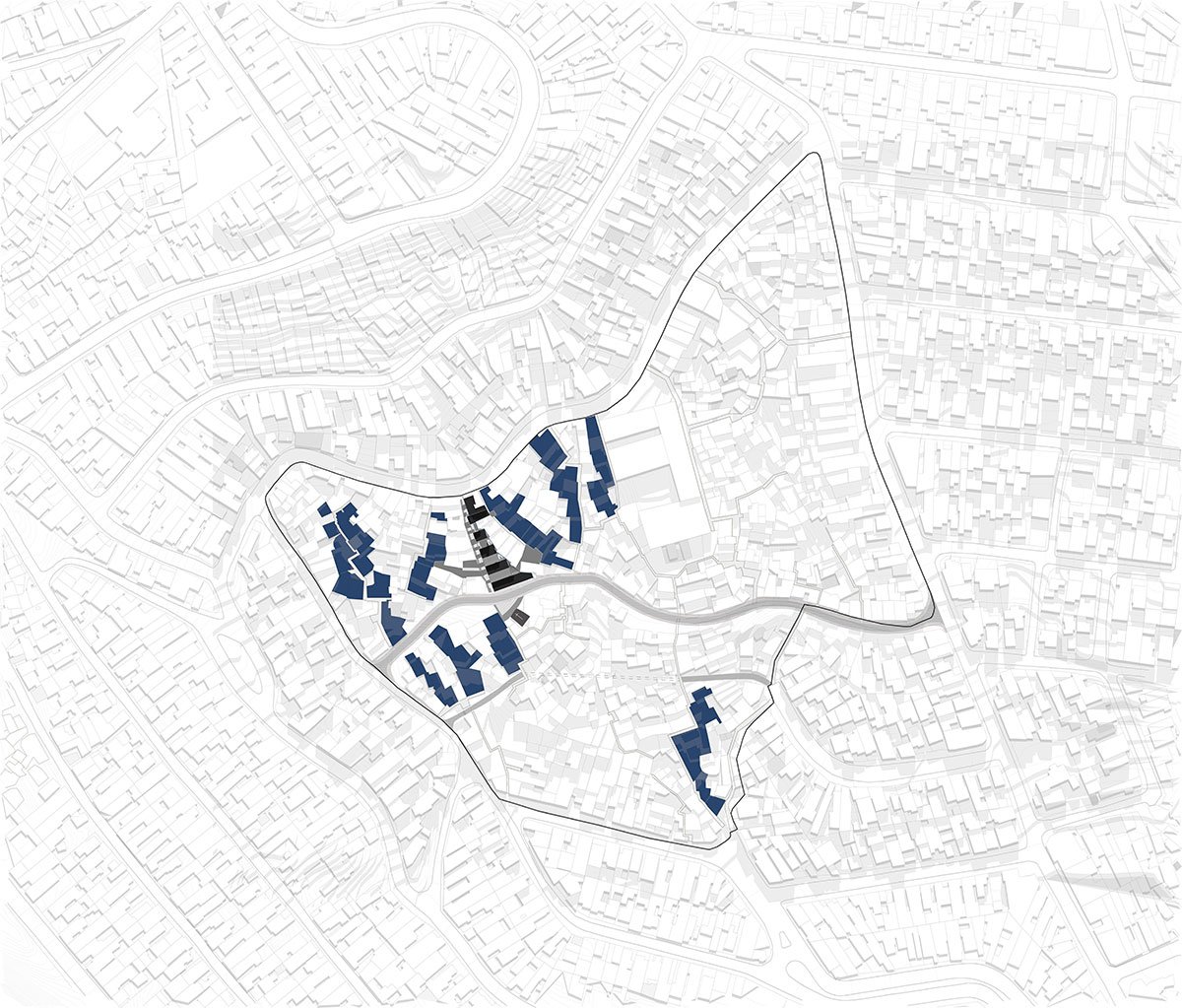

SITE PLAN. 1:2000. Urban analysis / Polarities

Brazil has some extremely unique traits when it comes to the way people live there: formal and informal coexist to build the city. Particularly in the periphery, where favelas grow, spread, and generalise, new ways of living are emerging. The Brazilian favela (slum) is constantly changing as a result of numerous waves of migration brought on primarily by the industrialisation of cities and the countryside. Today, these areas have seen numerous changes, as evidenced by precarious housing situations, lack of open space, and lack of public services. As the horizontal spread becomes saturated, the favela becomes vertical and is accompanied by an informal economy. There is a systematic appropriation of vacuity.

Résonnances | Architecture Thesis

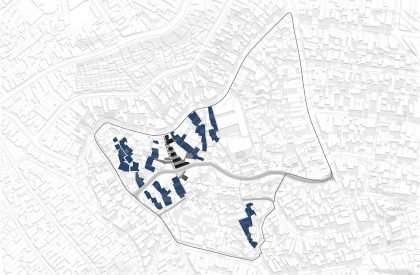

Site Plan

The project is located in the Jardim Icarai favela in Sao Paulo, Brazil’s Brasilândia neighbourhood. An evaluation of the site was conducted with the locals over the course of a year, and their needs and worries regarding their unique urbanity were assessed.

Résonnances | Architecture Thesis

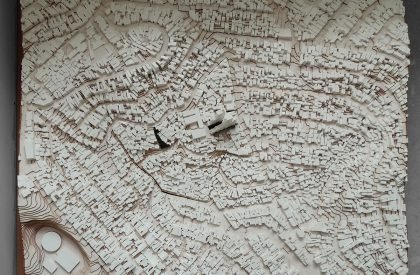

Site Model

The informal and incremental housing design that exists today and will exist in the future in this slum was chosen as the focus of the final project thesis.

Design Process

Résonnances | Architecture Thesis

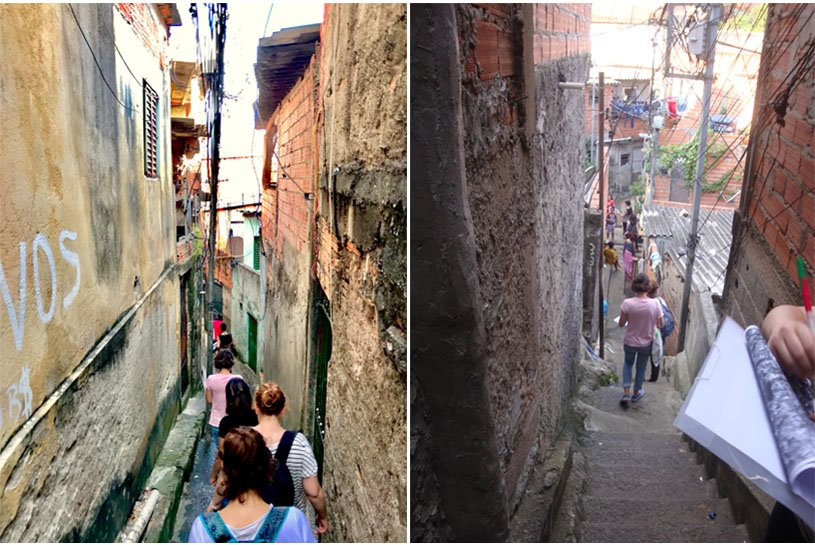

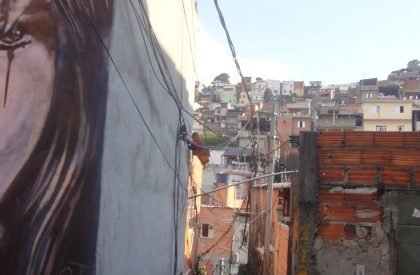

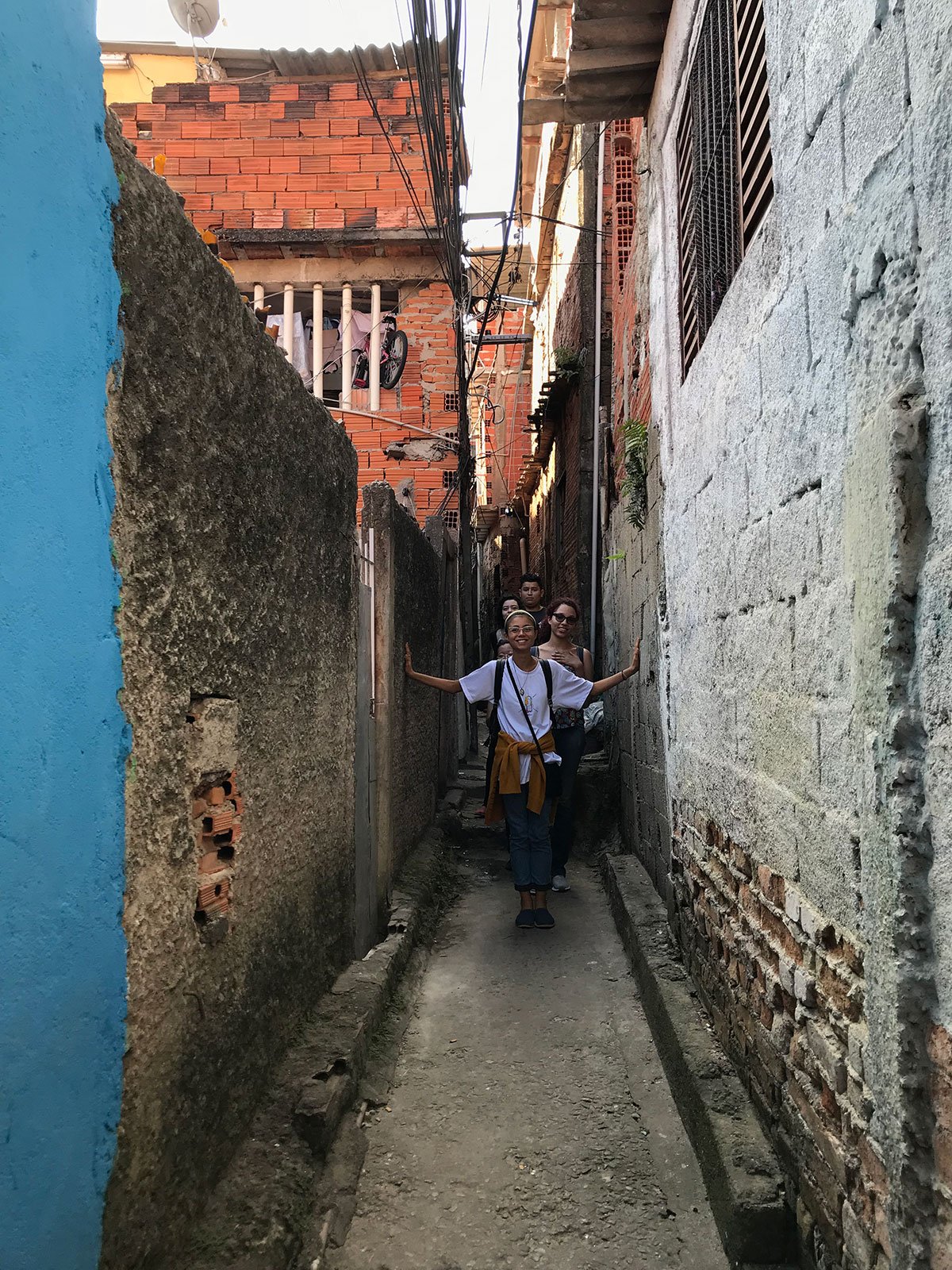

Site Images

In order to understand the site and its issues, a full academic year was dedicated for visit and cartography of the favela with its inhabitants. This interaction with the inhabitants helped in understanding the needs and concerns about their particular urbanity.

The key focus of the architecture thesis was to come up with an urban planning and architecture project to create a useful substitute for substandard housing for the favela. Incorporating an urban plan, a project was created that was both vertical and horizontal. The urban scale was the focus for the first four months, and the architectural definition for the last six.

Résonnances | Architecture Thesis

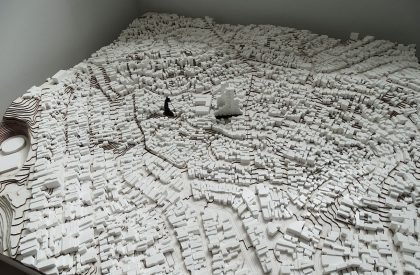

Site Model

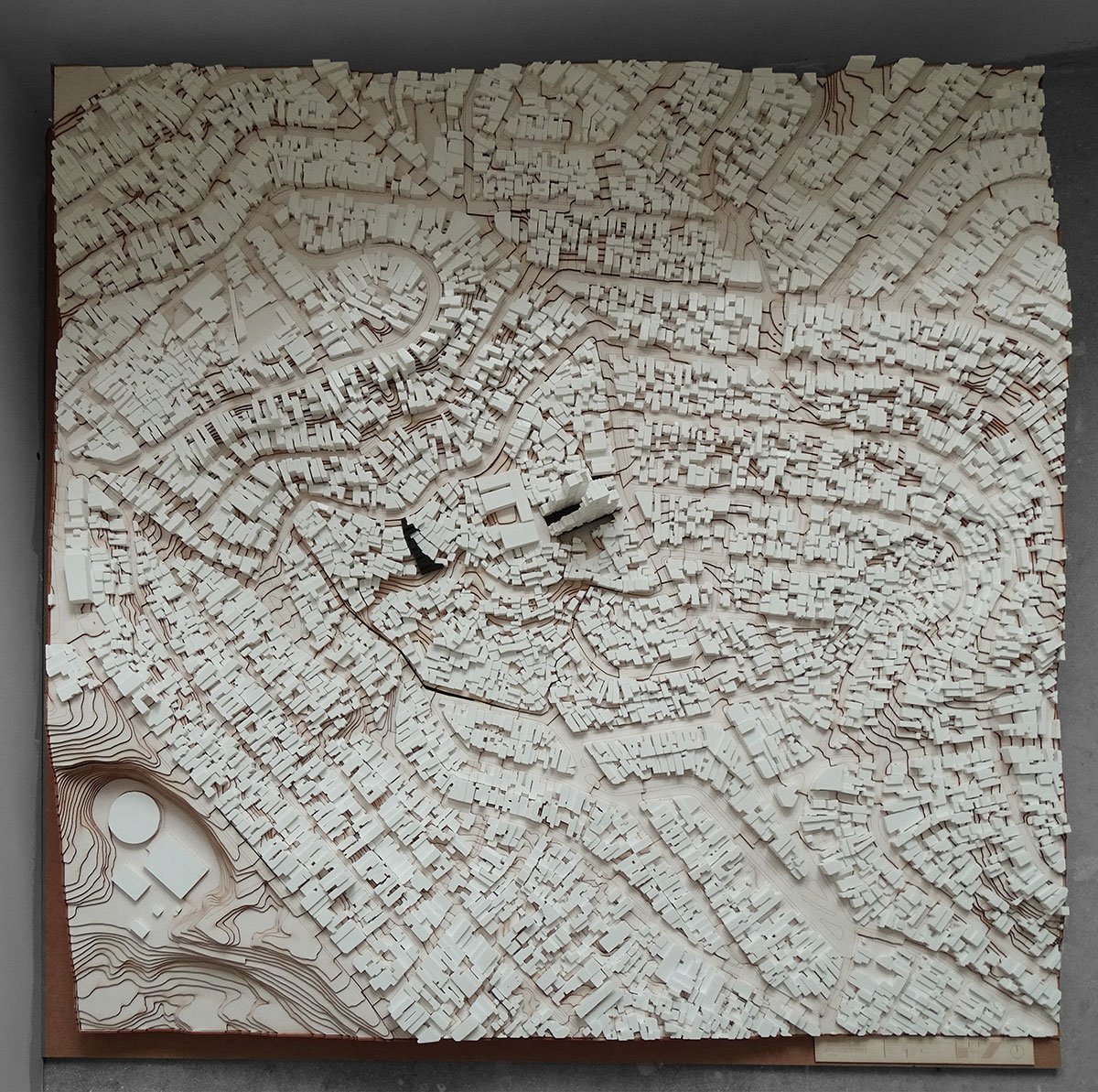

A 1:1000 scale site model with approximately 6,000 buildings was 3D printed and carved out of wood. In parallel, technical drawings  were produced, and the program’s requirements were determined based on the site assessment. In the end all the material was compiled in the form of a project brief

Final Outcome

Résonnances | Architecture Thesis

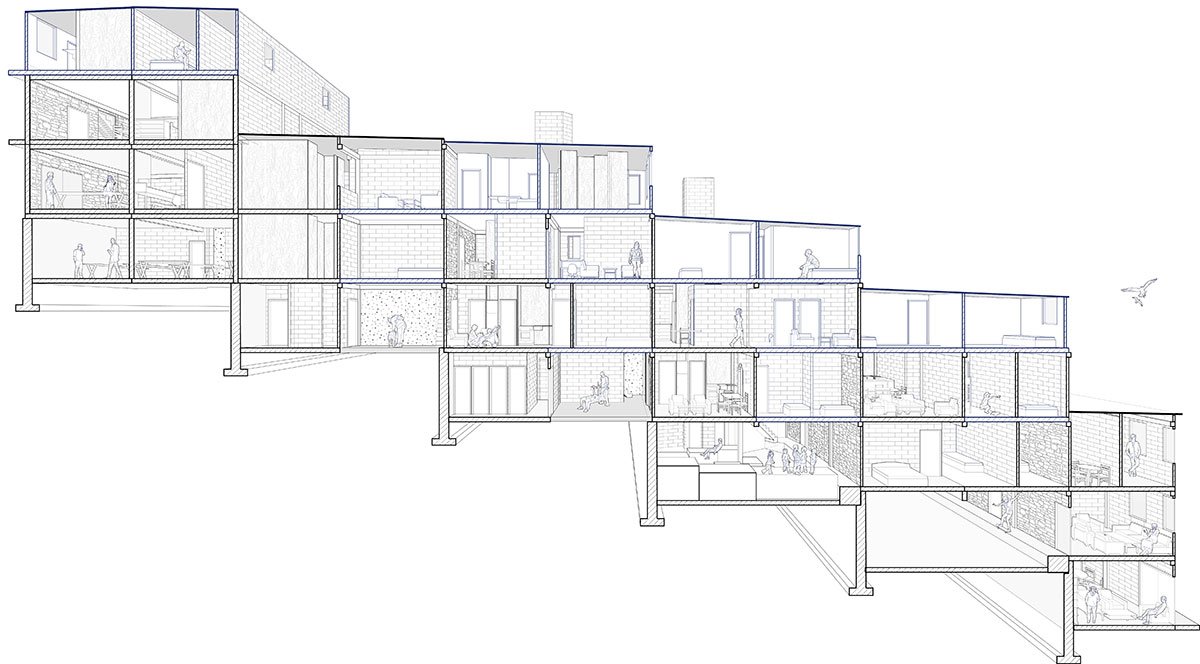

Horizontal Block – Section – Initial Phase
Résonnances | Architecture Thesis

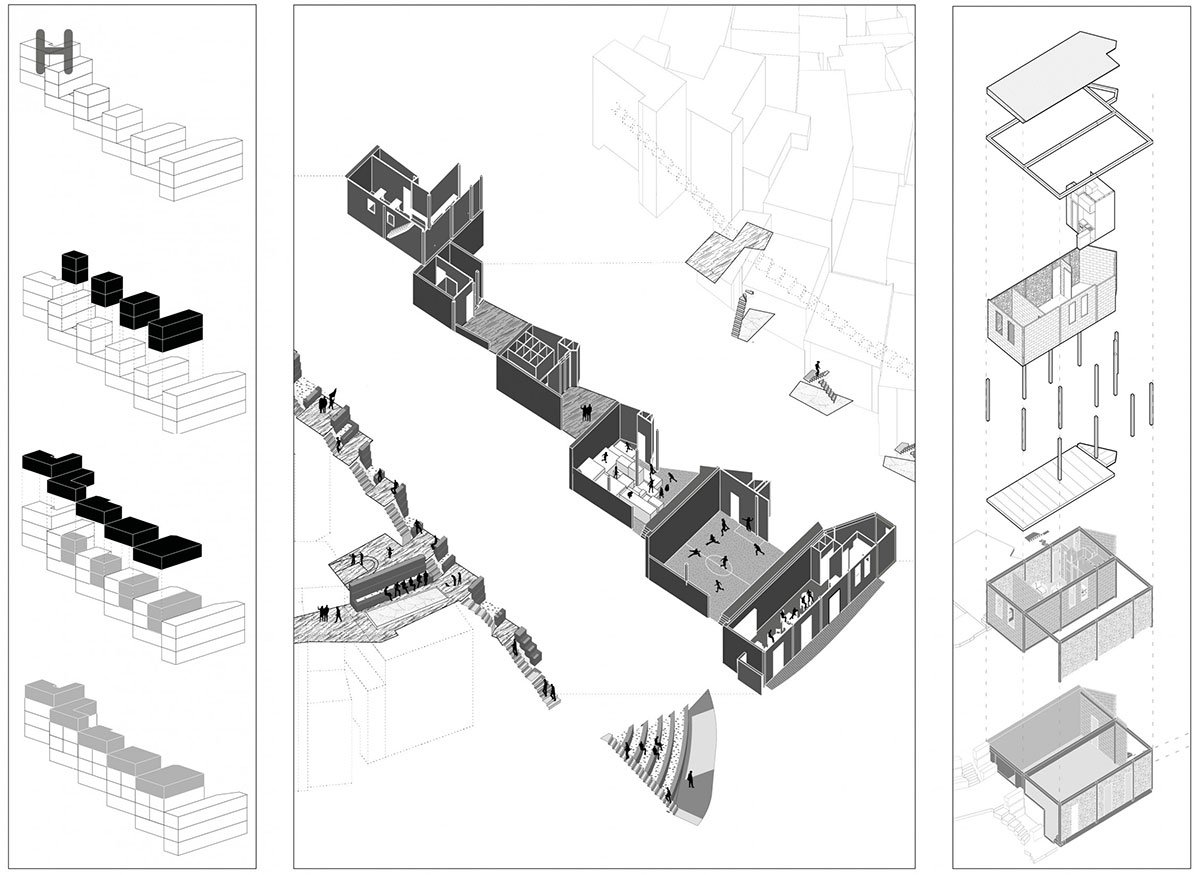

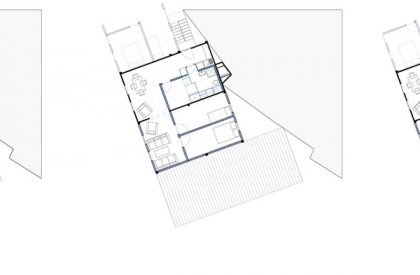

Horizontal Block – Axonometrics
Résonnances | Architecture Thesis

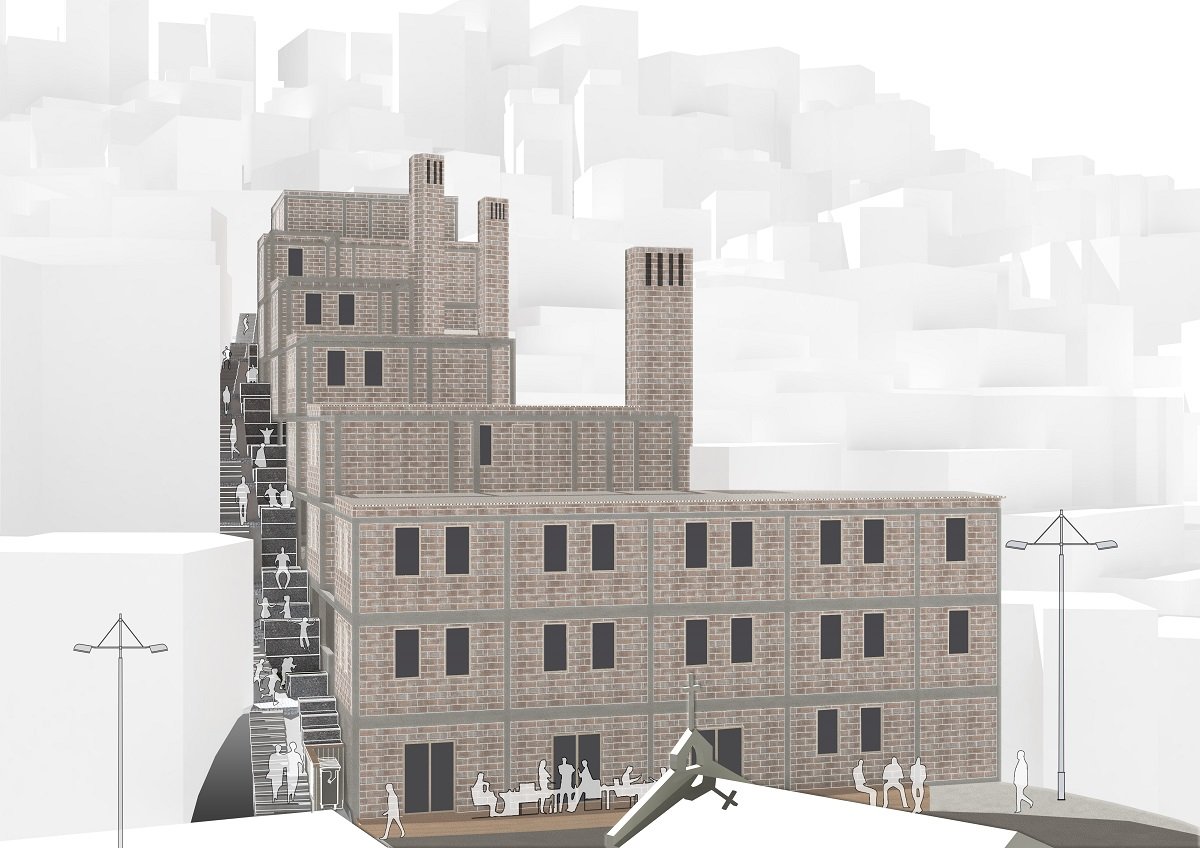

Horizontal Block – Rendered Image

The horizontal project is engulfed in a dense and complex urban tissue. It connects the street to the favela church and questions its surrounding landscape. Here, the way of thinking of free spaces is expressed through a dialogue between the alleyway and the building. This architectural object does not impose itself as a barrier, it generates links between the different opportunities offered by the context.

Résonnances | Architecture Thesis

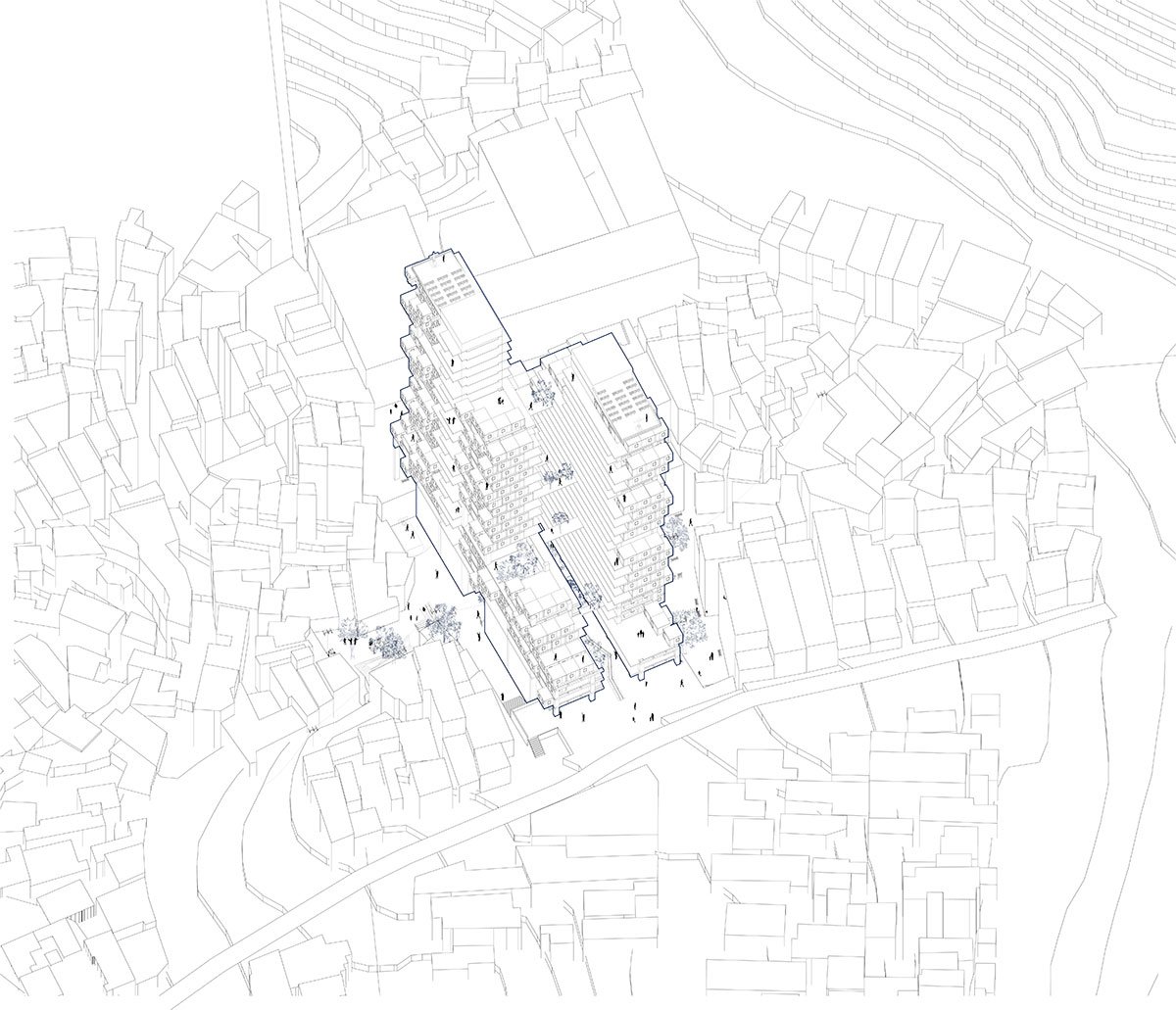

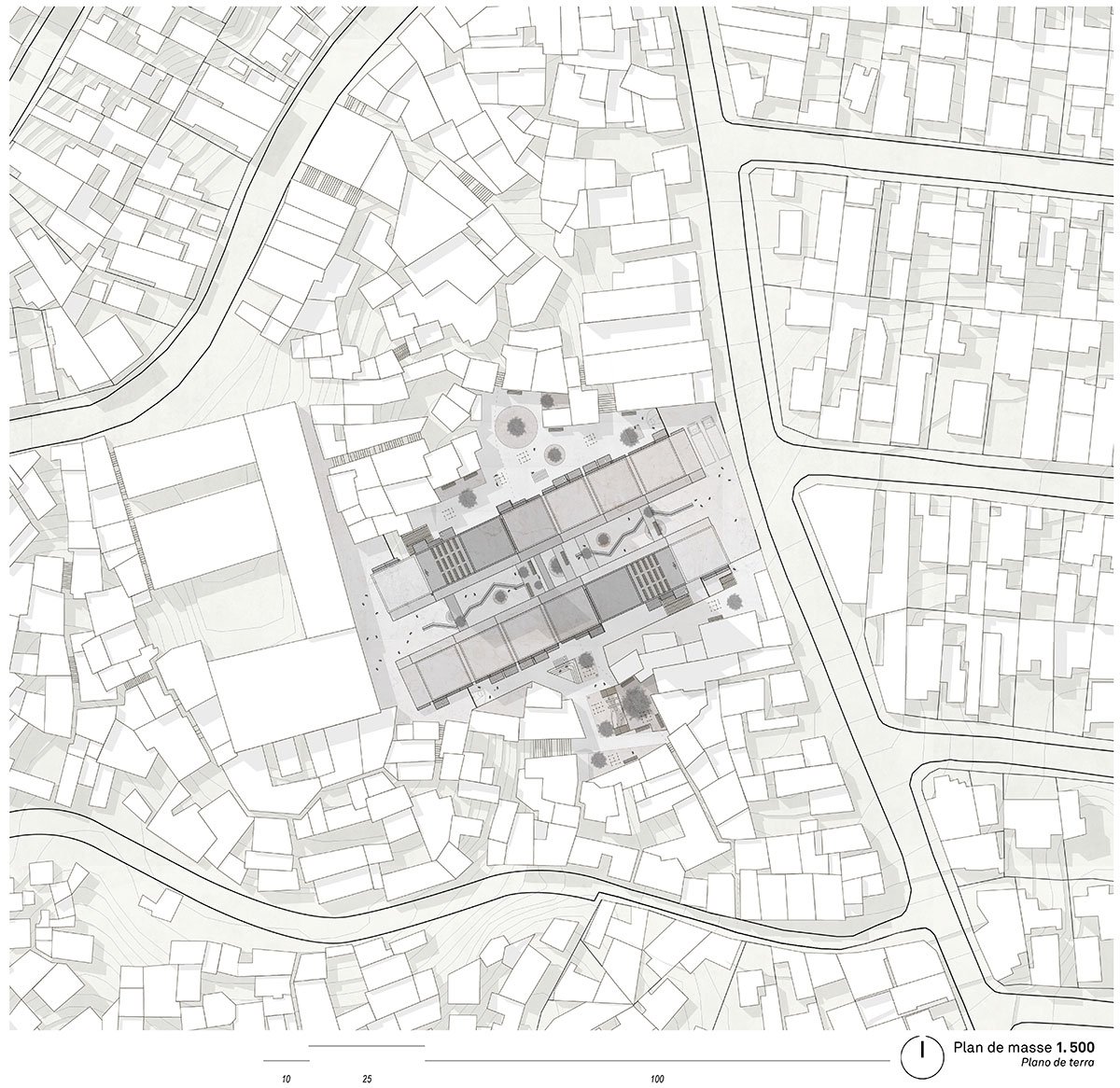

Vertical Block – Site Plan
Résonnances | Architecture Thesis
Vertical Block – Longitudinal Section
Résonnances | Architecture Thesis

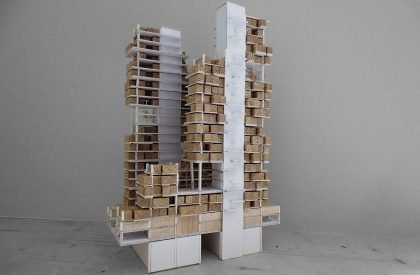

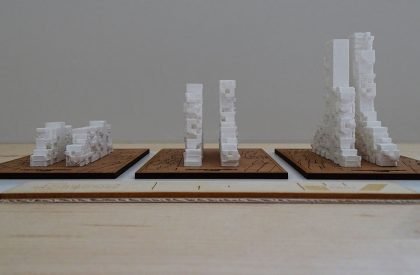

Vertical Block – Model

The decision to go vertical was made after a context analysis revealed that the floor space is saturated and the horizontal spread is at its maximum. The residents of the favela chose to have their dwellings stacked vertically because they were reluctant to leave. In an effort to locate space for construction, the favelas are seeking new and higher heights. When the ground is full, there are various possibilities visible in the sky. This vertical project foresees the excessive verticalization that will occur with unstable housing.

Résonnances | Architecture Thesis

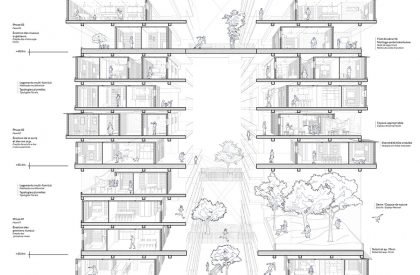

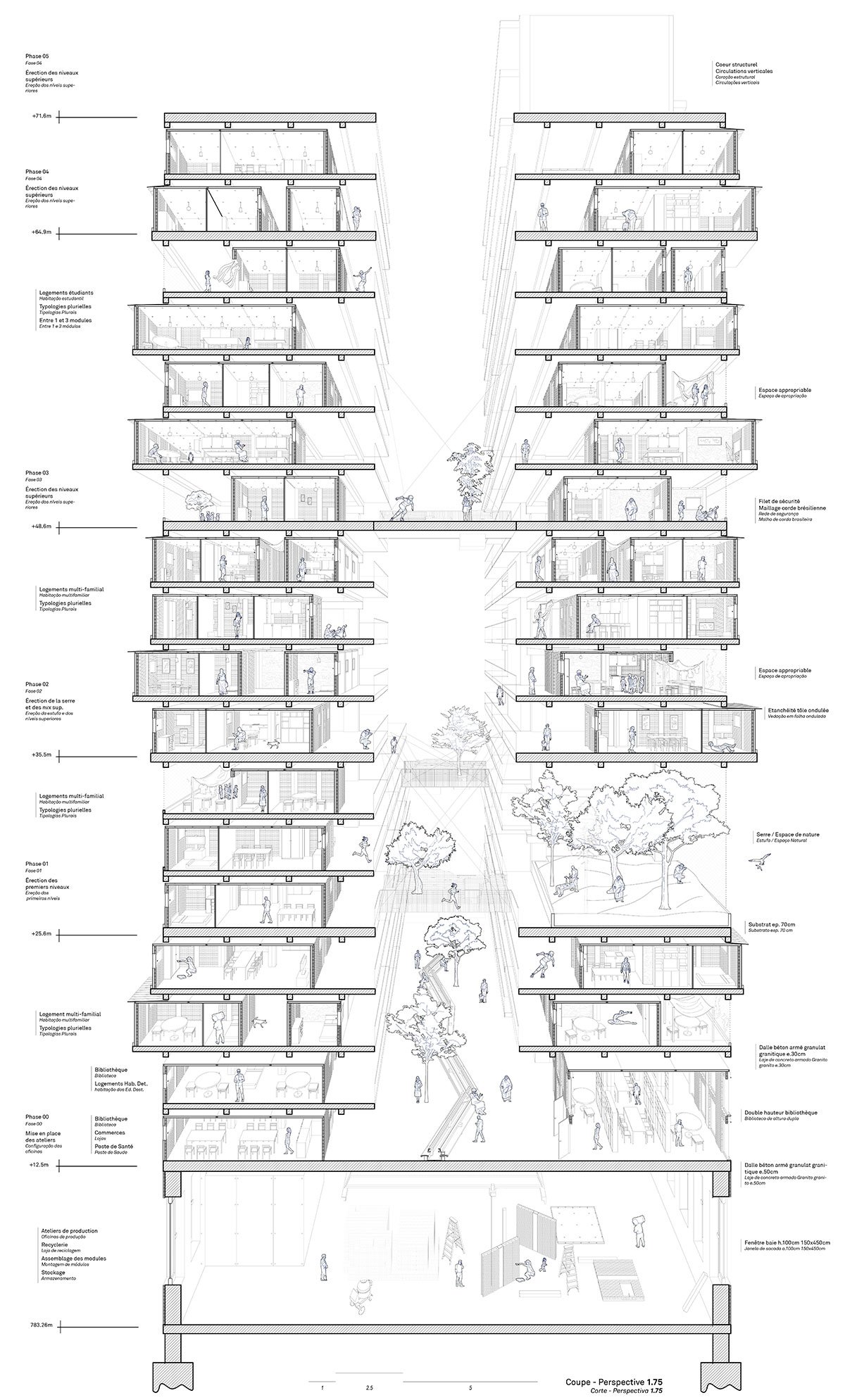

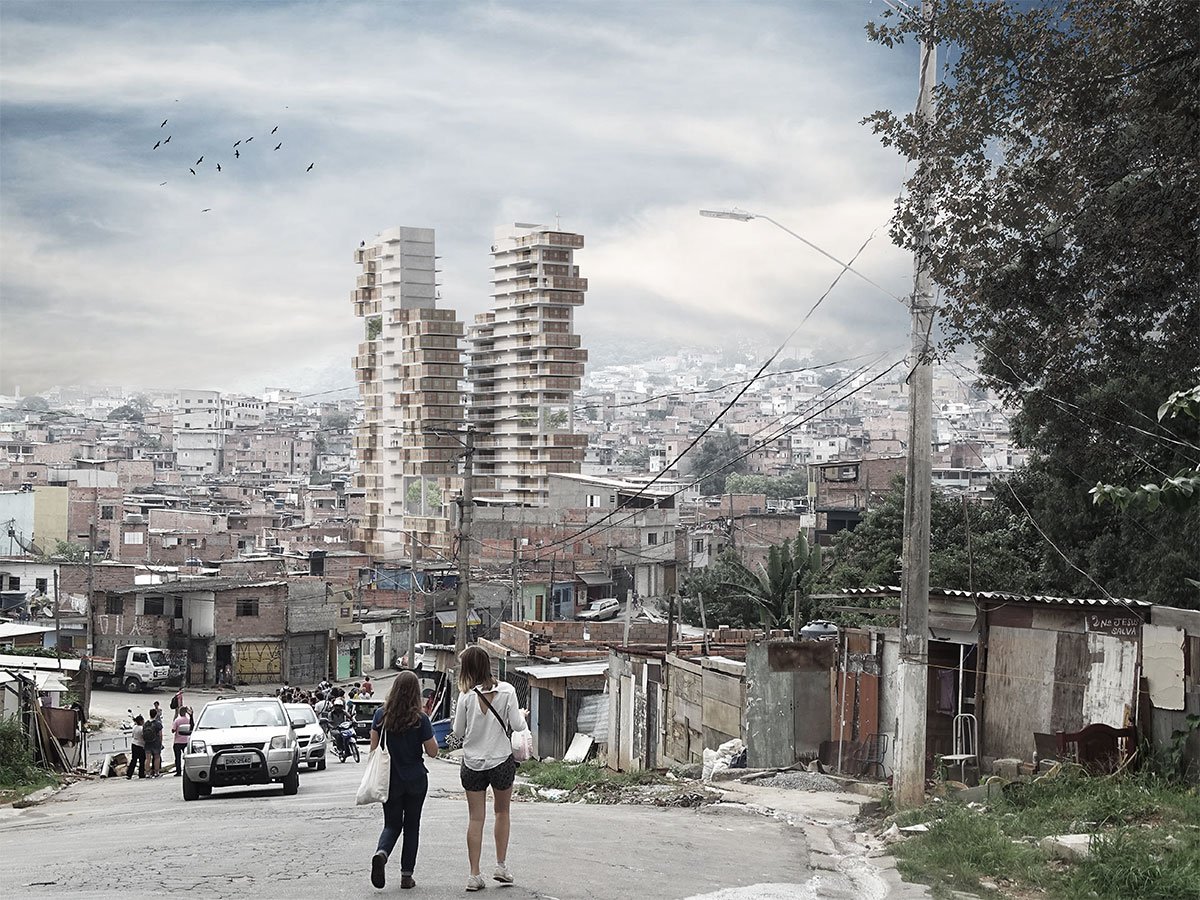

Vertical Block – Detailed Transversal Section and Vertical Block – Rendered Image

This architecture thesis serves as a token of recognition for an ongoing but obscure way of life. The designers must first become fully immersed in the slum before creating an emergence. They need to attentively hear what the favelados have to say while also making sure they are heard.

[This Academic Project has been published with text submitted by the student]
